The ADXL204 is a high precision, low power, complete dual axis accelerometer with signal-conditioned voltage outputs, all on a single monolithic IC. Like the ADXL203, it measures acceleration with a full-scale range of ±1.7 g; however, the ADXL204 is tested and specified for 3.3 V supply voltage, whereas the ADXL203 is tested and specified at 5 V. Both parts function well over a wide 3 V to 6 V operating voltage range. The ADXL204 can measure both dynamic acceleration (for example, vibration) and static acceleration (for example, gravity).
FEATURES
High performance, dual-axis accelerometer on a single IC chip
Specified at VS = 3.3 V

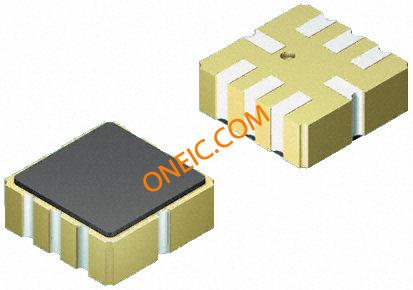

5 mm × 5 mm × 2 mm LCC package
Better than 2 mg resolution at 60 Hz
Low power: 500 μA at VS = 3.3 V (typical)
High zero g bias stability
High sensitivity accuracy
–40°C to +125°C temperature range
X-axis and Y-axis aligned to within 0.1° (typical)
BW adjustment with a single capacitor
Single-supply operation
3500 g shock survival
RoHS compliant
Compatible with Sn/Pb- and Pb-free solder processes
APPLICATIONS
Vehicle dynamic control (VDC)/electronic stability program (ESP) systems
