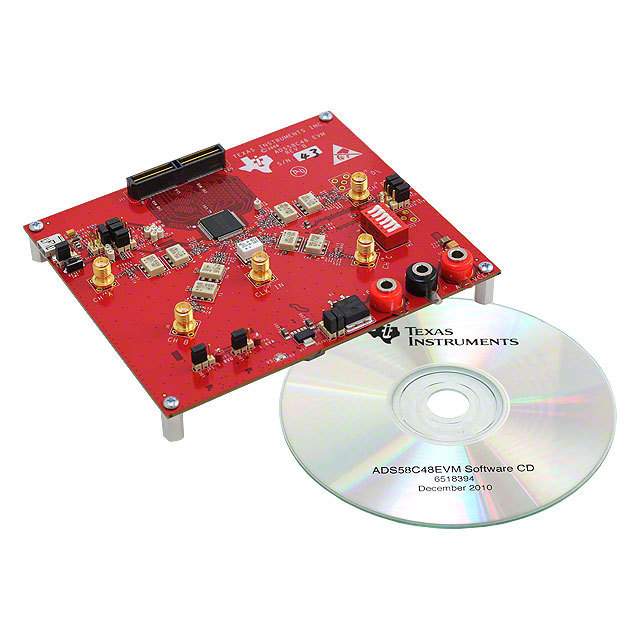

The ADS58C48EVM is a circuit board that allows designers to evaluate the performance of Texas Instruments" ADS58C48 device, a low power, four channel 11bit 200MSPS analog to digital converter featuring SNRBoost technology. The ADC evaluation module features a DDR LVDS data output which is compatible with TSW1200 data capture card for rapid evaluation. The evaluation module provides a flexible environment to test the ADS58C48 under a variety of clock, input and supply conditions. The evaluation module is designed with back to back wide bandwidth baluns on each of the converter"s four inputs. This enables a wide sweep of single ended input signals to be input into any channel of the ADC. The EVM is also compatible with the FMC-ADC-Adapter and the HSMC-ADC-Bridge EVMs. The adapter and bridge cards enable the ADS58C48 to mate with FMC and HSMC connectors. This enables rapid system level software prototyping without having to develop a custom prototyping board.
USB input for SNRBoost and other SPI register controls
Transformer coupled analog input path
Transformer coupled clock input path
Direct connection to TSW1200EVM high speed ADC data capture card
Compatible with FMC-ADC-ADAPTER and HSMC-ADC-BRIDGE for direct connection to FPGA development kits
Separate analog and digital supply connections or single 5V global supply
