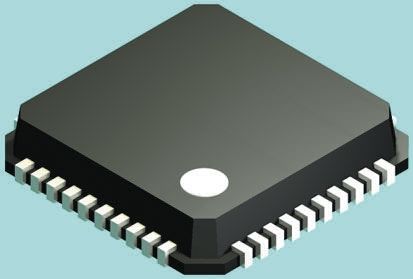

The ADAS3023BCPZ is a 16-bit complete simultaneous sampling successive approximation-based analog-to-digital Data Acquisition System. This system is capable of simultaneously sampling up to 125kSPS for 8-channel manufactured on the Analog Devices Inc, proprietary iCMOS® high voltage industrial process technology. The converter integrates 8-channel of low leakage track and hold, a programmable gain instrumentation amplifier stage with a high common-mode rejection offering four differential input ranges, a precision low drift 4.096V reference and buffer and a 16-bit charge redistribution successive approximation register analog-to-digital converter. It can resolve differential input ranges of up to ±20.48V when using ±15V supplies. It simplifies design challenges by eliminating signal buffering, level shifting, amplification and attenuation, common-mode rejection, settling time or any of the other analog signal conditioning challenges yet allows for smaller form factor.
Ease-of-use
High impedance 8-channel input - >500MR
High input common-mode rejection - 95dB
User-programmable input ranges
No latency/pipeline delay
Serial 4-wire 1.8 to 5V SPI/SPORT-compatible interface
