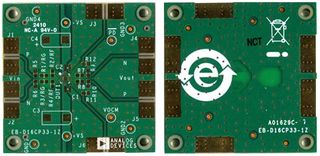

The ADA4927-1YCP-EBZ is an evaluation board which are designed to help users to evaluate the ADA4927-1 device. The evaluation board is a bare board. There are no components or amplifiers soldered to the board. These parts must be obtained separately. The unpopulated board enables users to quickly customise and prototype a variety of op amp circuits, which minimizes risk and reduces time to market. The ADA4927 is a low noise, ultralow distortion, high speed, current feedback differential amplifier that is an ideal choice for driving high performance ADC"s with resolutions up to 16 bits from dc to 100MHz. The output common mode level can easily be matched to the required ADC input common mode levels. The internal common mode feedback loop provides exceptional output balance and suppression of even order distortion products.
Extremely low harmonic distortion
Better distortion at higher gains than VF amplifiers
Low input voltage noise of 1.4nV/√Hz
Low input offset voltage of 0.3mV typical
Externally adjustable gain
Stability and bandwidth controlled by feedback resistor
