The ADA4622-1/ADA4622-2 are the next generation of the AD820 and the AD822 single-supply, rail-to-rail output (RRO), precision junction field effect transistors (JFET) input op amps. The ADA4622-1/ADA4622-2 include many improvements that make them desirable as an upgrade without compromising the flexibility and ease of use that makes the AD820 and the AD822 useful for a wide variety of applications.
The input voltage range includes the negative supply and the output swings rail-to-rail. Input EMI filters increase the signal robustness in the face of closely located switching noise sources.
The speed, in terms of bandwidth and slew rate, increases along with a strong output drive to improve settling time performance and enable the devices to drive the inputs of modern single-ended, successive approximation register (SAR) analog-to-digital converters (ADCs).
Voltage noise is reduced; while keeping the supply current the same as the AD820 and the AD822, broadband noise is reduced by 25%, and 1/f is reduced by half. DC precision in the ADA4622-1/ADA4622-2 improved from the AD820 and the AD822 with half the offset and a maximum thermal drift specification added to the ADA4622-1/ADA4622-2. The common-mode rejection ratio (CMRR) is improved from the AD820 and the AD822 to make the ADA4622-1/ADA4622-2 more suitable when used in noninverting gain and difference amplifier configurations.

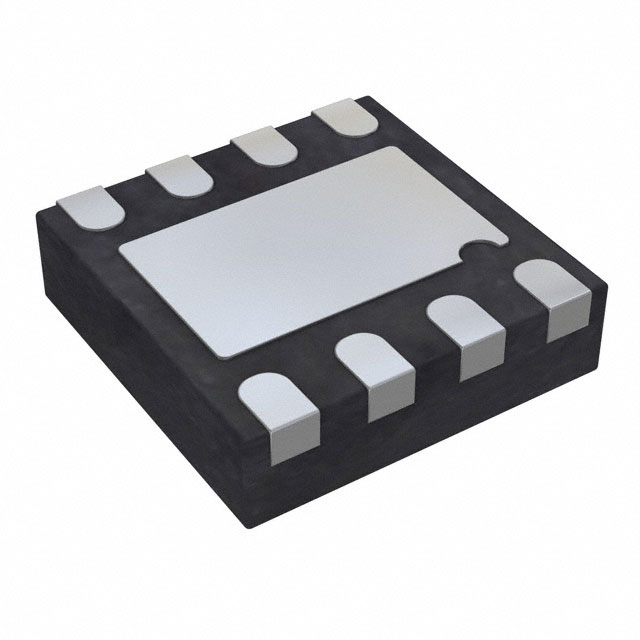

The ADA4622-1/ADA4622-2 are specified for operation over the extended industrial temperature range of −40°C to +125°C and operates from 5 V to 30 V with specifications at +5 V, ±5 V, and ±15 V. The ADA4622-1 is available in a 5-lead SOT-23 package and an 8-lead LFCSP package, and the ADA4622-2 is available in an 8-lead SOIC package, an 8-lead MSOP package, and an 8-lead LFCSP package.
Applications
High output impedance sensor interfaces
Photodiode sensor interfaces
Transimpedance amplifiers
ADC drivers
Precision filters and signal conditioning
### Features and Benefits
Next generation of the AD820/AD822
Wide gain bandwidth product: 8 MHz typical
High slew rate: +23 V/μs/−18 V/μs typical
Low input bias current: ±10 pA maximum at TA = 25°C
Low offset voltage
A grade: ±0.8 mV maximum at TA = 25°C
B grade: ±0.35 mV maximum at TA = 25°C
Low offset voltage drift
A grade: ±2 μV/°C typical, ±15 μV/°C maximum
B grade: ±2 μV/°C typical, ±5 μV/°C maximum
Input voltage range includes Pin V−
Rail-to-rail output
Electromagnetic interference rejection ratio (EMIRR)
