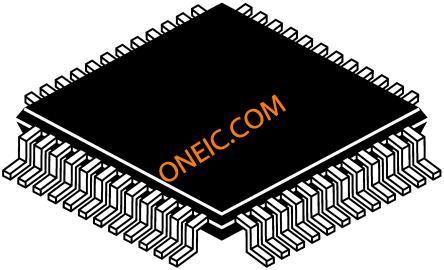

The AD9859YSVZ is a 1.8V CMOS Direct Digital Synthesizer features a 10-bit DAC operating at up to 400MSPS. The AD9859 uses advanced DDS technology, coupled with an internal high speed, high performance DAC to form a digitally programmable, complete high frequency synthesizer capable of generating a frequency-agile analogue output sinusoidal waveform at up to 200MHz. It is designed to provide fast frequency hopping and fine tuning resolution (32-bit frequency tuning word). The frequency tuning and control words are loaded into the AD9859 via a serial I/O port. AD9859 is ideal to use in agile LO frequency synthesis, programmable clock generators as well as test and measurement equipment and commercial and amateur radio exciter.
400MSPS Internal clock speed
Integrated 10-bit DAC
32-bit tuning word
* Excellent dynamic performance
Serial I/O control
Software and hardware controlled power-down
Support for 5V input levels on most digital inputs
PLL REFCLK multiplier (4x to 20x)
Internal oscillator, can be driven by a single crystal
Phase modulation capability
Multichip synchronization
ESD sensitive device, take proper precaution while handling the device.
