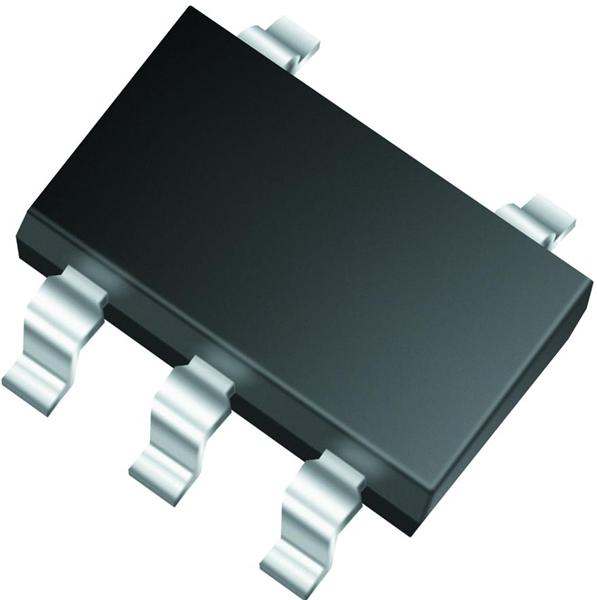

The AD8541ARTZ is a general purpose CMOS Rail-to-Rail Amplifier featuring very low supply current and 1MHz bandwidth. All are guaranteed to operate from a 2.7V single supply as well as a 5V supply. It provides 1MHz bandwidth at a low current consumption of 45µA per amplifier. Very low input bias currents enable this to be used for integrators, photodiode amplifiers, piezoelectric sensors and other applications with high source impedance. Rail-to-rail inputs and outputs are useful to designers buffering ASICs in single-supply systems. It is optimized to maintain high gains at lower supply voltages, making them useful for active filters and gain stages.
45µA/amplifier Low supply current
No phase reversal
4pA Low input currents
Unity gain stable
Rail-to-rail input and output
Product features patented or proprietary protection circuitry, damage may occur on devices subjected to high energy ESD.
