AD848JRADI18V; 1.1W; high speed, low powered monolithic Op Amp. For cable drivers, 8 and 10Bit data acquisition systems, video and R amplification, signal generators
￥
32.90

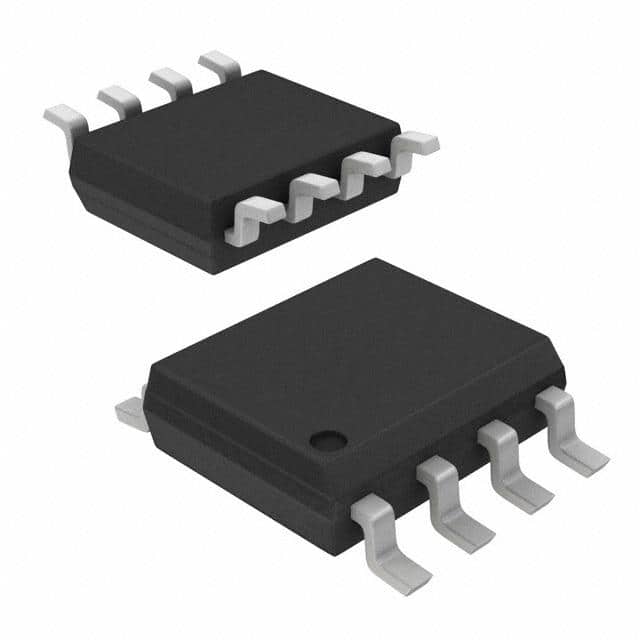

显示的图像仅供参考，应从产品数据表中获得准确的规格。
AD848JRADI
制造商:
ADI
制造商型号#:
AD848JR
百芯编号#:
CM64871996
价格(CNY):
￥
32.90
百芯库存:
4,120
个
库存地点:
可供应量:
2,927
个在库
此为供应商库存，需要与销售确认
产品类别:
缓冲,放大器,芯片
产品描述:
18V; 1.1W; high speed, low powered monolithic Op Amp. For cable drivers, 8 and 10Bit data acquisition systems, video and R amplification, signal generators
The AD848 and AD849 are high speed, low power monolithic operational amplifiers. The AD848 is internally compensated so that it is stable for closed loop gains of 5 or greater. The AD849 is fully decompensated and is stable at gains greater than 24. The AD848 and AD849 achieve their combination of fast ac and good dc performance by utilizing Analog Devices’ junction isolated complementary bipolar (CB) process. This process enables these op amps to achieve their high speed while only requiring 4.8 mA of current from the power supplies.
FEATURES
725 MHz Gain Bandwidth – AD849
175 MHz Gain Bandwidth – AD848
4.8 mA Supply Current
300 V/ms Slew Rate
80 ns Settling Time to 0.1% for a 10 V Step – AD849
Differential Gain: AD848 = 0.07%, AD849 = 0.08%
Differential Phase: AD848 = 0.088, AD849 = 0.048
Drives Capacitive Loads
DC PERFORMANCE
3 nV/√Hz Input Voltage Noise – AD849
85 V/mV Open Loop Gain into a 1 kV Load – AD849
1 mV max Input Offset Voltage
Performance Specified for 65 V and 615 V Operation
Available in Plastic, Hermetic Cerdip and Small Outline Packages.
Chips and MIL-STD-883B Parts Available.
Available in Tape and Reel in Accordance with EIA-481A Standard
