The AD841 is a member of the Analog Devices family of wide bandwidth operational amplifiers. This high speed/high precision family includes, among others, the AD840, which is stable at a gain of 10 or greater, and the AD842, which is stable at a gain of two or greater and has 100 mA minimum output current drive. These devices are fabricated using Analog Devices’ junction iso lated complementary bipolar (CB) process. This process permits a combination of dc precision and wideband ac performance previously unobtainable in a monolithic op amp. In addition to its 40 MHz unity-gain bandwidth product, the AD841 offers ex tremely fast settling characteristics, typically settling to within 0.01% of final value in 110 ns for a 10 volt step.
**FEATURES**
**AC PERFORMANCE**
**Unity-Gain Bandwidth: 40 MHz**
**Fast Settling: 110 ns to 0.01%**
**Slew Rate: 300 V/**m**s**
**Full Power Bandwidth: 4.7 MHz for 20 V p-p into a ****500 **V **Load**
**DC PERFORMANCE**
**Input Offset Voltage: 1 mV max**
**Input Voltage Noise: 13 nV/**√**Hz ****typ**
**Open-Loop Gain: 45 V/mV into a 1 k**V **Load**
**Output Current: 50 mA min**
**Supply Current: 12 mA max**
**APPLICATIONS**
**High Speed Signal Conditioning**
**Video and Pulse Amplifiers**
**Data Acquisition Systems**
**Line Drivers**
**Active Filters**

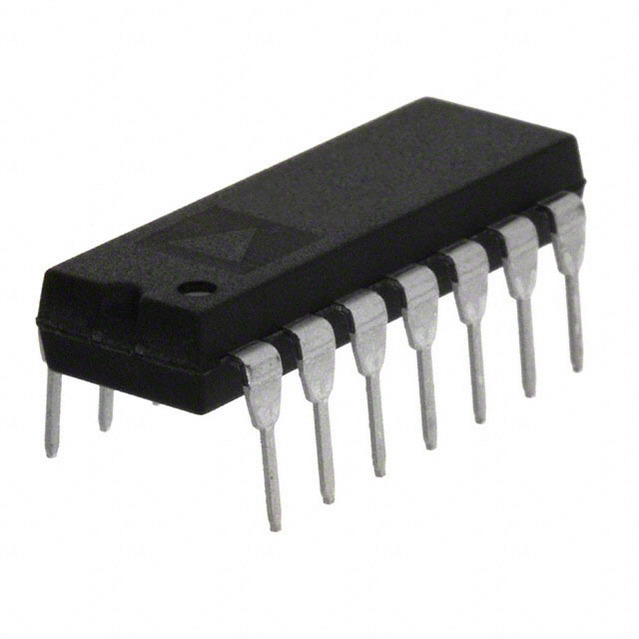

**Available in 14-Pin Plastic DIP Hermetic Cerdip, 12-Pin ****TO-8 Metal Can and 20-Pin LCC Packages**
