AD829AR 库存 & 价格

AD829AR

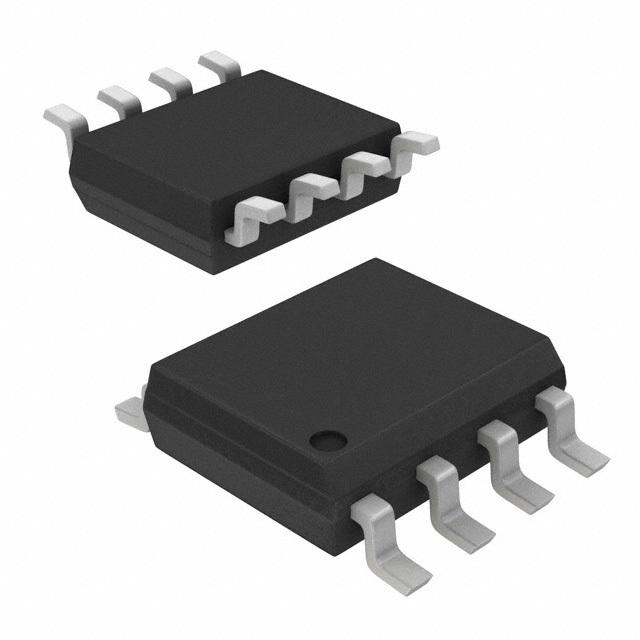

显示的图像仅供参考,应从产品数据表中获得准确的规格。
AD829AR ADI
ADI
  • 制造商:
    ADI
  • 制造商型号#:
    AD829AR
  • 百芯编号#:
    CM13769063
  • 价格(CNY): ¥ 45.34
  • 百芯库存:
    260
  • 可供应量:
    187 个在库
    此为供应商库存,需要与销售确认
  • 产品类别:
    运算,放大器
  • 产品描述:
    OP Amp Single GP ±18V 8Pin SOIC N
  • 文档: 3D模型
AD829AR 购买 AD829AR 库存和价格更新于 2024-05-17 03:50:22
  • 刷新
    器件型号: AD829AR
    百芯编号: CM13769063
    制造商: ADI
    价格 ¥45.34
    总计: 447
    MOQ: 1
    库存地点: 香港
    发货日期: 2024/05/22 (预期 )
  • 购买
    *由于库存数量、价格不断波动,请 联系我们 获取型号最新价格和库存。

    元器件库存查询

    库存查询
    百芯库存涵盖200,000个元器件
    欺诈预防提醒
    近日,我们发现不法分子冒充百芯智造进行诈骗或试图低价销售假冒和故障元器件。
    百芯智造在2021年建立了一个 元器件检测实验室 ,旨在提供有质量保证的组件。
    我们强烈建议客户选择可靠的元器件供应商。
    请注意,唯一电子邮件后缀是 aipcba.com
    类型
    描述
    选择
    制造商
    ADI
    类别
    运算,放大器
    3D模型
     3D模型
    安装方式
    Surface Mount
    引脚数
    8 Pin
    封装
    SOIC-8
    供电电流
    5.3 mA
    电路数
    1 Circuit
    通道数
    1 Channel
    耗散功率
    0.9 W
    共模抑制比
    100 dB
    输入电容
    1.50 pF
    转换速率
    230 V/μs
    增益频宽积
    600 MHz
    输入阻抗
    13.0 kΩ
    输入补偿电压
    1 mV
    输入偏置电流
    7000 nA
    工作温度(Max)
    125 ℃
    工作温度(Min)
    -40 ℃
    3dB带宽
    120 MHz
    增益带宽
    600 MHz
    耗散功率(Max)
    900 mW
    共模抑制比(Min)
    100 dB
    显示相似产品
    AD829AR 数据规格书
    AD829AR 数据手册Datasheet
    20 Pages, 372 KB
    2011/10/18
    查看
    AD829AR 其它数据手册Datasheet
    28 Pages, 442 KB
    2017/06/19
    查看
    AD829AR 应用笔记
    8 Pages, 167 KB
    2002/10/21
    查看
    尺寸 & 包装
    类型
    描述
    高度
    1.5 mm
    工作温度
    -40℃ ~ 125℃
    产品生命周期
    Active
    包装方式
    Tube
    符合标准
    类型
    描述
    RoHS标准
    Non-Compliant
    含铅标准
    Contains Lead
    军工级
    Yes
    产品概述
    • Product Details
    • The AD829 is a low noise (1.7 nV/√Hz), high speed op amp with custom compensation that provides the user with gains of 1 to 20 while maintaining a bandwidth >50 MHz. Its 0.04° differential phase and 0.02% differential gain performance at 3.58 MHz and 4.43 MHz, driving reverse-terminated 50 Ω or 75 Ω cables, makes it ideally suited for professional video applications. The AD829 achieves its 230 V/μs uncompensated slew rate and 750 MHz gain bandwidth while requiring only 5 mA of current from power supplies.
    • The external compensation pin of the AD829 gives it exceptional versatility. For example, compensation can be selected to optimize the bandwidth for a given load and power supply voltage. As a gain-of-2 line driver, the −3 dB bandwidth can be increased to 95 MHz at the expense of 1 dB of peaking. Its output can also be clamped at its external compensation pin. The AD829 exhibits excellent dc performance. It offers a minimum open-loop gain of 30 V/mV into loads as low as 500 Ω, a low input voltage noise of 1.7 nV/√Hz, and a low input offset voltage of 1 mV maximum. Common-mode rejection and power supply rejection ratios are both 120 dB.
    • This op amp is also useful in multichannel, high speed data conversion where its fast (90 ns to 0.1%) settling time is important. In such applications, the AD829 serves as an input buffer for 8-bit to 10-bit ADCs and as an output I/V converter for high speed DACs.
    • Operating as a traditional voltage feedback amplifier, the AD829 provides many of the advantages that a transimpedance amplifier offer. A bandwidth >50 MHz can be maintained for a range of gains through the replacement of the external compensation capacitor. The AD829 and the transimpedance amplifier are both unity-gain stable and provide similar voltage noise performance (1.7 nV/√Hz); however, the current noise of the AD829 (1.5 pA/√Hz) is less than 10% of the noise of transimpedance amplifiers. The inputs of the AD829 are symmetrical.
    • ### Features and Benefits
    • High Speed
    • 120 MHz bandwidth, gain = −1
    • 230 V/μs slew rate
    • 90 ns settling time to 0.1%
    • Ideal for video applications
    • 0.02% differential gain
    • 0.04° differential phase
    • Low noise
    • 1.7 nV/√Hz input voltage noise
    • 1.5 pA/√Hz input current noise
    • Excellent dc precision
    • 1 mV maximum input offset voltage (over temperature)
    • 0.3 μV/°C input offset drift
    • Flexible operation
    • Specified for ±5 V to ±15 V operation
    • ±3 V output swing into a 150 Ω load
    • External compensation for gains 1 to 20
    • 5 mA supply current
    • Available in tape and reel in accordance with EIA-481A standard
