AD5124BRUZ100-RL7ADIThe AD5124/AD5144/AD5144A potentiometers provide a nonvolatile solution for 128-/256Position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6mA current density in the Ax, Bx, and Wx pins.
￥
28.72

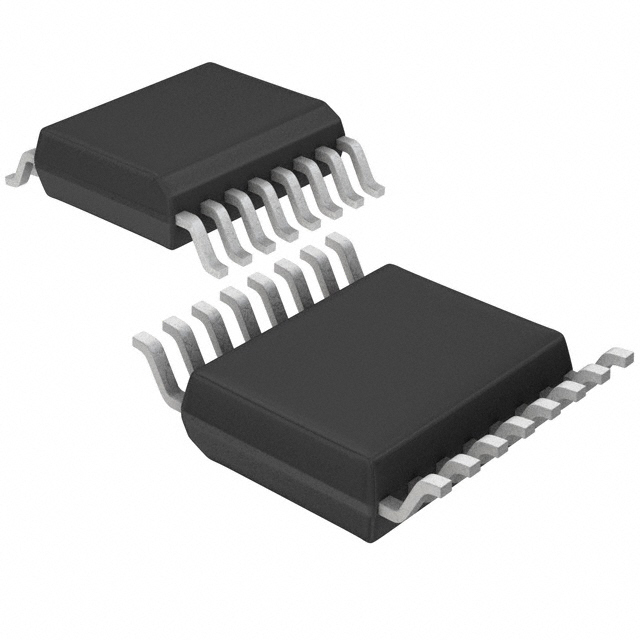

显示的图像仅供参考，应从产品数据表中获得准确的规格。
AD5124BRUZ100-RL7ADI
制造商:
ADI
制造商型号#:
AD5124BRUZ100-RL7
百芯编号#:
CM258388006
价格(CNY):
￥
28.72
百芯库存:
287
个
库存地点:
可供应量:
163
个在库
此为供应商库存，需要与销售确认
产品描述:
The AD5124/AD5144/AD5144A potentiometers provide a nonvolatile solution for 128-/256Position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6mA current density in the Ax, Bx, and Wx pins.
The AD5124/AD5144/AD5144A potentiometers provide a nonvolatile solution for 128-/256-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the Ax, Bx, and Wx pins.
The low resistor tolerance and low nominal temperature coefficient simplify open-loop applications as well as applications requiring tolerance matching.
The linear gain setting mode allows independent programming of the resistance between the digital potentiometer terminals, through the RAW and RWB string resistors, allowing very accurate resistor matching.
The high bandwidth and low total harmonic distortion (THD) ensure optimal performance for ac signals, making these devices suitable for filter design.
The low wiper resistance of only 40 Ω at the ends of the resistor array allow for pin-to-pin connection.
The wiper values can be set through an SPI-/I2C-compatible digital interface that is also used to read back the wiper register and EEPROM contents.
The AD5124/AD5144/AD5144A are available in a compact, 24-lead, 4 mm × 4 mm LFCSP and a 20-lead TSSOP. The parts are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.
