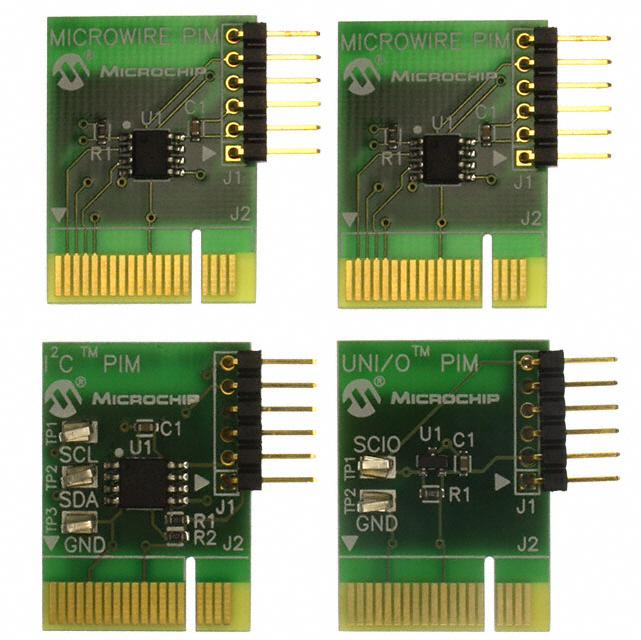

AC243003 is a serial EEPROM PIM PICtail modules designed around serial EEPROM devices. The boards are designed to interface with the PICtail Plus connector as well as the MPLAB Starter Kit for Serial Memory Products and the PICkit 2, allowing user to get started right out of the box. PIM boards are mounted with 24AA512 512Kb I2C EEPROM, 25AA512 512Kb SPI EEPROM, 11AA160 16Kb UNI/O EEPROM, 93AA86B 16Kb Microwire EEPROM.
Plug and play with PICtail Plus connector and PICkit 2 connector
High density, wide voltage range devices mounted to the boards
Follows published recommended usage for each bus, including decoupling capacitors, resistors
Test points for oscilloscope connections for firmware debugging (I2C and UNI/O only)
All four standard serial interfaces are included for maximum flexibility in developing application
