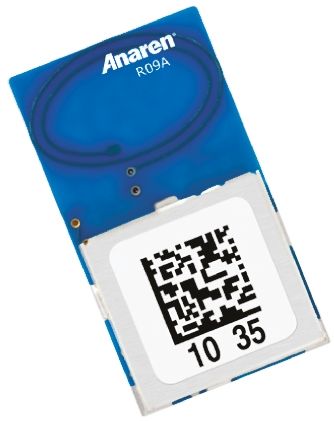

The A110LR09A is a high-performance, dual-band FCC & IC certified and ETSI compliant radio module that incorporates the Texas Instruments CC110L "value line" low-cost transceiver chip in the industry"s smallest package (9 x 16 x 2.5mm) and is compatible with all TI-approved software stacks. With an LGA pad footprint, this module is designed to effortlessly integrate into a wide range of applications, including: industrial control, building automation, low-power wireless sensor networks, lighting control, and automated meter reading.
FCC, IC and ETSI compliant, shielded package
Digital RSSI output
Programmable output power up to +12dBm
High sensitivity (1.2 kBaud, 1% packet error rate)
Ultra-small package size: 9 x 16 x 2.5mm
LGA footprint
RoHS compliant
Impedance-controlled, multi-layer PCB
Low current consumption (15 mA in RX, 1.2 kBaud, 915 MHz)
200 nA sleep mode current consumption
Efficient SPI interface; all registers can be programmed with one "burst" transfer
No additional DC decoupling required
Integrated Analogue temperature sensor
Excellent receiver selectivity and blocking performance
Suitable for frequency hopping systems
Impedance-matched balun for optimized efficiency
Support for asynchronous and synchronous serial receive/transmit mode for backwards compatibility
