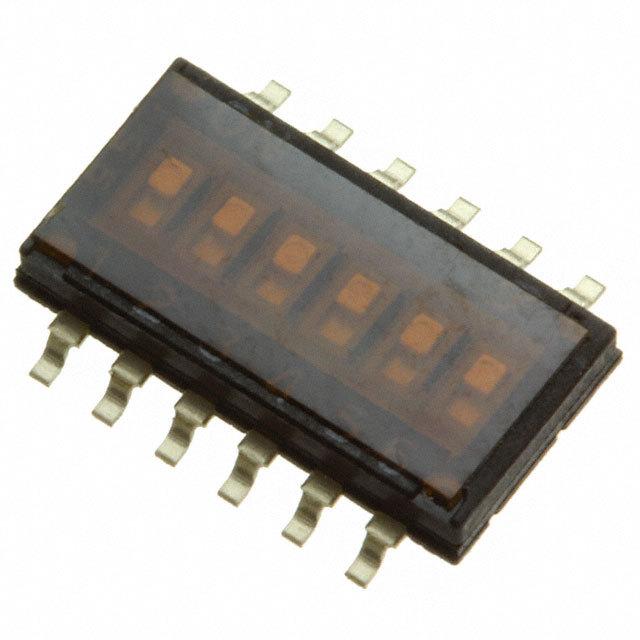

Series 97 requires half the board space of standard DIP switches. Process compatible to 255°C.* Contact Rating:** 25 mA @ 25 VDC Switching. 100 mA @ 50 VDC non-switching. Mechanical life: 1000 cycles min. ** Contact Resistance:** 100 mΩ max. initial, 150 mΩ max. after Life. ** Terminals:** Brass with gold plating. "S" suffix in part number indicates top tape seal.
Used in any DIP application where space is at a premium such as notebook computers, hand-held radios, industrial control products, CDROM drives, cellular base stations and coin changers.
