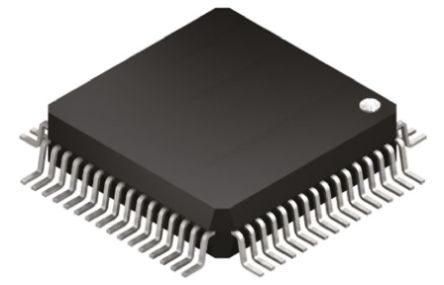

The 78Q2120C09-64CGT/F is a 10/100BASE-TX transceiver in 64 pin LQFP package. This device is a fast Ethernet transceiver which includes integrated media independent interface (MII), ENDECs, scrambler/descrambler, dual-speed clock recovery and full-featured autonegotiation function. The transmitter includes an on-chip pulse-shaper and a low-power line driver. The receiver has an adaptive equalizer and a baseline restoration circuit required for accurate clock and data recovery. The transceiver interfaces to Category-5 unshielded twisted pair (Cat-5 UTP) cabling for 100BASE-TX/10BASE-T and Category-3 unshielded twisted pair for 10BASE-T. Connection to the line media is through 1:1 isolation transformers. The high performance and low power consumption of the device suits for IP camera and print server application.
Supply voltage range is 3V to 3.6V
No external filter required
Full-duplex operation capable
PCS bypass supports 5bit symbol interface
Dual speed digital clock recovery
Register-programmable transmit amplitude
Automatic polarity correction during autonegotiation and 10BASE-T signal reception
Power-saving and power-down modes include transmitter disable
