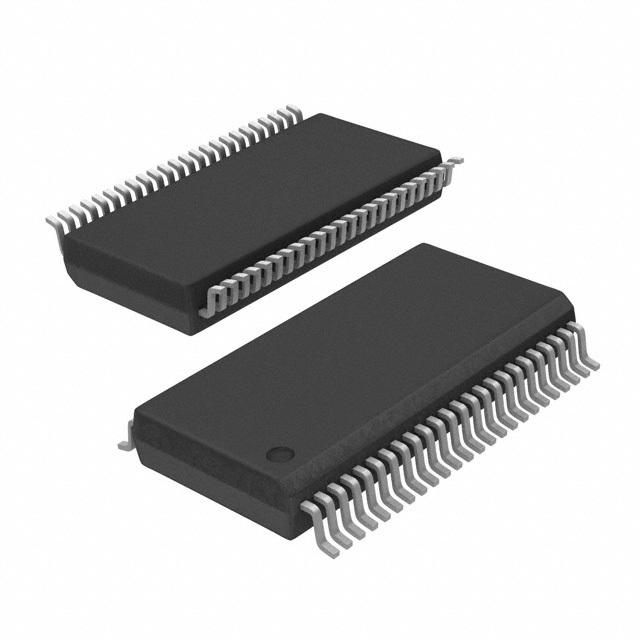

The 74AC16245DL is a 16-bit Bus Transceiver with 3-state outputs. Transceiver organized as dual-octal non-inverting 3-state transceivers designed for asynchronous two-way communication between data buses. The control function implementation minimizes external timing requirements. This device allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending upon the logic level at the direction control (DIR) input. The output-enable input (OE\\) can be used to disable the devices so that the buses are effectively isolated. The 74AC16245 is characterized for operation from -40 to 85°C.
Flow-through architecture optimizes PCB layout
Distributed VCC and GND configuration minimizes high-speed switching noise
500mA Latch-up immunity at 125°C
3-state Outputs drive bus lines directly
EPIC™ (Enhanced-Performance Implanted CMOS) 1µm process
