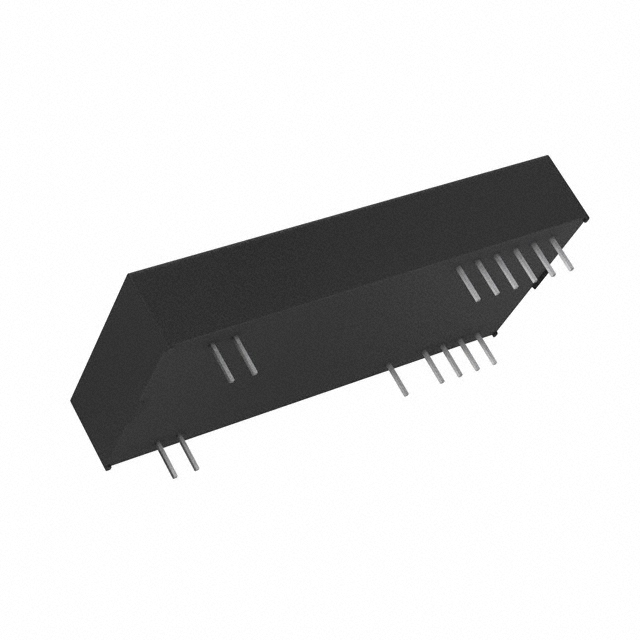

The 1B41 is a precision, isolated, RTD signal conditioner that incorporates a circuit design utilizing transformer based isolation and automated surface mount manufacturing technology. It provides an unbeatable combination of versatility and performance in a compact plastic package. Designed for measurement and control applications, it is especially suited for harsh environments with extremely high common mode interference. Unlike expensive solutions that require separate dc/dc converters, each 1B41 generates its own floating current excitation, providing true low cost channel-to channel isolation.
**Applications**
* Multichannel RTD Temperature Measurement
* Industrial Measurement and Control Systems
* Data Acquisition System
### Features and Benefits
Complete RTD Signal Conditioning Solution
Resistor Programmable Linearization
Lead Resistance Compensation
High CMV Isolation: 1500 V rms Continuous
Small package: 1.0"x2.1"x0.35" DIP
Low pass filter (fc=3Hz)
High Accuracy
Low Input Offset Tempco: 0.002µ/°C
Linearization Conformance: ±0.1%FSR
High CMR: 160dB (60 Hz,G=1000V/V)
Pin compatible with 1B51 Isolated mV/Thermocouple Conditioner
