Issue 9 - July 2007 1 www.zetex.com
© Zetex Semiconductors plc 2007
ZXCT1021
Low offset high-side current monitor
Description
Ordering information
The ZXCT1021 is a precision high-side current
sense monitor. Using this type of device
eliminates the need to disrupt the ground
plane when sensing a load current.
The ZXCT1021 provides a fixed gain of 10 for
applications where minimal sense voltage is
required.
The very low offset voltage enables a typical
accuracy of 3% for sense voltages of only 10mV,
giving better tolerances for small sense
resistors necessary at higher currents.
The wide input voltage range of 20V down to as
low as 2.5V make it suitable for a range of
applications. With a minimum operating
current of just 25µA, combined with its SOT23-
5 package make it suitable for portable battery
equipment too.
Features
• Accurate high-side current sensing
• Output voltage scaling
• 2.5V – 20V supply range
•25A quiescent current
• 1% typical accuracy
• SOT23-5 package
Applications
• Battery chargers
• Smart battery packs
• DC motor control
• Over current monitor
• Power management
• Level translating
• Programmable current source

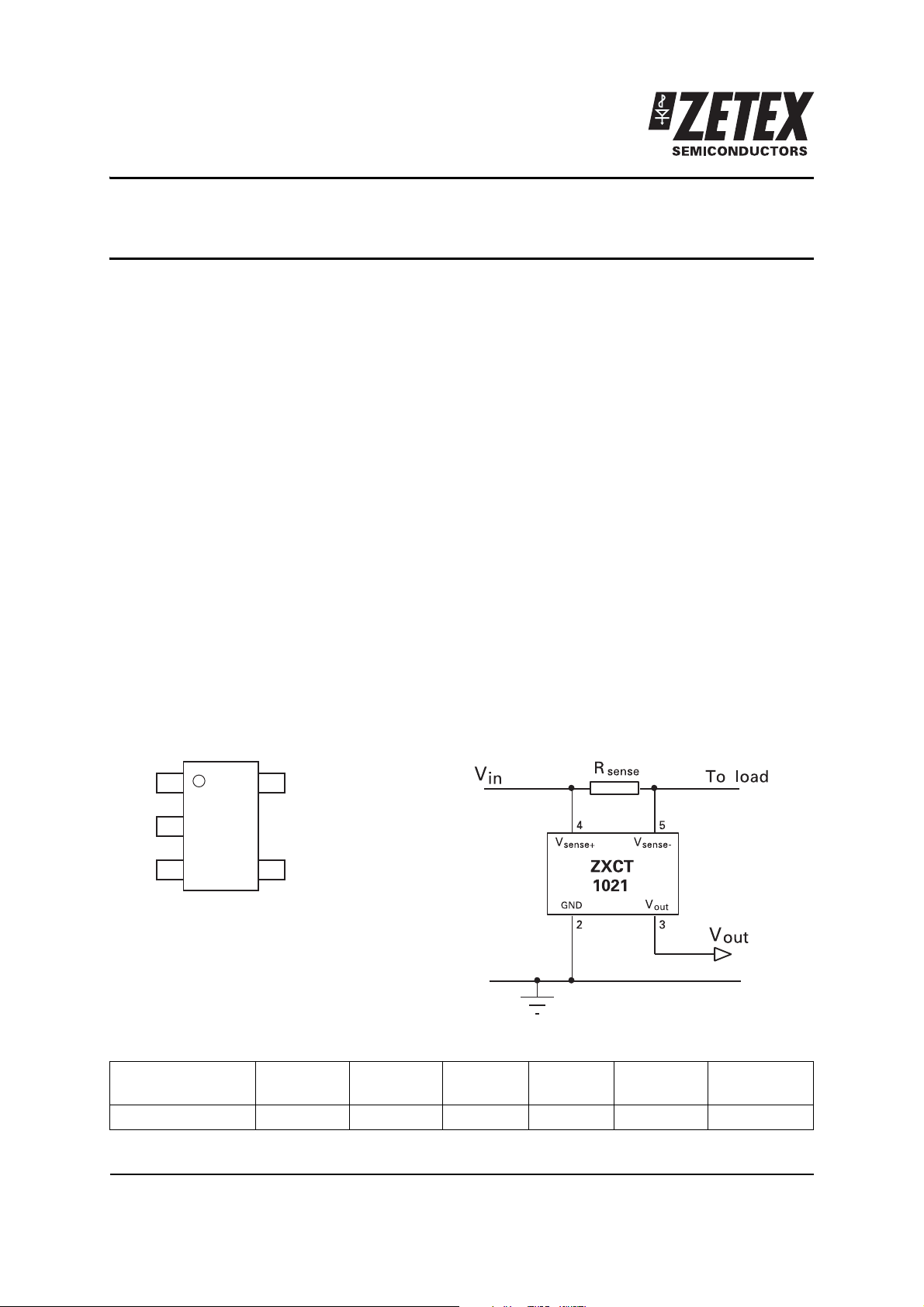

Pinout information Typical application circuit
Order reference Package Device
marking
Status Reel size
(inches)
Quantity
per reel
Tape width
(mm)
ZXCT1021E5TA SOT23-5 1021 Released 7 3000 8
NC
GND
V
OUT
V
SENSE
-
V
SENSE
+
Pinout - top view
