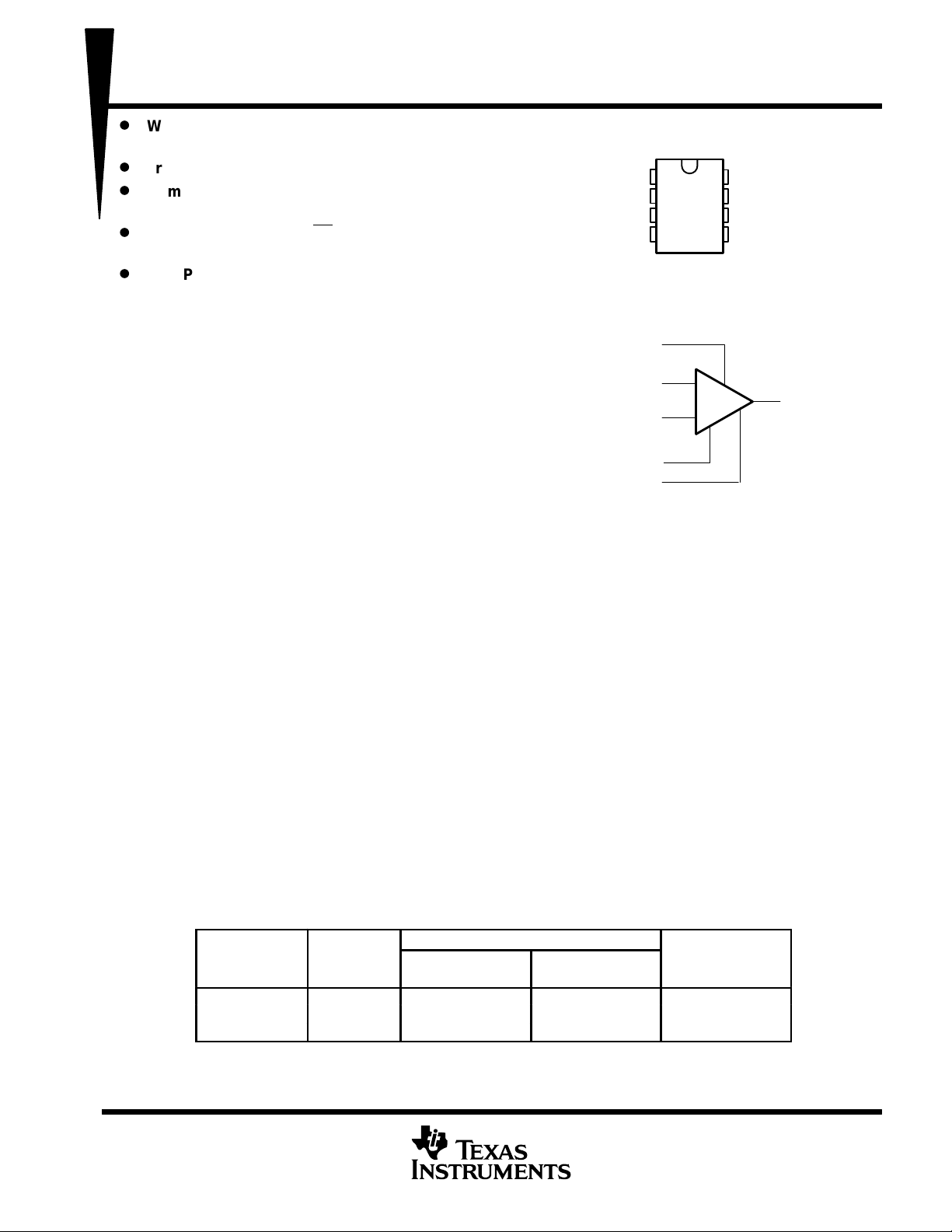

TLC251, TLC251A, TLC251B, TLC251Y
LinCMOS PROGRAMMABLE
LOW-POWER OPERATIONAL AMPLIFIERS
SLOS001F – JULY 1983 – REVISED MARCH 2001
1
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
D
Wide Range of Supply Voltages
1.4-V to 16-V
D
True Single-Supply Operation
D
Common-Mode Input Voltage Range
Includes the Negative Rail
D
Low Noise . . . 30 nV/√Hz Typ at 1-kHz
(High Bias)
D
ESD Protection Exceeds 2000 V Per
MIL-STD-833C, Method 3015.1
description
The TLC251C, TLC251AC, and TLC251BC are
low-cost, low-power programmable operational
amplifiers designed to operate with single or dual
supplies. Unlike traditional metal-gate CMOS
operational amplifiers, these devices utilize Texas
Instruments silicon-gate LinCMOS process,
giving them stable input offset voltages without
sacrificing the advantages of metal-gate CMOS.
This series of parts is available in selected grades of input offset voltage and can be nulled with one external
potentiometer. Because the input common-mode range extends to the negative rail and the power consumption
is extremely low, this family is ideally suited for battery-powered or energy-conserving applications. A
bias-select pin can be used to program one of three ac performance and power-dissipation levels to suit the
application. The series features operation down to a 1.4-V supply and is stable at unity gain.
These devices have internal electrostatic-discharge (ESD) protection circuits that prevent catastrophic failures
at voltages up to 2000 V as tested under MIL-STD-883C, Method 3015.1. However, care should be exercised
in handling these devices as exposure to ESD may result in a degradation of the device parametric
performance.
Because of the extremely high input impedance and low input bias and offset currents, applications for the
TLC251C series include many areas that have previously been limited to BIFET and NFET product types. Any
circuit using high-impedance elements and requiring small offset errors is a good candidate for cost-effective
use of these devices. Many features associated with bipolar technology are available with LinCMOS
operational amplifiers without the power penalties of traditional bipolar devices. Remote and inaccessible
equipment applications are possible using the low-voltage and low-power capabilities of the TLC251C series.
In addition, by driving the bias-select input with a logic signal from a microprocessor, these operational amplifiers
can have software-controlled performance and power consumption. The TLC251C series is well suited to solve
the difficult problems associated with single battery and solar cell-powered applications.
The TLC251C series is characterized for operation from 0°C to 70°C.
AVAILABLE OPTIONS
V
IO
max
PACKAGED DEVICES
CHIP FORM
T
A
V
IO
max
AT 25°C
SMALL OUTLINE
(D)
PLASTIC DIP
(P)
CHIP
FORM
(Y)
10 mV TLC251CD TLC251CP TLC251Y
0°C to 70°C
5 mV TLC251ACD TLC251ACP —
2 mV TLC251BCD TLC251BCP —
The D package is available taped and reeled. Add the suffix R to the device type (e.g., TLC251CDR). Chips are
tested at 25°C.
Copyright 2001, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
LinCMOS is a trademark of Texas Instruments.
1
2
3
4
8
7
6
5
OFFSET N1
IN–
IN+
V
DD–
/GND
BIAS SELECT
V
DD
OUT
OFFSET N2
D OR P PACKAGE
(TOP VIEW)
symbol
+
–
OUT
BIAS SELECT
IN+
IN–
OFFSET N1
OFFSET N2
