Specifications are subject to change without notice.
220
JUNE 1998 - REVISED OCTOBER 2000

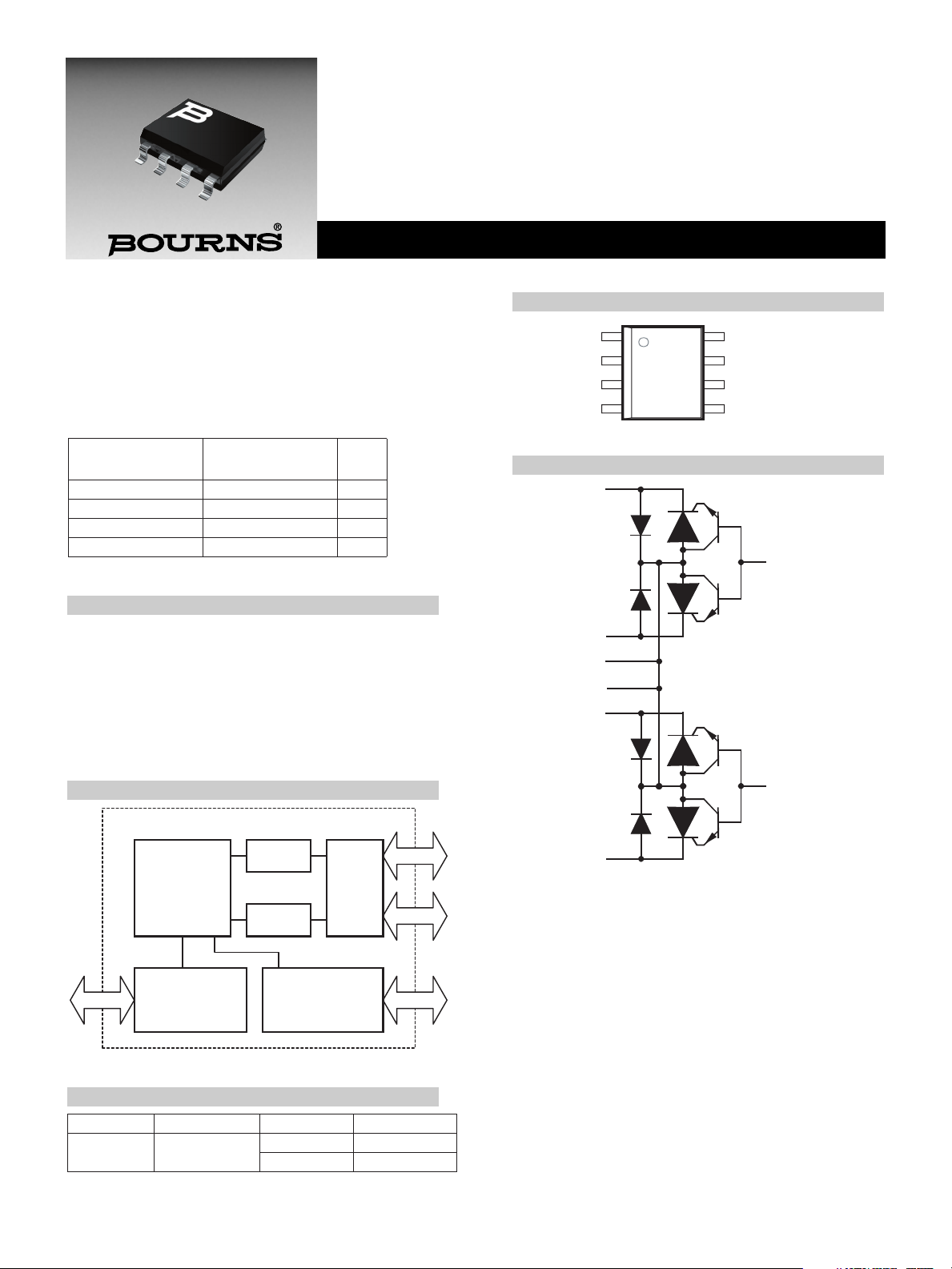

TISP6NTP2A Programmable Protector
SDRXAI
K1
K3
K4
K2
G3,G4
A
A
G1,G2
TISP6NTP2A
QUAD FORWARD-CONDUCTING BUFFERED P-GATE THYRISTORS
Device Symbol
Voltage Impulse
Form
Current Impulse
Shape
I
TSP
A
10/1000 µs 10/1000 µs20
10/700 µs 5/310 µs25
1.2/50 µs 8/20 µs75
2/10 µs 2/10 µs85
TERMINAL ADAPTOR
LINE
LAN
POTS 2
POTS 1SLIC 1
SLIC 2
TISP6
NTP2A
TRANSCEIVER
PROCESSOR
TRANSCEIVER
Independent Overvoltage Protection for Two SLICs in Short
Loop Applications:
– Wide 0 to -90 V Programming Range
– Low 5 mA max. Gate Triggering Current
– High 150 mA min. (85 °C) Holding Current
– Specified 1.2/50 & 0.5/700 Limiting Voltage
– Full -40 °C to 85 °C Temperature Range
Rated for Common Impulse Waveforms
How To Order
Device Package Carrier Order #
TISP6NTP2A D, Small-Outline
Tape and Reel TISP6NTP2ADR
Tube TISP6NTP2AD
D Package (Top View)
Description
The TISP6NTP2A has been designed for short loop systems
such as:
– WILL (Wireless In the Local Loop)
– FITL (Fibre In The Loop)
– DAML (Digital Added Main Line, Pair Gain)
– SOHO (Small Office Home Office)
– ISDN-TA (Integrated Services Digital Network -
Terminal Adaptors)
Typical TISP6NTP2A Router Application
MDRXAM
1
2
3
45
6
7
8
K2
A
A
K4
G1,G2
K1
K3
G3,G4
