Freescale Semiconductor Document Number: MPL3115A2
Data Sheet:Technical Data Rev 3.0, 12/2013
An Energy Efficient Solution by Freescale
© 2011-2013 Freescale Semiconductor, Inc. All rights reserved.

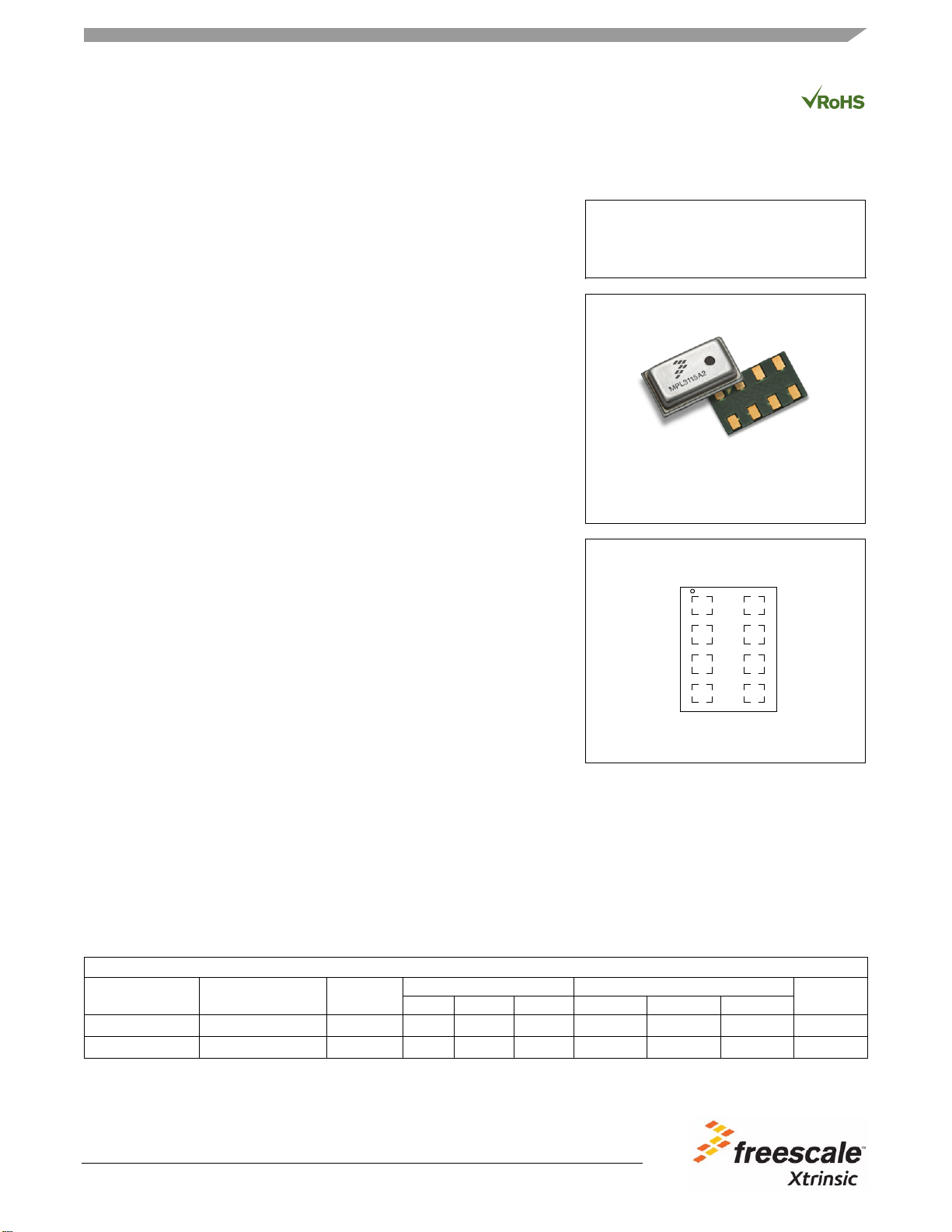

Xtrinsic MPL3115A2 I
2
C Precision
Altimeter
The Xtrinsic MPL3115A2 employs a MEMS pressure sensor with an I
2
C
interface to provide accurate Pressure/Altitude and Temperature data. The
sensor outputs are digitized by a high resolution 24-bit ADC. Internal processing
removes compensation tasks from the host MCU system. Multiple user-
programmable, power saving, interrupt and autonomous data acquisition modes
are available, including programmed acquisition cycle timing, and poll-only
modes. Typical active supply current is 40 μA per measurement-second for a
stable 10 cm output resolution.
The MPL3115A2 is offered in a 5 mm x 3 mm x 1.1 mm LGA package and
specified for operation from -40 °C to 85 °C. Package is surface mount with a
stainless steel lid and is RoHS compliant.
Features
• 1.95 V to 3.6 V Supply Voltage, internally regulated by LDO
• 1.6 V to 3.6 V Digital Interface Supply Voltage
• Fully Compensated internally
• Direct Reading, Compensated
– Pressure: 20-bit measurement (Pascals)
– Altitude: 20-bit measurement (meters)
– Temperature: 12-bit measurement (degrees Celsius)
• Programmable Events
• Autonomous Data Acquisition
• Resolution down to 0.1 m
• 32-Sample FIFO
• Ability to log data up to 12 days using the FIFO
• 1 second to 9 hour data acquisition rate
•
I
2
C digital output interface (operates up to 400 kHz)
Application Examples
• High Accuracy Altimetry
• Smartphones/Tablets
• Personal Electronics Altimetry
• GPS Dead Reckoning
• GPS Enhancement for Emergency Services
• Map Assist, Navigation
• Weather Station Equipment
ORDERING INFORMATION
Device Name Package Options Case No.
# of Ports Pressure Type
Digital
Interface
None Single Dual Gauge Differential Absolute
MPL3115A2 Tray 2153 • •
•
MPL3115A2R1 Tape & Reel (1000) 2153 • •
•
MPL3115A2
50 to 110 kPa
Top View
LGA PACKAGE
5.0 mm x 3.0 mm x 1.1 mm
1
INT1
SDA
V
DD
CAP
V
DDIO
GND
INT2
SCL
2
3
4
8
7
6
5
Pin Connections
