Document Number: MMPF0200
Rev. 5.0, 7/2014
Freescale Semiconductor
Advance Information
* This document contains certain information on a new product.
Specifications and information herein are subject to change without notice.
© Freescale Semiconductor, Inc., 2014. All rights reserved.
12 Channel Configurable Power
Management Integrated Circuit
The PF0200 Power Management Integrated Circuit (PMIC) provides a
highly programmable/ configurable architecture, with fully integrated
power devices and minimal external components. With up to four buck
converters, one boost regulator, six linear regulators, RTC supply, and
coin-cell charger, the PF0200 can provide power for a complete
system, including applications processors, memory, and system
peripherals, in a wide range of applications. With on-chip One Time
Programmable (OTP) memory, the PF0200 is available in pre-
programmed standard versions, or non-programmed to support
custom programming. The PF0200 is especially suited to the
i.MX 6SoloLite, i.MX 6Solo and i.MX 6DualLite versions of the i.MX 6
family of devices and is supported by full system level reference
designs, and pre-programmed versions of the device. This device is
powered by SMARTMOS technology.
Features:
• Three to four buck converters, depending on configuration
• Boost regulator to 5.0 V output
• Six general purpose linear regulators
• Programmable output voltage, sequence, and timing
• OTP (One Time Programmable) memory for device configuration
• Coin cell charger and RTC supply
• DDR termination reference voltage
• Power control logic with processor interface and event detection
•I
2
C control
• Individually programmable ON, OFF, and Standby modes

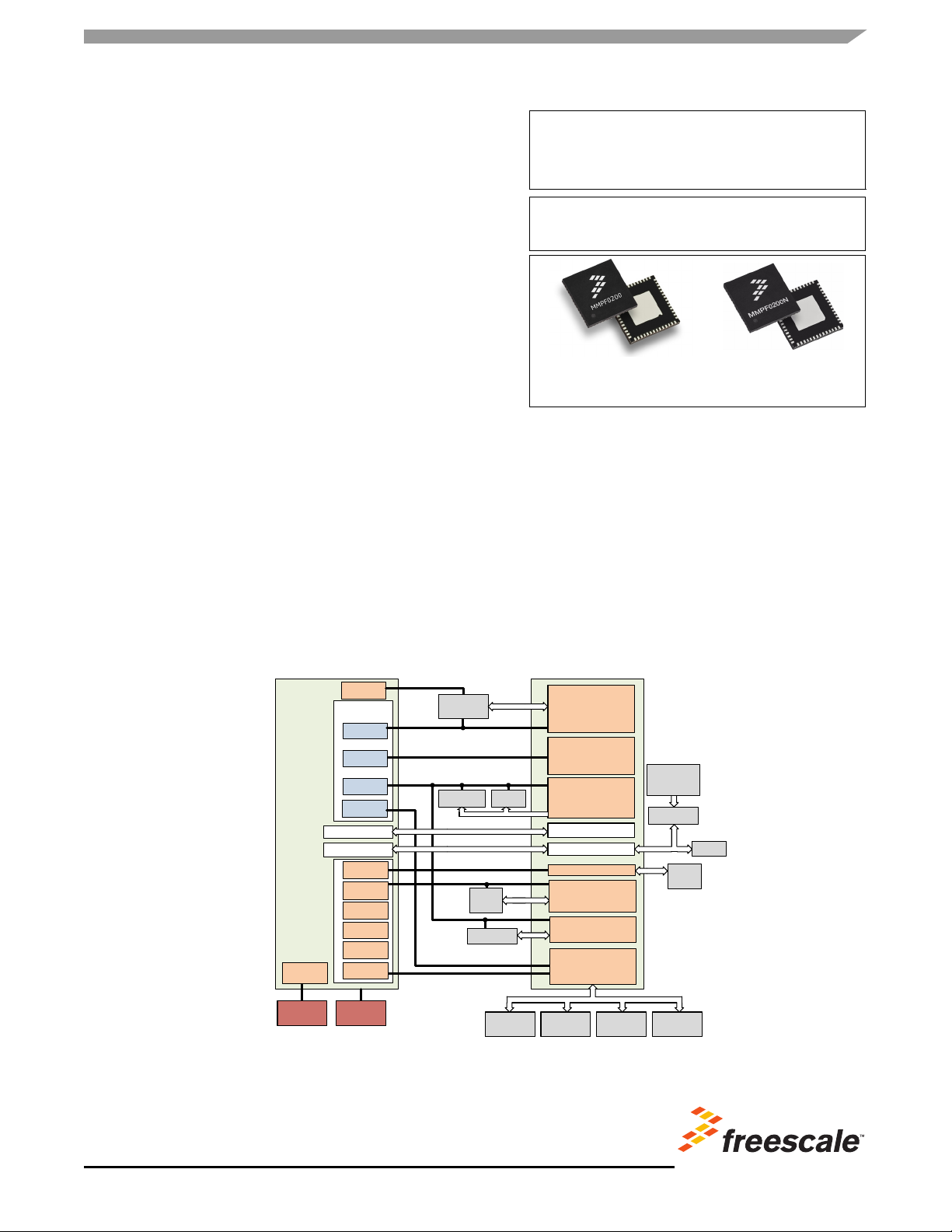

Figure 1. Simplified Application Diagram
POWER MANAGEMENT
PF0200
EP SUFFIX (E-TYPE)
56 QFN 8X8
98ASA00405D
Applications
•Tablets
•IPTV
• Industrial Control
• Medical monitoring
• Home automation/ alarm/ energy management
ES SUFFIX (WF-TYPE)
56 QFN 8X8
98ASA00589D
VGEN3
VGEN5
Camera
Audio
Codec
Cluster/HUD
External AMP
Microphones
Speakers
Front USB
POD
Rear USB
POD
Rear Seat
Infotaiment
Sensors
i.MX6X
I
2
C Communication
I
2
C Communication
PF0200
Control Signals
Parallel control/GPIOS
LICELL
Charger
COINCELL Main Supply
VGEN1
VGEN2
VGEN4
VGEN6
SWBST
SW3A/B
SW1A/B
SW2
GPS
MIPI
uPCIe
SATA - FLASH
NAND - NOR
Interfaces
Processor Core
Voltages
Camera
VREFDDR
DDR Memory
DDR MEMORY
INTERFACE
SD-MMC/
NAND Mem.
SATA
HDD
WAM
GPS
MIPI
HDMI
LDVS Display
USB
Ethernet
CAN
