SOC
DRV612
RIGHT
DAC
DAC
LEFT
Line Driver
Gain
Programmable
-1x to -10x
+
+
Copyright © 2016, Texas Instruments Incorporated
±
±
Product
Folder
Sample &
Buy
Technical
Documents
Tools &
Software
Support &
Community
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. UNLESS OTHERWISE NOTED, this document contains PRODUCTION
DATA.
DRV612
SLOS690C –DECEMBER 2010–REVISED JULY 2016
DRV612 2-Vrms DirectPath™ Line Driver With Programmable-Fixed Gain
1
1 Features
1
• DirectPath™
– Eliminates Pops and Clicks
– Eliminates Output DC-Blocking Capacitors
– 3-V to 3.6-V Supply Voltage
• Low Noise and THD
– SNR > 105 dB at –1× Gain
– Vn < 12 μVms, 20 Hz to 20 kHz at –1× Gain
(Typical)
– THD+N < 0.003% at 10-kΩ Load and –1× Gain
• 2-Vrms Output Voltage Into 600-Ω Load
• Single-Ended Input and Output
• Programmable Gain Select Reduces Component
Count
– 13× Gain Values
• Active Mute With More Than 80-dB Attenuation
• Short-Circuit and Thermal Protection
• ±8-kV HBM ESD-Protected Outputs
2 Applications
• PDP and LCD TVs
• DVD Players
• Mini and Micro Combo Systems
• Soundcards

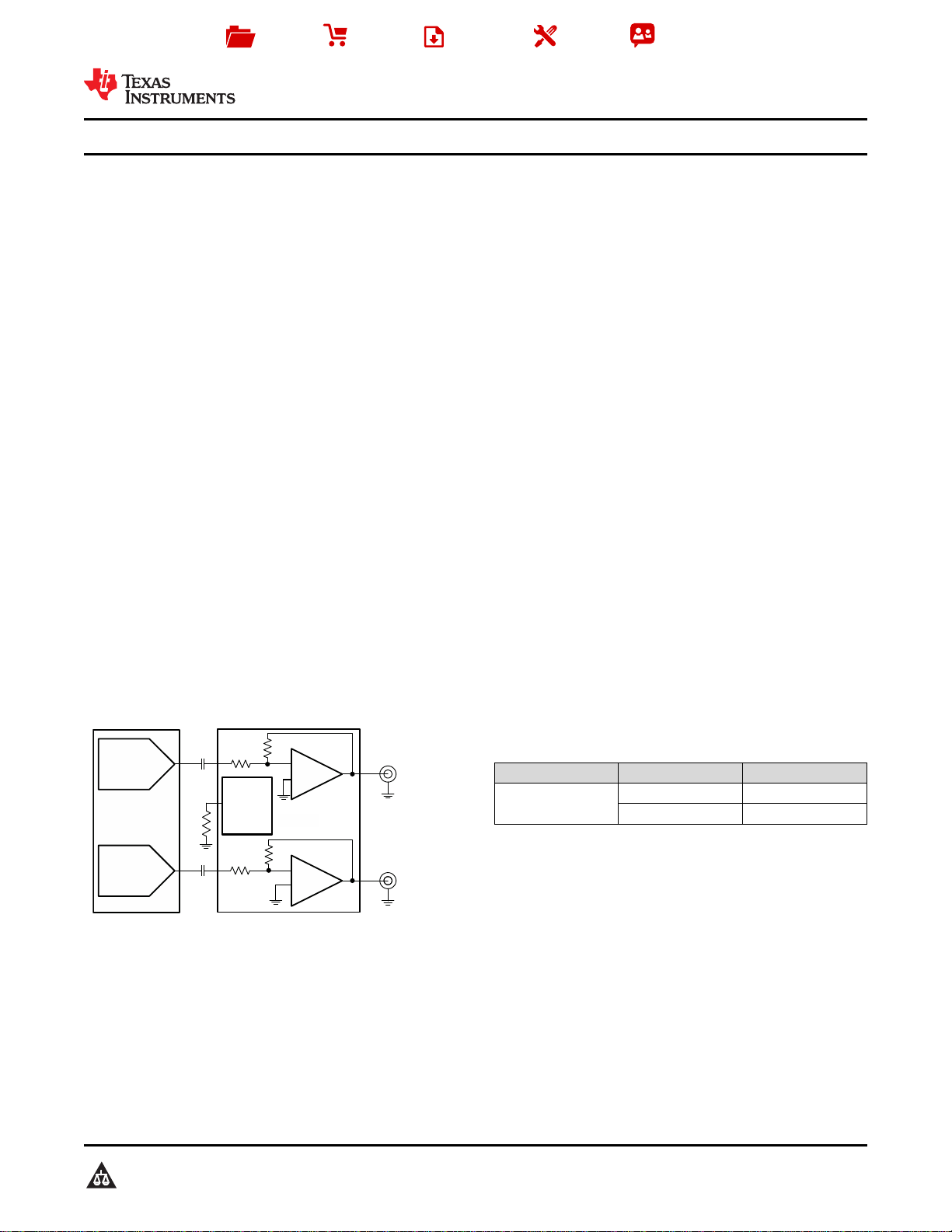

Functional Block Diagram
3 Description
The DRV612 is a single-ended, 2-Vrms stereo line
driver designed to reduce component count, board
space, and cost. It is ideal for single-supply
electronics where size and cost are critical design
parameters.
The DRV612 does not require a power supply greater
than 3.3 V to generate its 5.6-V
PP
output, nor does it
require a split-rail power supply.
The DRV612 device is designed using TI’s patented
DirectPath technology, which integrates a charge
pump to generate a negative supply rail that provides
a clean, pop-free ground-biased output. The DRV612
is capable of driving 2 Vms into a 600-Ω load.
DirectPath technology also allows the removal of the
costly output dc-blocking capacitors.
The device has fixed-gain single-ended inputs with a
gain-select pin. Using a single resistor on this pin, the
designer can choose from 13 internal programmable
gain settings to match the line driver with the codec
output level. The device also reduces the component
count and board space.
Line outputs have ±8-kV HBM ESD protection,
enabling a simple ESD protection circuit. The
DRV612 has built-in active mute control with more
that 80-dB attenuation for pop-free mute on/off
control.
The DRV612 is available in a 14-pin TSSOP and 16-
pin VQFN. For a footprint-compatible stereo
headphone driver, see the TPA6139A2.
Device Information
(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
DRV612
TSSOP (14) 5.00 mm × 4.40 mm
VQFN (16) 3.00 mm × 3.00 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
