For complete specifications and additional models: U.S. www.omron.com/oei Canada www.omron.ca H-9

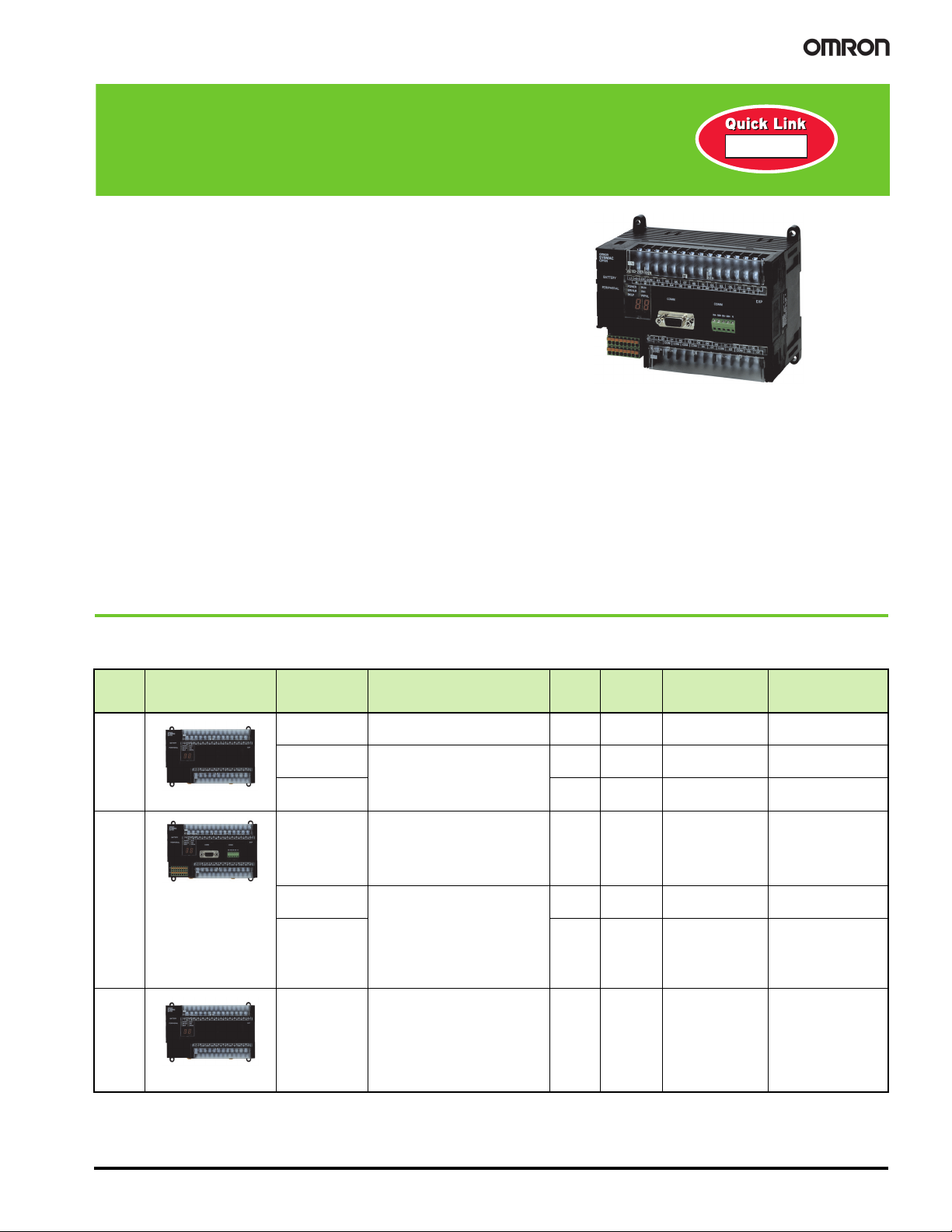

CP1H Programmable Controllers
High-Speed, High-Performance Compact
PLC with 40 I/O Built In
System Advantages
• Brick style controller features powerful position control and
communications capabilities
• Built-in functions include digital I/O, high-speed counters,
pulse outputs and analog input/outputs integrate process
data with sequential control
• Integrated communications gateway functions make CP1H
the first compact PLC in Omron's Smart Platform concept
• All Omron devices connected to CP1H by Ethernet,
DeviceNe
t or Serial link can be configured, programmed
and monitored through a single connection, using
CX-One software suite
• CX-Programmer Jr. software, economical package for
simple ladder diagram programming
• Built-in USB and peripheral ports and two plug-in serial
comm boards for RS-232C and RS-422/485 simplify direct
connection to serial devices and programming tools
• Network communication capabilities via
serial
Modbus-RTU
Master, Profibus-DP and Omron's CompoBus/S, PLC Link
and DeviceNet I/O Link help integrate process or machine
activity with other plant floor operations
• 40 I/O point CPU, Expandable up to 320 I/O points using
CPM1A expansion I/O units and CJ1 Special I/O modules
• UL, cUL and CE;UL Class I, Division 2, Groups A, B, C and
D for use in hazardous locations; contact Omron for rating
details
CP1H Programmable Controllers
CP1H Controller CPU
Programmable Controllers
CP1H
C004A
No. of
I/O
points
Appearance/
dimensions
(H x W x D mm)
Input voltage Built-in capabilities No. of
inputs
No. of
outputs
Output type Model
40
110 x 150 x 85
100-240 VAC,
50/60 Hz
4 encoder inputs (100 kHz)
8 Interrupts/Counters
24 DC 16 Relay CP1H-X40DR-A
24 VDC 4 encoder inputs (100 kHz)
4 Pulse outputs:
4 x 100 kHz
8 interrupts/counters
24 DC 16 NPN transistor
(sinking)
CP1H-X40DT-D
24 VDC 24 DC 16 PNP transistor
(sourcing)
CP1H-X40DT1-D
40
110 x 150 x 85
100-240 VAC,
50/60 Hz
4 Analog inputs,
2 Analog outputs
(1/12,000 resolution);
4 encoder inputs (100 kHz)
8 Interrupts/Counters
24 DC 16 Relay CP1H-XA40DR-A
24 VDC 4 Analog inputs,
2 Analog outputs
(1/12,000 resolution)
4 encoder inputs (100 kHz)
4 Pulse outputs:
4 x 100 kHz
8 interrupts/counters
24 DC 16 NPN transistor
(sinking)
CP1H-XA40DT-D
24 VDC 24 DC 16 PNP transistor
(sourcing)
CP1H-XA40DT1-D
20
110 x 150 x 85
24 VDC 4 encoder inputs:
2 x 1 MHz, 2 x 100 kHz
4 Pulse outputs
2 x 1 MHz, 2 x
50 kHz
4 Line driver inputs:
2 input side; 2 output side
6 interrupts/counters
12 DC 8 NPN transistor
(sinking)
CP1H-Y20DT-D
