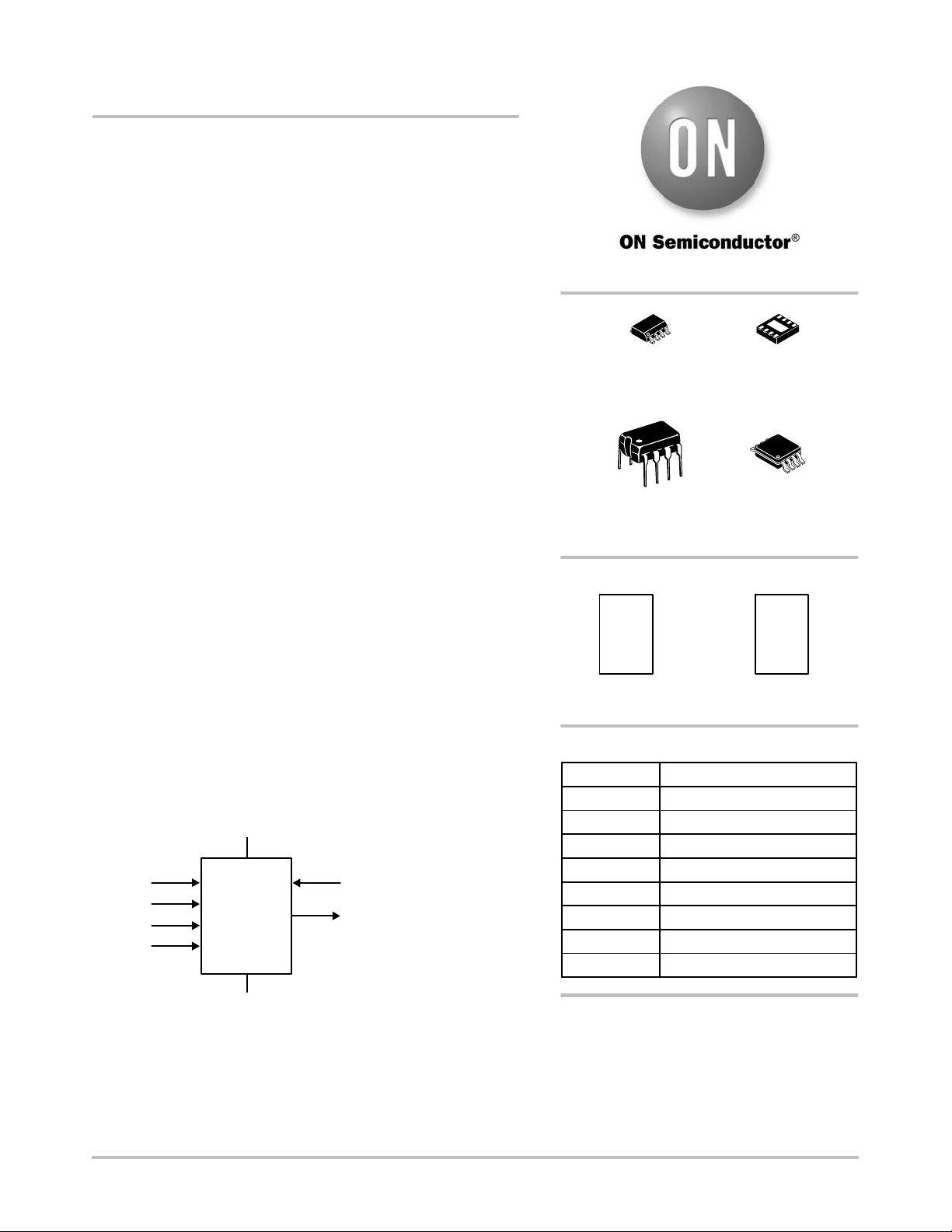

© Semiconductor Components Industries, LLC, 2013
March, 2013 − Rev. 11
1 Publication Order Number:
CAT93C86/D
CAT93C86
16 Kb Microwire Serial
EEPROM
NOT Recommended for New Designs:
Replace with CAT93C86B
Description
The CAT93C86 is a 16 Kb Serial EEPROM memory device which
is configured as either registers of 16 bits (ORG pin at V
CC
) or 8 bits
(ORG pin at GND). Each register can be written (or read) serially by
using the DI (or DO) pin. The CAT93C86 is manufactured using
ON Semiconductor’s advanced CMOS EEPROM floating gate
technology. The device is designed to endure 1,000,000 program/erase
cycles and has a data retention of 100 years. The device is available in
8−pin DIP, 8−pin SOIC and 8−pad TDFN packages.
Features
• High Speed Operation: 3 MHz
• Low Power CMOS Technology
• 1.8 V to 5.5 V Operation
• Selectable x8 or x16 Memory Organization
• Self−timed Write Cycle with Auto−clear
• Hardware and Software Write Protection
• Power−up Inadvertent Write Protection
• Sequential Read
• Program Enable (PE) Pin
• 1,000,000 Program/Erase Cycles
• 100 Year Data Retention
• Commercial, Industrial and Automotive Temperature Ranges
• 8−lead PDIP, SOIC and TDFN Packages
• These Devices are Pb−Free, Halogen Free/BFR Free, and RoHS
Compliant
ORG
DO
CAT93C86
SK
GND
V
CC
Figure 1. Functional Symbol
PE
CS
DI
Note: When the ORG pin is connected to V
CC
, the x16 organization
is selected. When it is connected to ground, the x8 pin is selected. If
the ORG pin is left unconnected, then an internal pull−up device will
select the x16 organization.
http://onsemi.com
PIN CONFIGURATION
DO
DI
SK
CS
1
See detailed ordering and shipping information in the package
dimensions section on page 11 of this data sheet.
ORDERING INFORMATION
SOIC−8
V, W SUFFIX
CASE 751BD
PDIP (L), SOIC (V, X),
TDFN (ZD4)
PDIP−8
L SUFFIX
CASE 646AA
Chip SelectCS
Clock InputSK
Serial Data InputDI
Serial Data OutputDO
Power SupplyV
CC
GroundGND
FunctionPin Name
PIN FUNCTION
TDFN−8
ZD4 SUFFIX
CASE 511AL
Memory OrganizationORG
Program EnablePE
SOIC−8
X SUFFIX
CASE 751BE
GND
ORG
PE
V
CC
SK
CS
V
CC
PE
1
DI
DO
GND
ORG
SOIC (W)
