© Semiconductor Components Industries, LLC, 2013
October, 2013 − Rev. 4
1 Publication Order Number:
CAT93C76/D
CAT93C76
8-Kb Microwire Serial
EEPROM
Description
The CAT93C76 is an 8−Kb Serial EEPROM memory device which
is configured as either registers of 16 bits (ORG pin at V
CC
or Not
Connected) or 8 bits (ORG pin at GND). Each register can be written
(or read) serially by using the DI (or DO) pin. The CAT93C76 is
manufactured using ON Semiconductor’s advanced CMOS EEPROM
floating gate technology. The device is designed to endure 1,000,000
program/erase cycles and has a data retention of 100 years. The device
is available in 8−pin PDIP, SOIC and TSSOP packages.
Features
• High Speed Operation: 3 MHz @ V
CC
≥ 2.5 V
• Low Power CMOS Technology
• 1.8 to 5.5 Volt Operation
• Selectable x8 or x16 Memory Organization
• Self−timed Write Cycle with Auto−clear
• Software Write Protection
• Power−up Inadvertant Write Protection
• 1,000,000 Program/Erase Cycles
• 100 Year Data Retention
• Industrial and Extended Temperature Ranges
• Sequential Read
• “Green” Package Option Available
• This Device is Pb−Free, Halogen Free/BFR Free and RoHS
Compliant
CS
SK
ORG
DO
DI
GND
V
CC

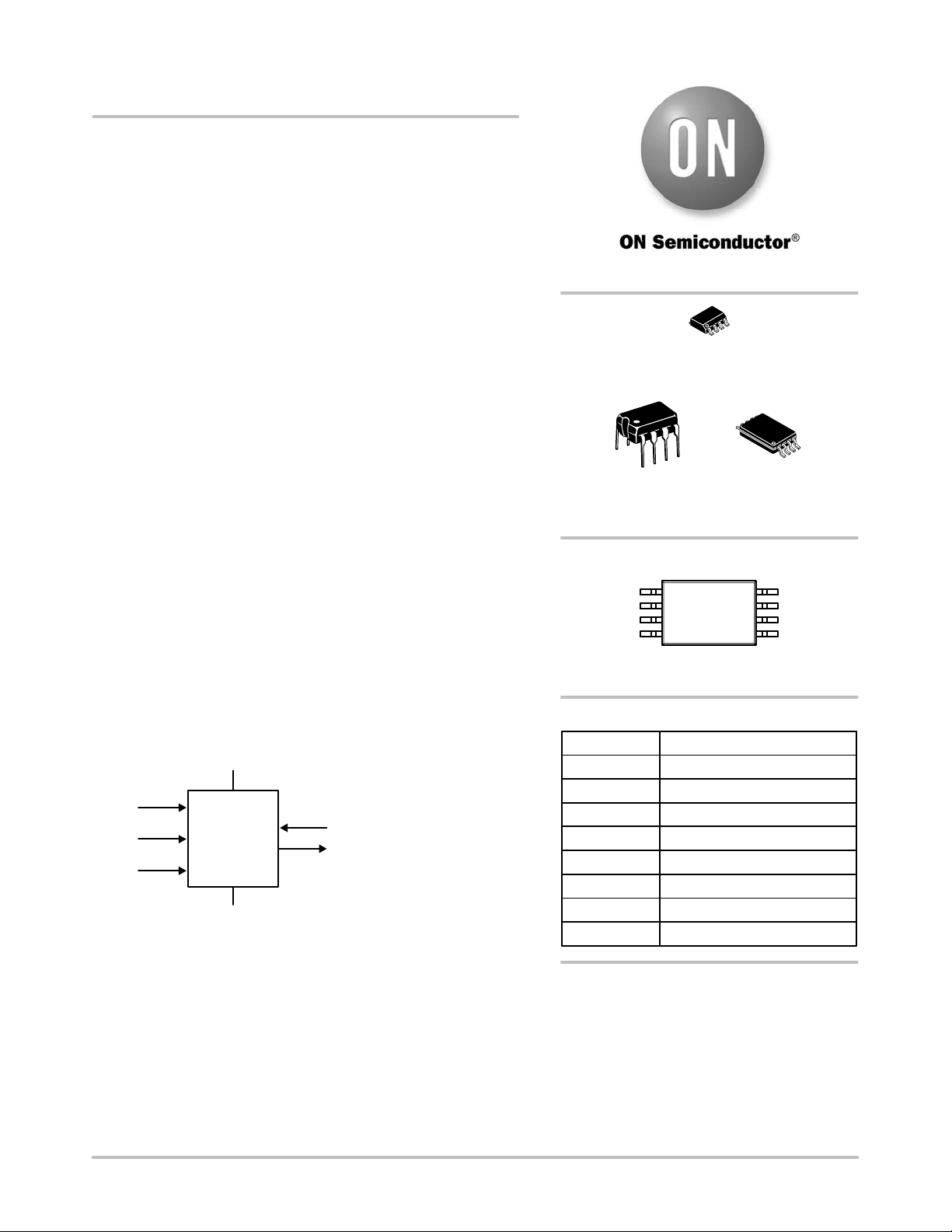

Figure 1. Functional Symbol
NOTE: When the ORG pin is connected to V
CC
, the x16 organization is selected.
When it is connected to ground, the x8 organization is selected. If the ORG pin
is left unconnected, then an internal pull−up device will select the x16 organization.
http://onsemi.com
See detailed ordering and shipping information in the package
dimensions section on page 11 of this data sheet.
ORDERING INFORMATION
PIN CONFIGURATION
GND
NC
V
CC
DO
DI
SK
CS
1
SOIC−8
V, W SUFFIX
CASE 751BD
ORG
PDIP (L), SOIC (V, W),
TSSOP (Y)
PDIP−8
L SUFFIX
CASE 646AA
TSSOP−8
Y SUFFIX
CASE 948AL
Chip SelectCS
Serial Clock InputSK
Serial Data InputDI
Serial Data OutputDO
Power SupplyV
CC
GroundGND
FunctionPin Name
PIN FUNCTION
Memory OrganizationORG
No ConnectionNC
