Programmable High-g Digital
Impact Sensor and Recorder
ADIS16204
Rev. B
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 www.analog.com
Fax: 781.461.3113 ©2007–2009 Analog Devices, Inc. All rights reserved.
FEATURES
Dual-axis sensing, ±70 g, ±37 g
14-bit resolution
Impact peak-level sample-and-hold
RSS output
Programmable event recorder
400 Hz double-pole Bessel sensor response
Digitally controlled sensitivity and bias
Digitally controlled sample rate, up to 4096 SPS
Programmable condition monitoring alarms
Auxiliary digital I/O
Digitally activated self-test
Embedded temperature sensor
Programmable power management
SPI-compatible serial interface
Auxiliary 12-bit ADC input and DAC output
Single-supply operation: +3.0 V to +3.6 V
4000 g powered shock survivability
APPLICATIONS
Crash or impact detection
Condition monitoring of valuable goods
Safety, shut-off sensing
Impact event recording
Security sensing, tamper detection

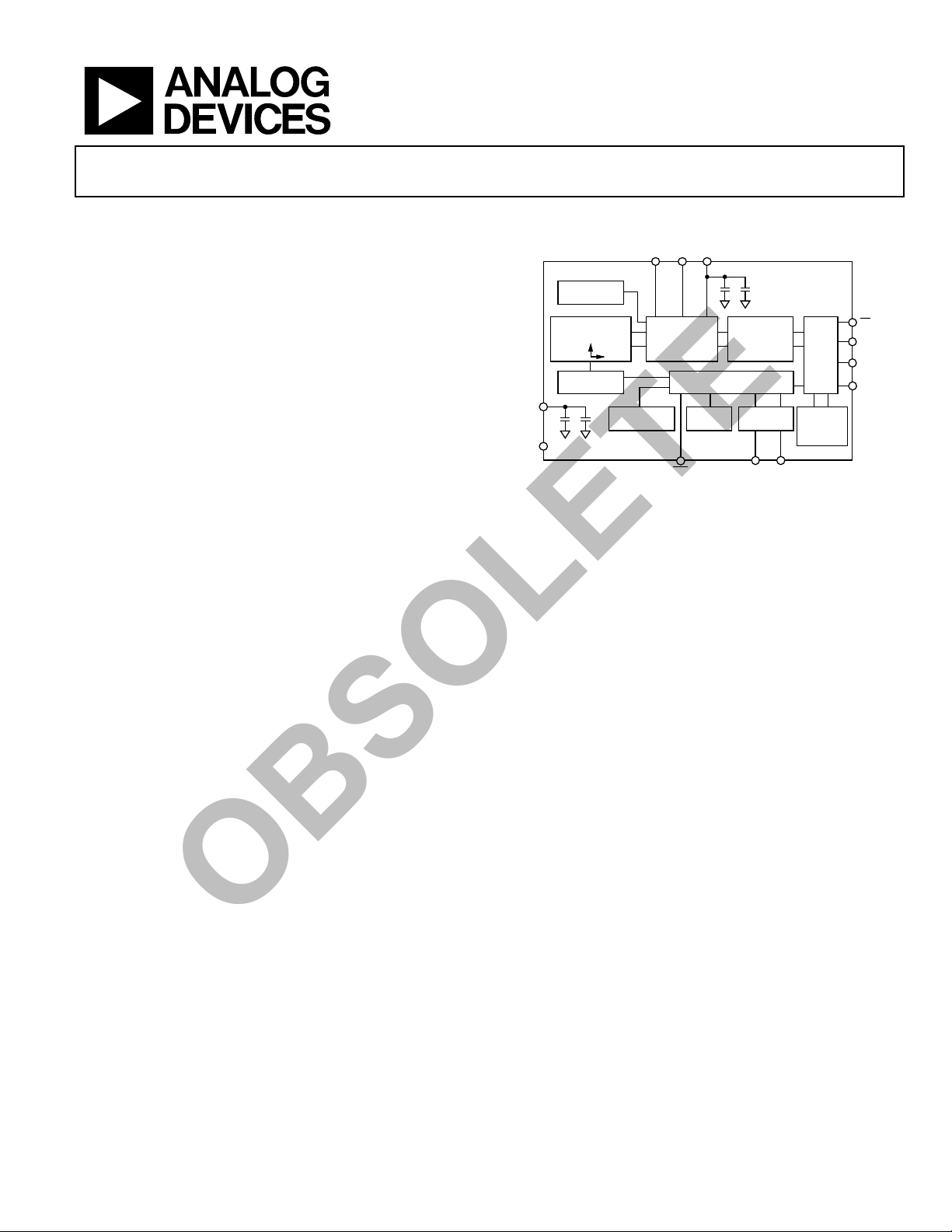

FUNCTIONAL BLOCK DIAGRAM
SCLK
DIN
DOUT
CS
RST DIO1 DIO2
SPI
PORT
TEMPERATURE
SENSOR
SELF-TEST
POWER
MANAGEMENT
AUXILIARY
I/O
EVENT
CAPTURE
BUFFER
MEMORY
ALARMS
DIGITAL
CONTROL
SIGNAL
CONDITIONING
AND
CONVERSION
DIGITAL
PROCESSING
ADIS16204
VDD
COM
A
UX
ADC
AUX
DAC
VREF
INERTIAL
MEMS
SENSOR
06448-001
Figure 1.
GENERAL DESCRIPTION
The ADIS16204 is a fully-contained programmable impact
sensor in a single compact package enabled by the Analog
Devices, Inc. iSensor™ integration. By enhancing the Analog
Devices iMEMS® sensor technology with an embedded signal
processing solution, the ADIS16204 provides tunable digital
sensor data in a convenient format that can be accessed using
a serial peripheral interface (SPI). The SPI provides access to
measurements for dual-axis linear acceleration, a root sum
square (RSS) of both axes, temperature, power supply, an
auxiliary analog input, and an event capture buffer memory. Easy
access to digital sensor data provides users with a system-ready
device, reducing development time, cost, and program risk.
Unique characteristics of the end system are accommodated
easily through several built-in features, such as a single command
in-system bias null/offset calibration, along with convenient
sample rate control.
The ADIS16204 offers the following embedded features, which
eliminate the need for external circuitry and provide a simplified
system interface:
Peak sample-and-hold
Programmable event recording (dual, 1K × 16 bit)
RSS output (total shock in the XY plane)
Configurable alarms
Auxiliary 12-bit ADC and DAC
Configurable digital I/O port
Digital self-test function
The ADIS16204 offers two power management features for
managing system-level power dissipation: low power mode
and a configurable shutdown feature.
The ADIS16204 is available in a 9.2 mm × 9.2 mm × 3.9 mm
laminate-based land grid array (LGA) package with a tem-
perature range of −40°C to +105°C.
