ZRC500
PRECISION 5.0 VOLT LOW KNEE CURRENT VOLTAGE REFERENCE
ZRC500
Document number: DS32173 Rev. 5 - 2
1 of 5
www.diodes.com
March 2012
© Diodes Incorporated
A
Product Line o
f
Diodes Incorporated
Description
The ZRC500 uses a bandgap circuit design to achieve a
precision micropower voltage reference of 5.0 volts. The
device is available in small outline surface mount packages,
ideal for applications where space saving is important, as
well as packages for through hole requirements.
The ZRC500 design provides a stable voltage without an
external capacitor and is stable with capacitive loads. The
ZRC500 is recommended for operation between 25µA and
5mA and so is ideally suited to low power and battery
powered applications.
Excellent performance is maintained to an absolute
maximum of 25mA, however the rugged design and 20 volt
processing allows the reference to withstand transient effects
and currents up to 200mA. Superior switching capability
allows the device to reach stable operating conditions in only
a few microseconds.
Features
• Small outline SOT23 packages
• No stabilizing capacitor required
• Low knee current, 19µA typical
• Typical T
C
30ppm/°C
• Typical slope resistance 0.4Ω
• ±2 and ±1% tolerance
• Industrial temperature range
• Operating current 25µA to 5mA
• Transient response, stable in less than 10µs
• Green molding compound (No Br, Sb)
Applications
• Battery powered and portable equipment
• Instrumentation
• Test equipment
• Metering and measurement systems

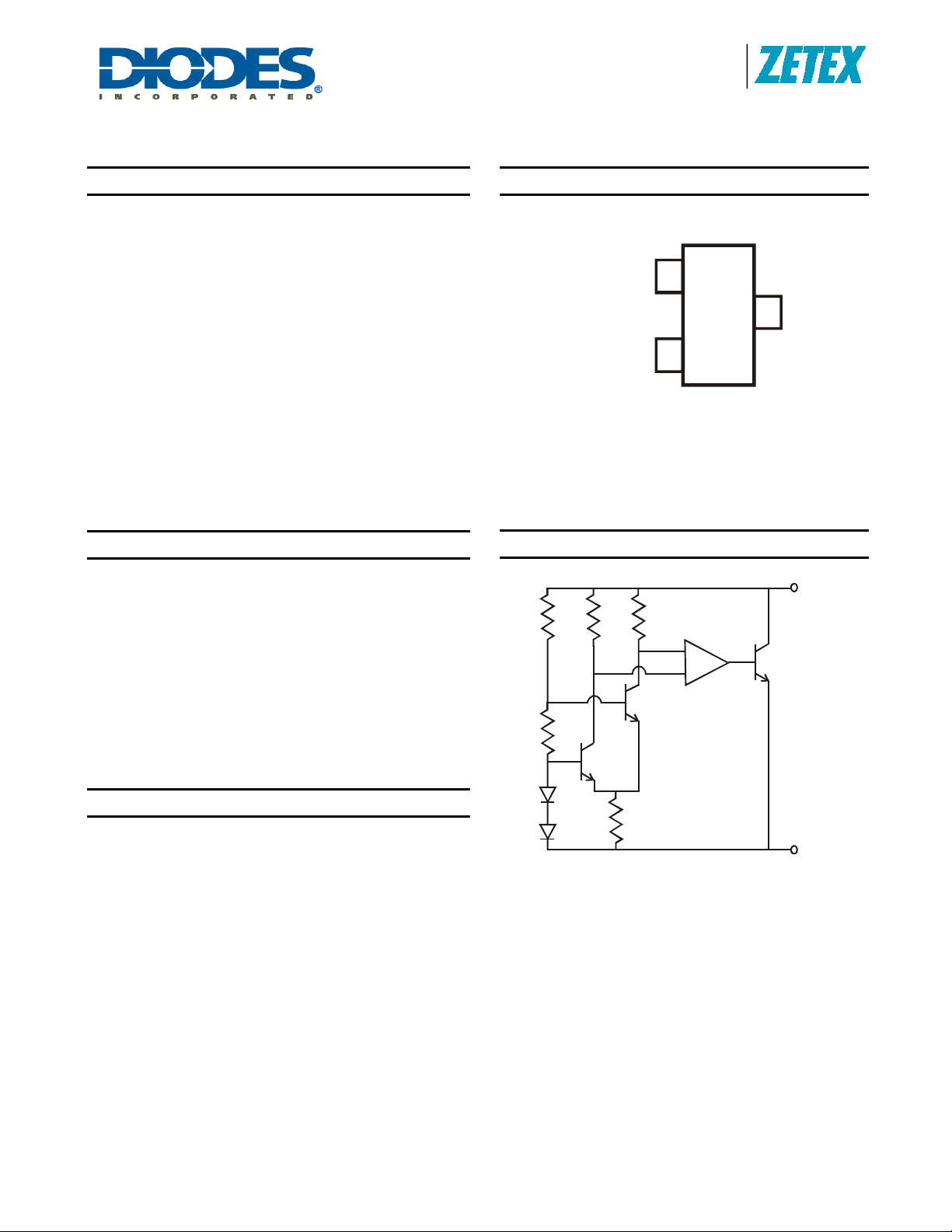

Pin Assignments
SOT23 Package Suffix – F
1
3
2
V
R
GND
(Top View)
Pin 1 floating or connected to pin 2
Typical Application Circuit
+
-
V
R
GND
