1
X60003
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774 | Copyright Intersil Americas Inc. 2005, 2006, 2010, 2011. All Rights Reserved
Intersil (and design) is a trademark owned by Intersil Corporation or one of its subsidiaries.
All other trademarks mentioned are the property of their respective owners.
Precision SOT-23 FGA™ Voltage References
X60003
The X60003 FGA™ voltage references is a very high
precision analog voltage reference fabricated in Intersil’s
proprietary Floating Gate Analog technology, which
achieves superior levels of performance when compared
to conventional band gap, buried zener, or X
FET
™
technologies.
FGA™ voltage references feature very high initial
accuracy, very low temperature coefficient, excellent long
term stability, low noise and excellent line and load
regulation, at the lowest power consumption currently
available. These voltage references enable advanced
applications for precision industrial and portable systems
operating at significantly higher accuracy and lower
power levels than can be achieved with conventional
technologies.
Applications*(see page 16)
• High Resolution A/Ds and D/As
• Digital Meters
• Calibration Systems
•V-F Converters
• Precision Current Sources
• Precision Regulators
• Precision Oscillators
•Smart Sensors
•Strain Gage Bridges
• Threshold Detectors
• Battery Management Systems
• Servo Systems
Features
• Reference Output Voltage . . . . . . 4.096V, 5.000V
• Initial Accuracy . . . . . . . . . . . ±1.0mV (B grade)
• Ultra Low Power Supply Current . . . . . . . . . 500nA
• Low Temperature Coefficient (B Grade) . 10ppm/°C
• 10mA Source and Sink Current Capability
• Very Low Dropout Voltage . . . . 100mV at No Load
• Input Voltage Range
- X60003-41 . . . . . . . . . . . . . . . . . 4.5V to 9.0V
- X60003-50 . . . . . . . . . . . . . . . . . 5.1V to 9.0V
• 5kV ESD (Human Body Model)
• Standard Package. . . . . . . . . . . . . . .3 Ld SOT-23
• Temp Range. . . . . . . . . . . . . . . . -40°C to +85°C
Related Literature*(see page 16)
•See AN1494, “Reflow and PC Board Assembly Effects
on Intersil FGA References”
•See AN1533, “X-Ray Effects on Intersil FGA
References”

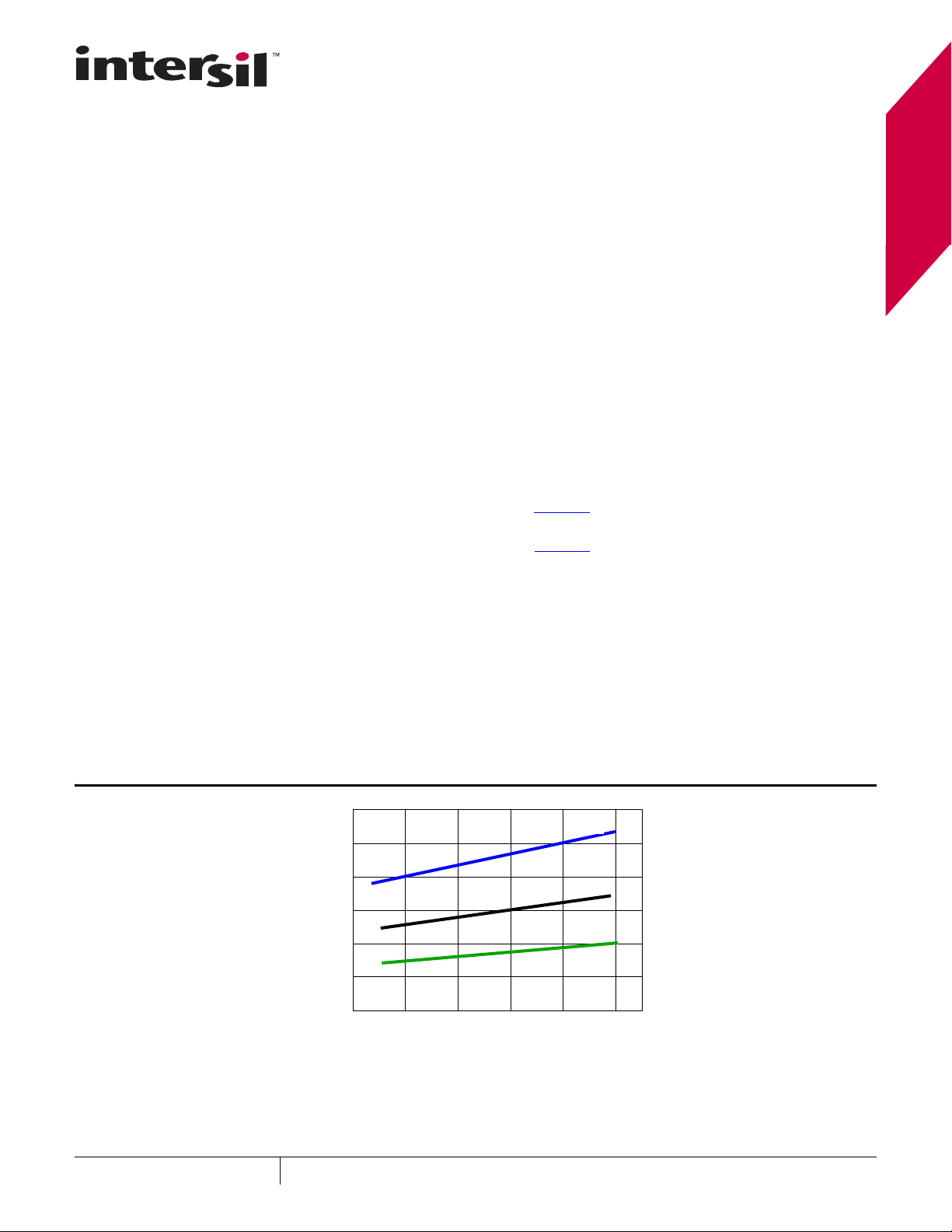

FIGURE 1. I
IN
vs V
IN
(3 UNITS)
200
300
400
500
600
700
800
4.05.06.07.08.09.0
V
IN
(V)
I
N
(nA)
HIGH
TYP
LOW
March 21, 2011
FN8137.3
