July 2016 DocID18466 Rev 3 1/50
1
UM1055
User manual
STM32100E-EVAL evaluation board
Introduction
The STM32100E-EVAL evaluation board is designed as a complete development platform
for the STMicroelectronics ARM
®
Cortex
®
-M3 core-based STM32F100 microcontroller. It
features HDMI CEC connection, FSMC (flexible static memory controller), two I2C, three
SPI, five USART, 32
Kbytes of internal SRAM, 512 Kbytes of internal Flash memory and
JTAG and SWD debugging/programming support.
The full range of hardware features available on the board help the user to evaluate all the
peripherals (HDMI CEC, SRAM, motor control, LCD, MicroSD card, serial Flash, EEPROM,
temperature sensor, speaker, IrDA, RS-232, RS-485, etc.) and to develop their own
applications.
Extension headers facilitate the connection of a daughterboard or wrapping board for user
specific applications. An ST-LINK/V2 is integrated on the board as an embedded debugger
and programmer for the STM32F100 MCU.

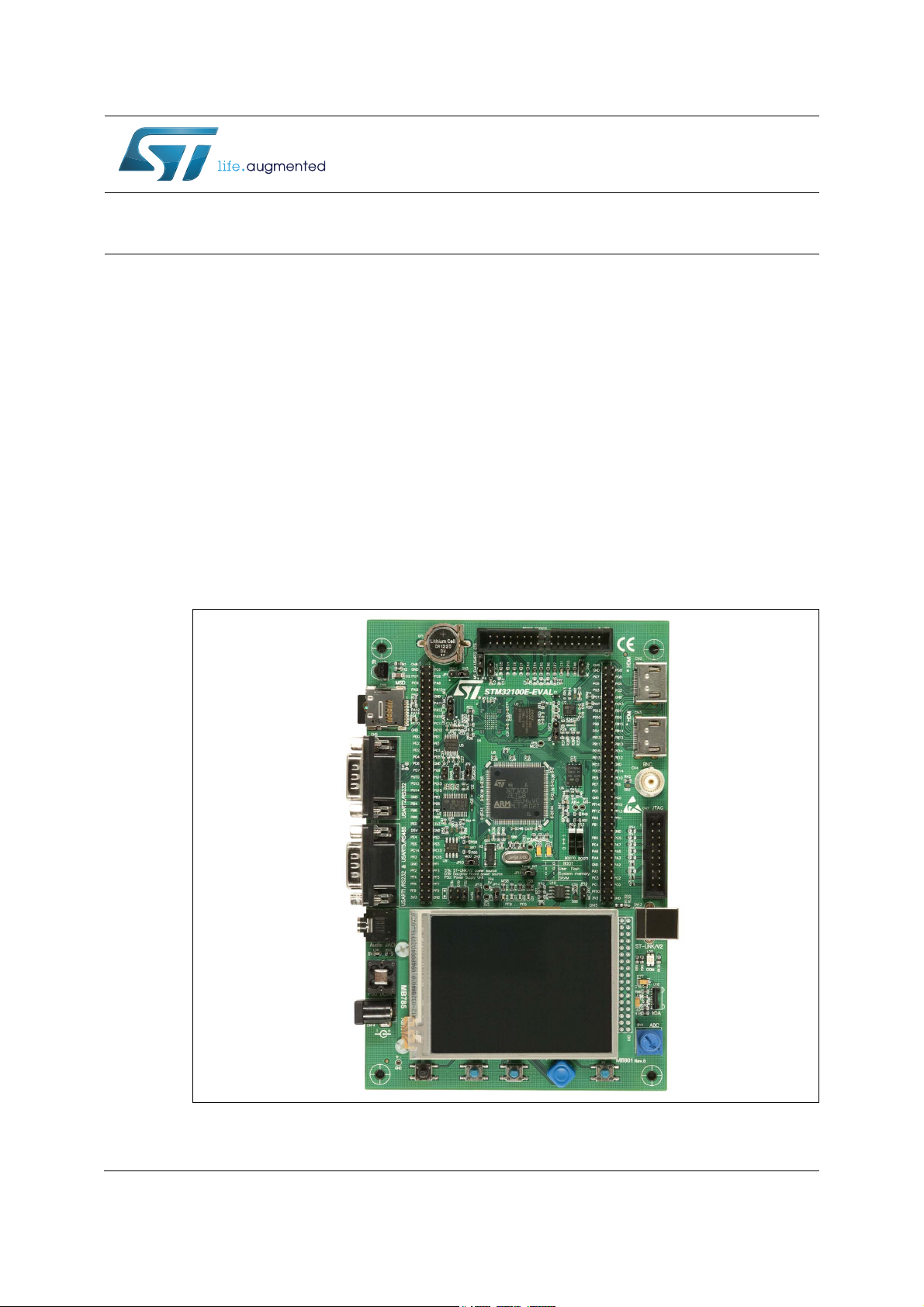

Figure 1. STM32100E-EVAL evaluation board
