Rev. 0.2 6/10 Copyright © 2010 by Silicon Labs Si5356-EVB
Si5356-EVB
Si5356 EVALUATION BOARD USER’S GUIDE
Description
The Si5356 evaluation board (EVB) is used for
evaluating the Si5356 I
2
C programmable, any
frequency 1–200 MHz, quad frequency 8-output clock
generator.
EVB Features
Fully powered from a single USB port
On-board 25 MHz XTAL allows standalone
asynchronous operation
GUI programmable V
DD
supply allows device to
operate from 3.3 V, 2.5 V, or 1.8 V (core)
GUI programmable V
DDO
supplies allows each of
the four banks of outputs to have its own supply
voltage selectable from 3.3 V, 2.5 V, and 1.8 V
GUI controlled voltage, current, and power
measurements of V
DD
and all four V
DDO
supplies.
Voltage supply jumpers allows easy access for use
of external supplies or current measurements.

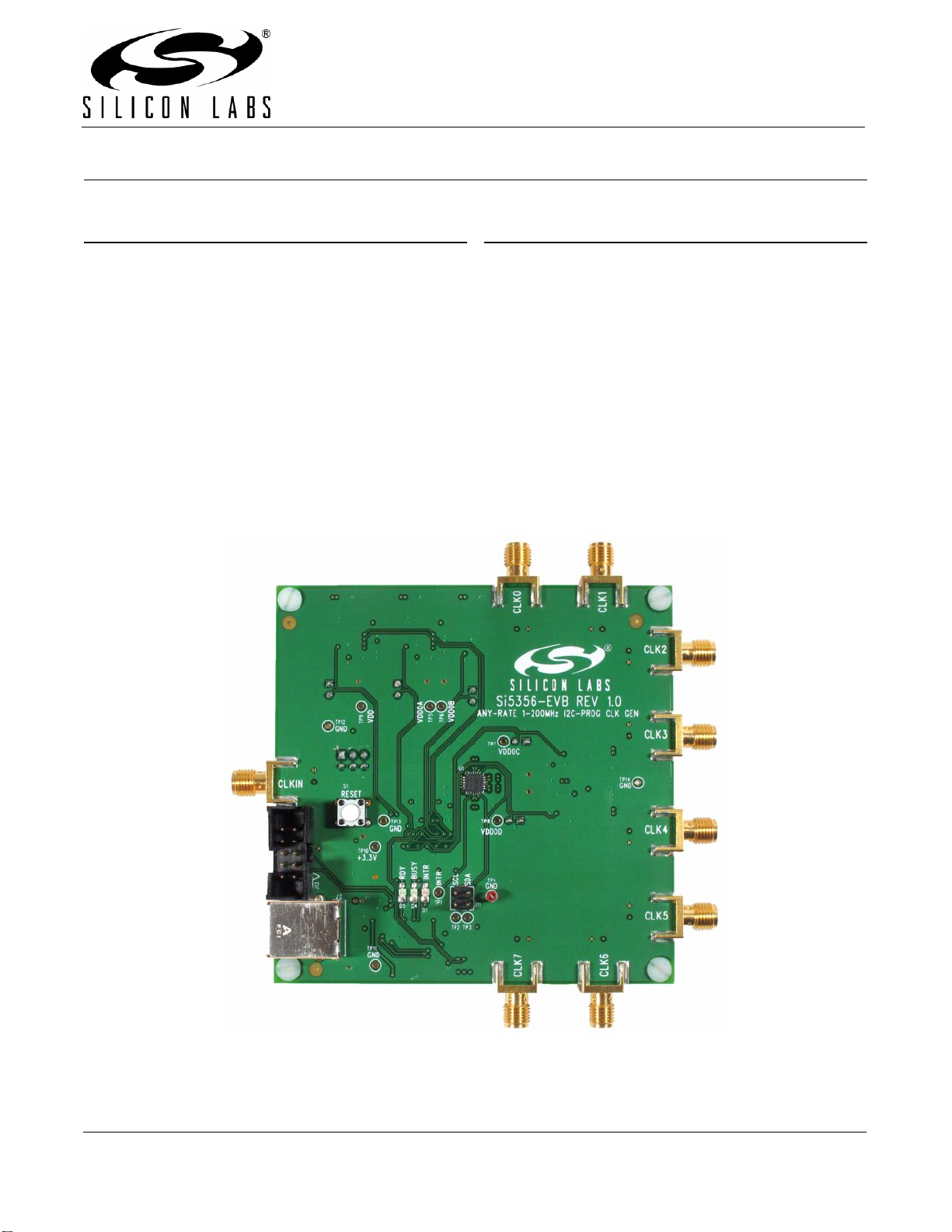

Figure 1. Si5356 Evaluation Board
