Rev. 0.9 7/16 Copyright © 2016 by Silicon Laboratories Si5340-D-EVB
Si5340-D-EVB
Si5340-D EVALUATION BOARD USER’S GUIDE
Description
The Si5340-D-EVB is used for evaluating the Si5340
Any-Frequency, Any-Output, Jitter-Attenuating Clock
Multiplier revision D. The device revision is
distinguished by a white 1 inch x 0.187 inch label with
the text “SI5340-D-EB” installed in the lower left hand
corner of the board. (For ordering purposes only, the
terms “EB” and “EVB” refer to the board and the kit
respectively. For the purpose of this document, the
terms are synonymous in context.)
Features
Powered from USB port or external power supply
Onboard 48 MHz XTAL allows free-run mode of
operation on the Si5340 or up to 3 input clocks for
synchronous clocking
Feedback clock input for optional zero delay mode
CBPro
TM
GUI-programmable VDD supply allows
device to operate from 3.3, 2.5, or 1.8 V.
CBPro GUI-programmable VDDO supplies allow
each of the 4 outputs to have its own supply voltage
selectable from 3.3, 2.5, or 1.8 V
CBPro GUI-controlled voltage, current, and power
measurements of VDD and all VDDO supplies.
Status LEDs for power supplies and control/status
signals of Si5340
SMA connectors for input and output clocks

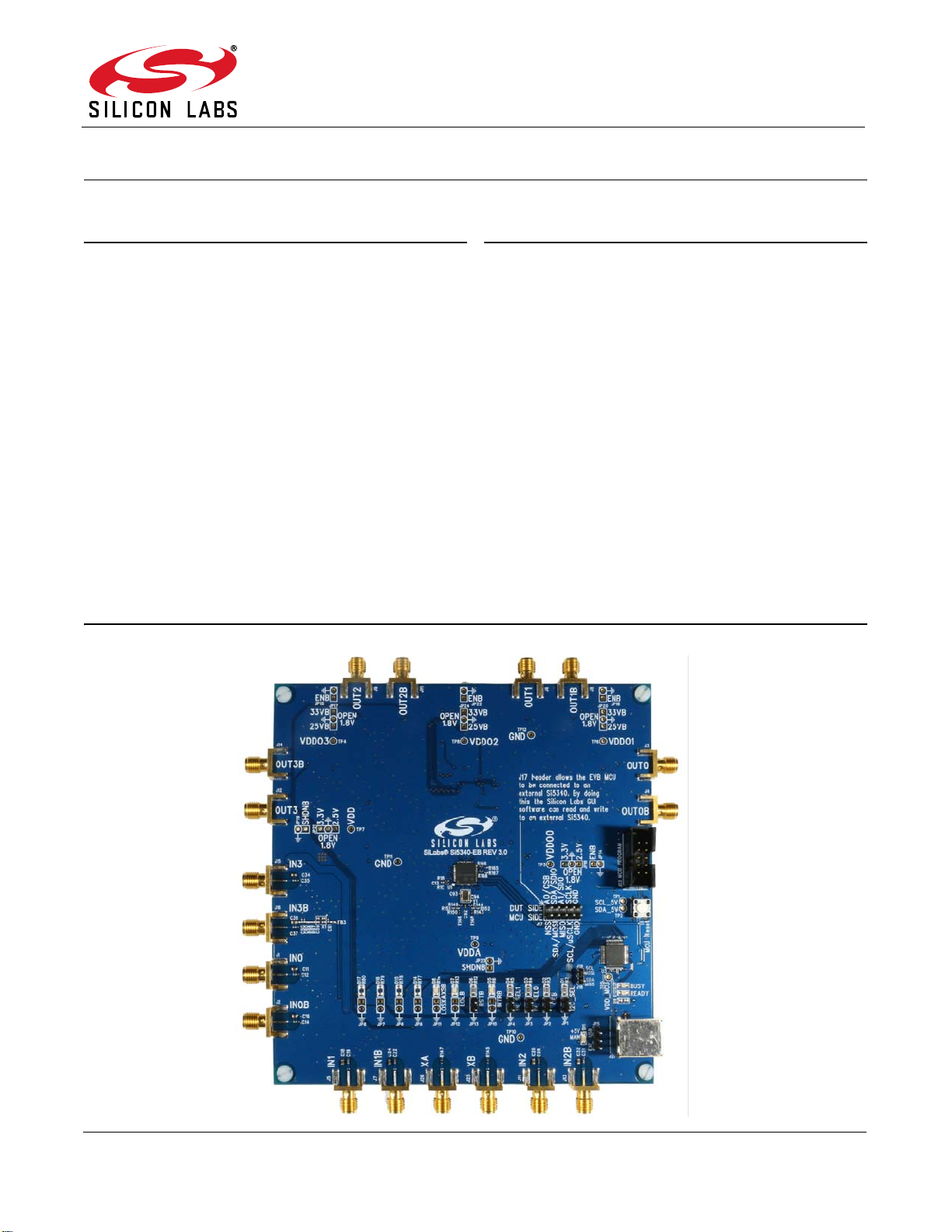

Si5340-D Evaluation Board
