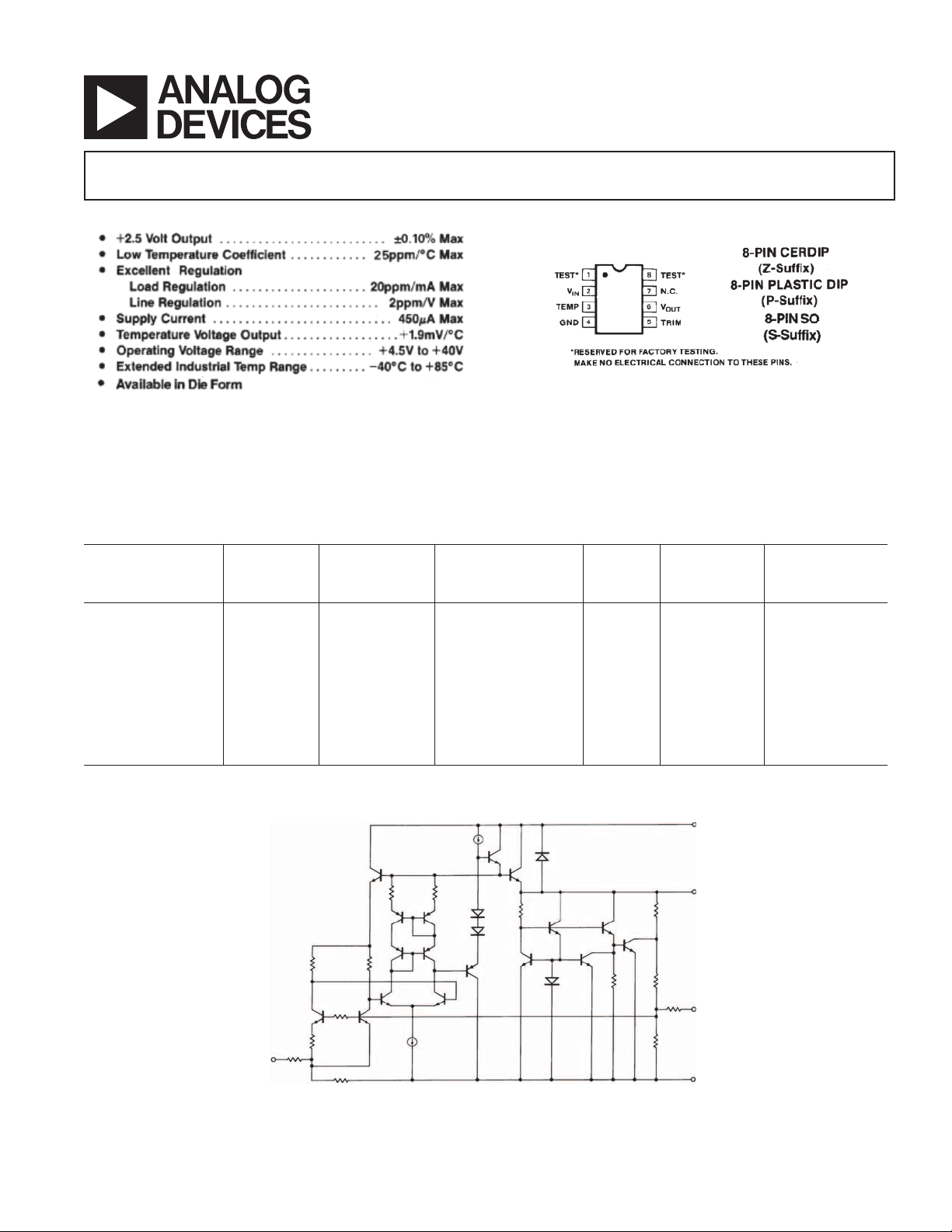

REF43
+2.5 V Low Power Precision
Voltage Reference
FEATURES
PIN CONFIGURATION
GENERAL DESCRIPTION
The REF43 is a low power precision reference providing a
stable 2.5 V output independent of variations in supply voltage,
load conditions or ambient temperature. It is suitable as a
reference level for 8-, 10- and 12-bit data acquisition systems,
or wherever a stable, known voltage is required.
SIMPLIFIED SCHEMATIC
ORDERING GUIDE
Number of
Initial Temperature Package Package Part per Temperature
Model Accuracy Coefficient Description Option Reel/Tray Range
REF43FZ 0.06% 10ppm/∞C 8-Pin Hermetic DIP Q-8 48 –40∞C to +85∞C
REF43GZ 0.10% 25ppm/∞C 8-Pin Hermetic DIP Q-8 48 –40∞C to +85∞C
REF43GP 0.10% 25ppm/∞C 8-Pin Plastic DIP N-8 50 –40∞C to +85∞C
REF43GS 0.10% 25ppm/∞C 8-Pin SOIC R-8 98 –40∞C to +85∞C
REF43GS-REEL 0.10% 25ppm/∞C 8-Pin SOIC R-8 2,500 –40∞C to +85∞C
REF43GS-REEL7 0.10% 25ppm/∞C 8-Pin SOIC R-8 1,000 –40∞C to +85∞C
REF43GSZ* 0.10% 25ppm/∞C 8-Pin SOIC R-8 98 –40∞C to +85∞C
REF43GSZ-REEL7* 0.10% 25ppm/∞C 8-Pin SOIC R-8 1,000 –40∞C to +85∞C
REF43NBC 0.20% Die 221
*Z = Pb-free part.
Tight output tolerances and low thermal drift are assured by
zener-zap trimming of both output voltage and its temperature
coefficient. A unique curvature correction circuit reduces the
thermal curvature which is characteristic of many previous
bandgap references.
TEMP
V
IN
V
OUT
TRIM
GROUND
