RI-TRP-DR2B
SCBS842B –SEPTEMBER 2001–REVISED AUGUST 2014
RI-TRP-DR2B 32-mm Glass Transponder
1 Device Overview
1.1 Features
1
• Best-in-Class Performance Through Patented Half- • MPT 1360-Bit Type
Duplex (HDX) Technology
• ISO 11784/11785 Compliant
• Patented Transponder Tuning Provides Stable and
• Insensitive to Almost All Nonmetallic Materials
High Read and Write Performance
1.2 Applications
• Access Control • Asset Management
• Vehicle Identification • Waste Management
• Container Tracking
1.3 Description
Texas Instruments' 32-mm glass transponders provide superior performance and operate at a resonance
frequency of 134.2 kHz. Specific products are compliant to ISO/IEC 11784/11785 global open standards.
Texas Instruments LF transponders are manufactured with TI's patented tuning process to provide
consistent read and write performance. Before delivery, the transponders undergo complete functional and
parametric testing to provide the high quality customers have come to expect from TI. The transponder is
well suited for use in a broad range of applications including, but not limited to, access control, vehicle
identification, container tracking, asset management, and waste management applications.
Table 1-1. Device Information
(1)
PART NUMBER PACKAGE (PIN) BODY SIZE
(2)
RI-TRP-DR2B TGB (0) 3.85 mm x 32.2 mm
(1) For the most current device, package, and ordering information, see the Package Option Addendum in
Section 5, or see the TI web site at www.ti.com.
(2) The sizes shown here are approximations. For the package dimensions with tolerances, see the
Mechanical Data in Section 5.

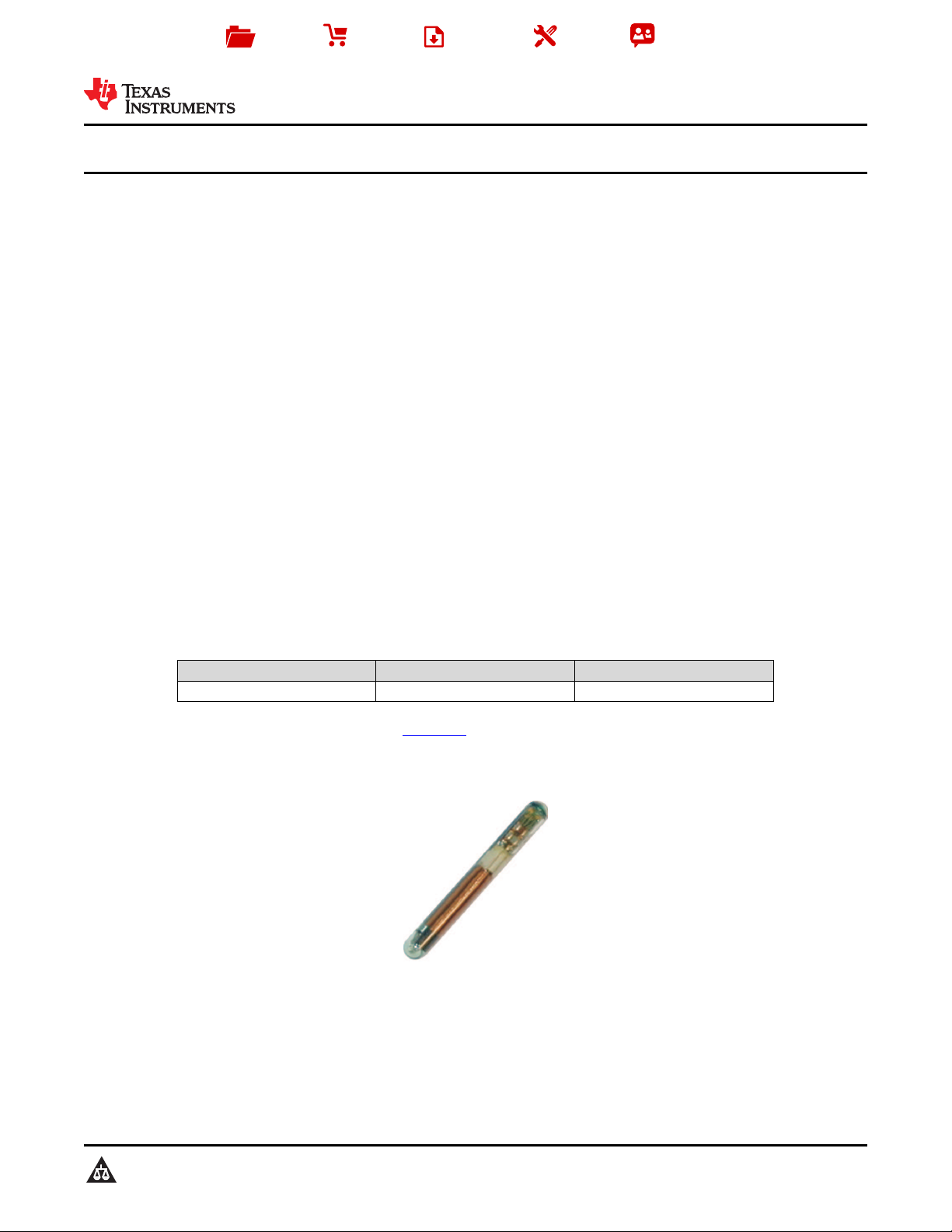

Figure 1-1 shows the RI-TRP-DR2B transponder.
Figure 1-1. RI-TRP-DR2B Transponder
1
