Semiconductor Components Industries, LLC, 2013
May, 2013 − Rev. 1
1 Publication Order Number:
EVBUM2179/D
NCL30083FLYGEVB,
NCL30083BB1GEVB
10 W Passive PFC Flyback
and BuckBoost Dimmable
LED Driver Evaluation
Board User's Manual
Introduction
This documentation package covers two NCL30083 LED
driver implementations illustrating their use in an E26/E27
based A, PAR and BR LED lamps form factor. The
Electronic Circuit Assembly (ECA) is designed to support
either an isolated flyback or non-isolated buck-boost
configuration. The nominal total power is 10 W for either
application. The selection is controlled through selective
component population of the ECA.

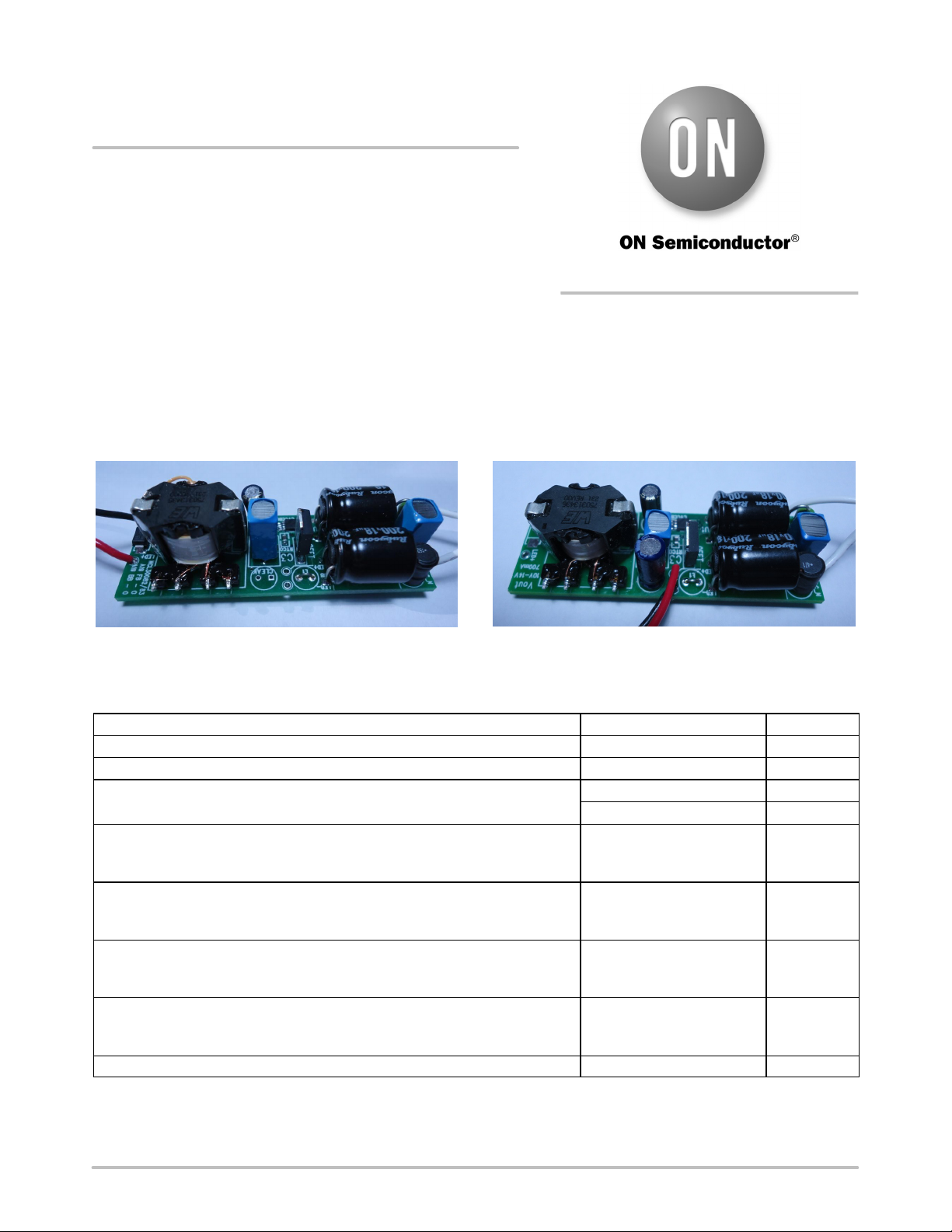

Figure 1. NCL30083FLYGEVB − Flyback Figure 2. NCL30083BB1GEVB − Buck-Boost
Table 1. DESIGN PARAMETER
Input Voltage 100 – 265 V ac
Line Frequency 50 Hz/60 Hz
Power Factor > 0.7
Safety (Designed to Meet)
IEC61347-2-13 EU
UL8750 US
Optimized Output Voltage Range
Flyback (NCL30083FLYGEVB)
Buck Boost (NCL30083BB1GEVB)
9.6 – 22.1 V dc
30 – 60 V dc
Output Current
Flyback (NCL30083FLYGEVB)
Buck Boost (NCL30083BB1GEVB)
500 mA dc
195 mA dc
2 %
Output Ripple
Flyback (NCL30083FLYGEVB)
Buck Boost (NCL30083BB1GEVB)
200 mA P-P
50 mA P-P
Efficiency
Flyback (NCL30083FLYGEVB)
Buck Boost (NCL30083BB1GEVB)
85%
90%
Typ.
Start Up Time < 500 msec Typ.
http://onsemi.com
EVAL BOARD USER’S MANUAL
