Soldering Guidelines for Film Capacitors
www.vishay.com
Revision: 04-Aug-15
1
Document Number: 28171
For technical questions, contact: dc-film@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
APPLICATION NOTE
Vishay recommends that users observe the following guidelines for soldering our film capacitors. Adherence to these
recommendations will help to safeguard product specifications and reliability while preventing damage to the capacitors during
soldering.
SOLDERING GUIDELINES AND RECOMMENDED WAVE SOLDERING PROFILE
With regard to the resistance to soldering heat and the solderability, our products comply with “IEC 60384-1” and the additional
type specifications.

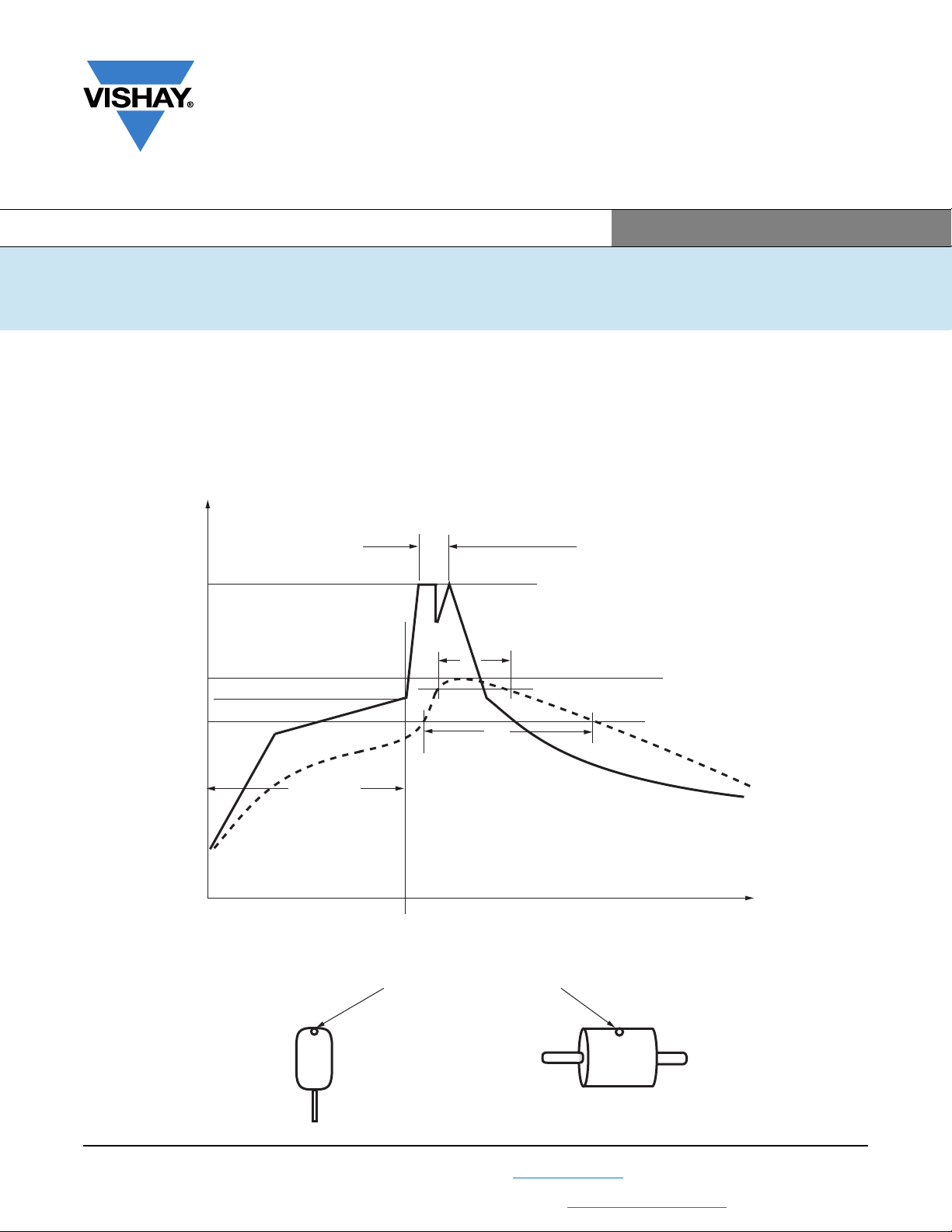

The recommended wave soldering profile for our leaded components is defined as follows:
260
T
p
- 5 °C
T
preheat
T
p
T
max.
T
solder prole
T
component (body)
Preheating
Total contact time < 5 s
Maximum solder temperature
t
t
p
T
p
: Peak temperature of the component body (top)
T
max.
: Maximum application temperature of the component
0
< 150 Time (s)
Temperature (°C)
Temperature of the component body (top)
