Semiconductor Components Industries, LLC, 2006
August, 2016 − Rev. 8
1 Publication Order Number:
MC10H115/D
MC10H115
Quad Line Receiver
Description
The MC10H115 is a quad differential amplifier designed for use in
sensing differential signals over long lines. This 10H part is a
functional/pinout duplication of the standard MECL 10K family
part, with 100% improvement in counting frequency and no increase
in power supply current.
The base bias supply (V
BB
) is made available at Pin 9 to make the
device useful as a Schmitt trigger, or in other applications where a
stable reference voltage is necessary. Active current sources provide
the MC10H115 with excellent common mode rejection. If any
amplifier in a package is not used, one input of that amplifier must be
connected to V
BB
(Pin 9) to prevent upsetting the current source bias
network.
The MC10H115 is designed to be used in sensing differential
signals over long lines. The bias supply (V
BB
) is made available to
make the device useful as a Schmitt trigger, or in other applications
where a stable reference voltage is necessary.
Active current sources provide these receivers with excellent
common-mode noise rejection. If any amplifier in a package is not
used, one input of that amplifier must be connected to V
BB
to prevent
unbalancing the current source bias network.
The MC10H115 does not have internal input pulldown resistors.
This provides high impedance to the amplifier input and facilitates
differential connections.
Features
• Propagation Delay, 1.0 ns Typical
• Power Dissipation 110 mW Typ/Pkg (No Load)
• Improved Noise Margin 150 mV
(Over Operating Voltage and Temperature Range)
• Voltage Compensated
• MECL 10K Compatible
Applications
• Low Level Receiver
• Voltage Level Interface
• Schmitt Trigger
• These Devices are Pb-Free, Halogen Free and are RoHS Compliant
www.onsemi.com
*For additional marking information, refer to
Application Note AND8002/D
.
A = Assembly Location
WL, L = Wafer Lot
YY, Y = Year
WW, W = Work Week
G = Pb-Free Package

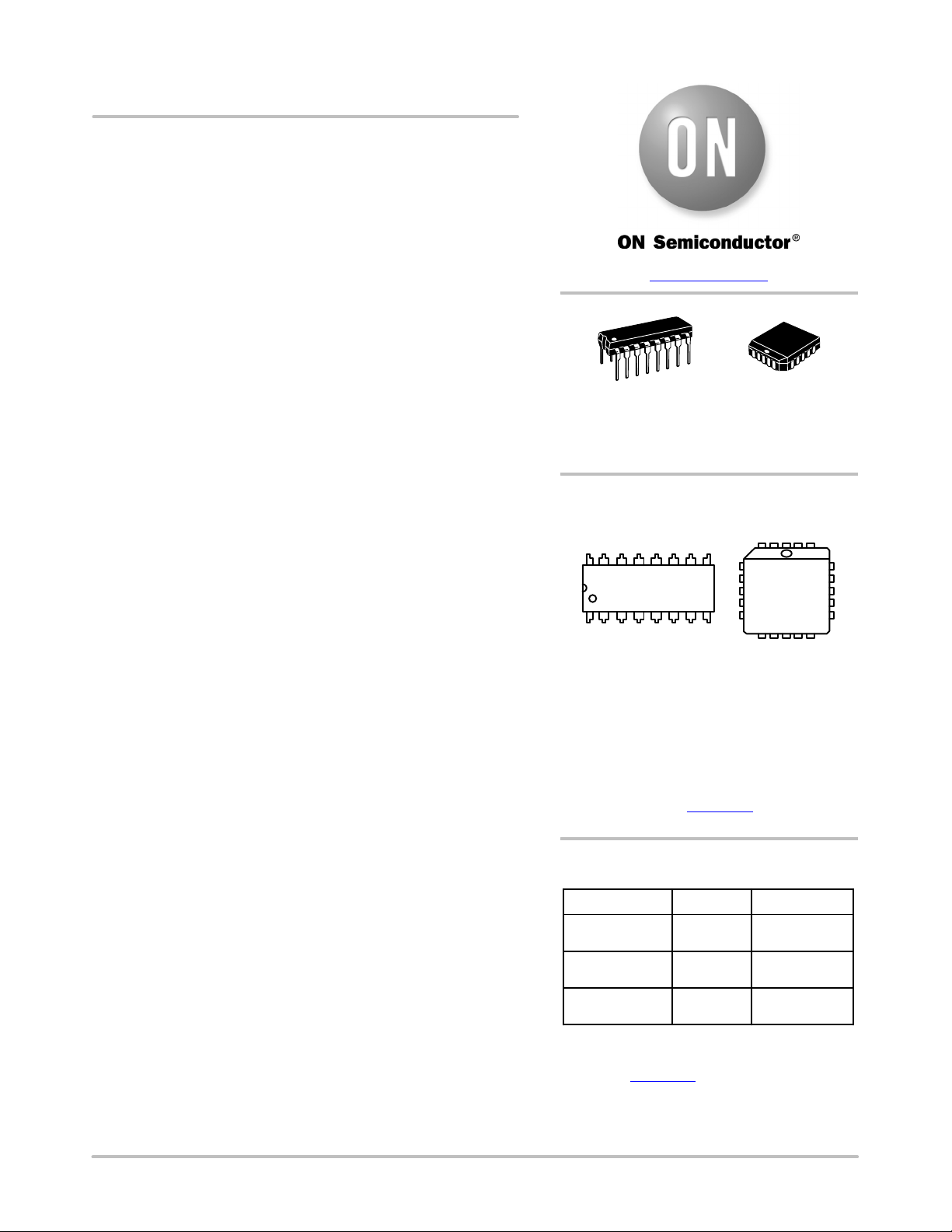

MARKING DIAGRAMS*
PDIP−16
P SUFFIX
CASE 648−08
16
1
16
1
MC10H115P
AWLYYWWG
PLLC−20
FN SUFFIX
CASE 775−02
20
1
10H115G
AWLYYWW
120
PDIP−16 PLLC−20
ORDERING INFORMATION
Device Package Shipping†
MC10H115FNR2G
500 Tape & Reel
MC10H115FNG
PLLC−20
(Pb-Free)
46 Units / Tube
MC10H115PG PDIP−16
(Pb-Free)
25 Units / Tube
PLLC−20
(Pb-Free)
†For information on tape and reel specifications, in-
cluding part orientation and tape sizes, please refer
to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D
.
