User's Guide
SNAA068B–July 2009–Revised May 2013
AN-1966 LMH2190 Evaluation Board
1 General Description
The evaluation board (Figure 1) is designed to help the evaluation of the LMH2190 Quad Channel 26 MHz
Clock Tree Driver with I
2
C™ interface. The LMH2190 provides a digital system clock to peripheral devices
in mobile handsets. It provides a solution to clocking issues such as limited drive capability for fanout or
longer traces, protection of the master clock from varying loads and frequency pulling effects, isolation
buffering from noisy modules, and crosstalk isolation. It has very low phase noise which enables it to drive
sensitive modules such as Wireless LAN and Bluetooth.

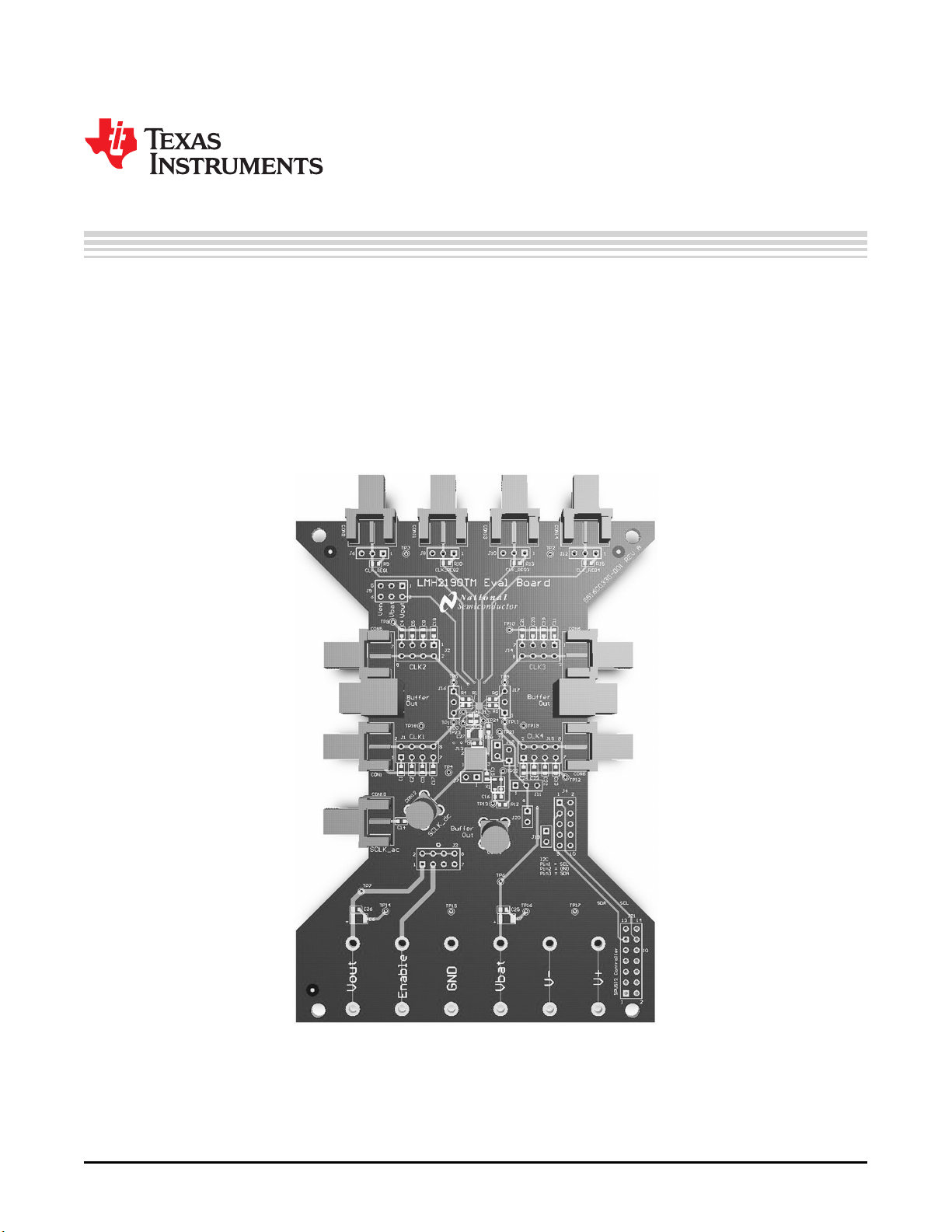

Figure 1. LMH2190 Evaluation Board
I
2
C is a trademark of Philips Semiconductor Corp.
All other trademarks are the property of their respective owners.
