EV-ADF4355-3SD1Z User Guide
UG-873
One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the ADF4355-3 Fractional-N/Integer-N PLL Frequency Synthesizer
Rev. 0 | Page 1 of 18
FEATURES
Self contained board, including ADF4355-3 frequency
synthesizer with integrated VCO, differential 122.88 MHz
temperature controlled crystal oscillator (TCXO), loop
filter (35 kHz), USB interface, and voltage regulators
Windows®-based software allows control of synthesizer
functions from a PC
Externally powered by 6 V
EVALUATION KIT CONTENTS
EV-ADF4355-3SD1Z
USB cable
EQUIPMENT NEEDED
Windows-based PC with USB port for evaluation software
System demonstration platform, serial only (SDP-S)
EVAL-SDP-CS1Z controller board
Power supply (6 V)
Spectrum analyzer
50 Ω terminators
ONLINE RESOURCES
Documents Needed
ADF4355-3 data sheet
EV-ADF4355-3SD1Z user guide
PLL Software Installation Guide
Required Software
Analog Devices, Inc., ADF4355-3 software, Version 0.46.1
or higher (available for download at
www.analog.com/ADF4355-3)
GENERAL DESCRIPTION
The EV-ADF4355-3SD1Z evaluates the performance of the
ADF4355-3 frequency synthesizer with integrated VCO for
phase-locked loops (PLLs). A photograph of the evaluation
board is shown in Figure 1. The evaluation board contains the
ADF4355-3 frequency synthesizer with integrated VCO, a
differential 122.88 MHz reference (TCXO), a loop filter, a USB
interface, power supply connectors, and subminiature Version A
(SMA) connectors. A USB cable is included to connect the
board to a PC USB port.
For easy programming of the synthesizer, download the
Windows-based software from www.analog.com/ADF4355-3.
This board requires an SDP-S (shown in Figure 1, but not
supplied with the kit). The SDP-S allows software programming
of the EV-ADF4355-3SD1Z device.

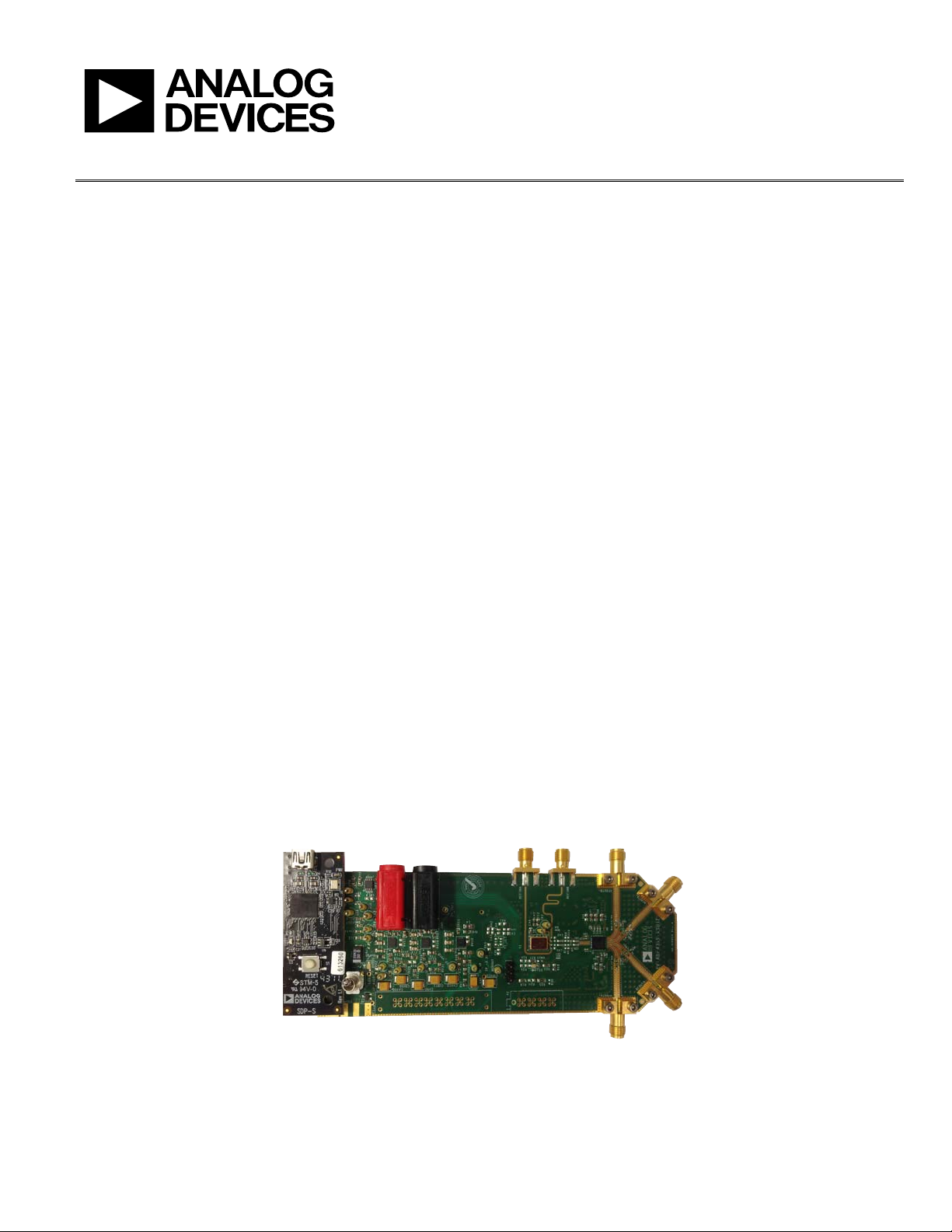

EVALUATION BOARD PHOTOGRAPH
13451-001
Figure 1. EV-ADF4355-3SD1Z
