3.3 VIO VIN
SDASCL
SWUSB2ANY
GND
HWEN
CL
COUT
CIN
VOUT
GND
TX1
SDA
SCL
GND
NTC
STROBE
TX2
RS
VSENSE
TX2
TX1
LEDI/NTC
LED
OUT
GND
HWEN
STROBE
IN
LM3561
GND
VIN
GND
RSDA
RSCL
RHWEN
RSDA
B1
LED
LEDI
(10PF)
(10PF) (10PF)
(Flash LED)
(Red LED)
(4.7k:
(4.7k:
(4.7k:
(Push-Button
(0.1:
L1
(1PH)
User's Guide
SNOU103–MAY 2013
AN-2252 LM3561 Evaluation Kit
1 Introduction
The LM3561 is a 2-MHz fixed-frequency current-mode synchronous boost converter. The device is
designed to operate as a single 600-mA constant current driver for high-current white LEDs. The high-side
current source allows for grounded cathode LED operation while the 250-mV regulated headroom voltage
ensures that the LED current is well regulated and efficiency remains high.
The LM3561EVM is designed to fully evaluate the LM3561 Boost Converter + White LED Camera Flash
LED driver. The board comes populated with a single Flash LED (LXCL-EYW4 from Lumileds), and an
indicator LED (LEDI). For each input/output of the LM3561 there is a dedicated header pin for testing
purposes. The LM3561EVM is included with a USB2ANY Module which interfaces the LM3561EVM with
the downloadable Graphical User Interface (LM3561.exe GUI) available at (www.ti.com).

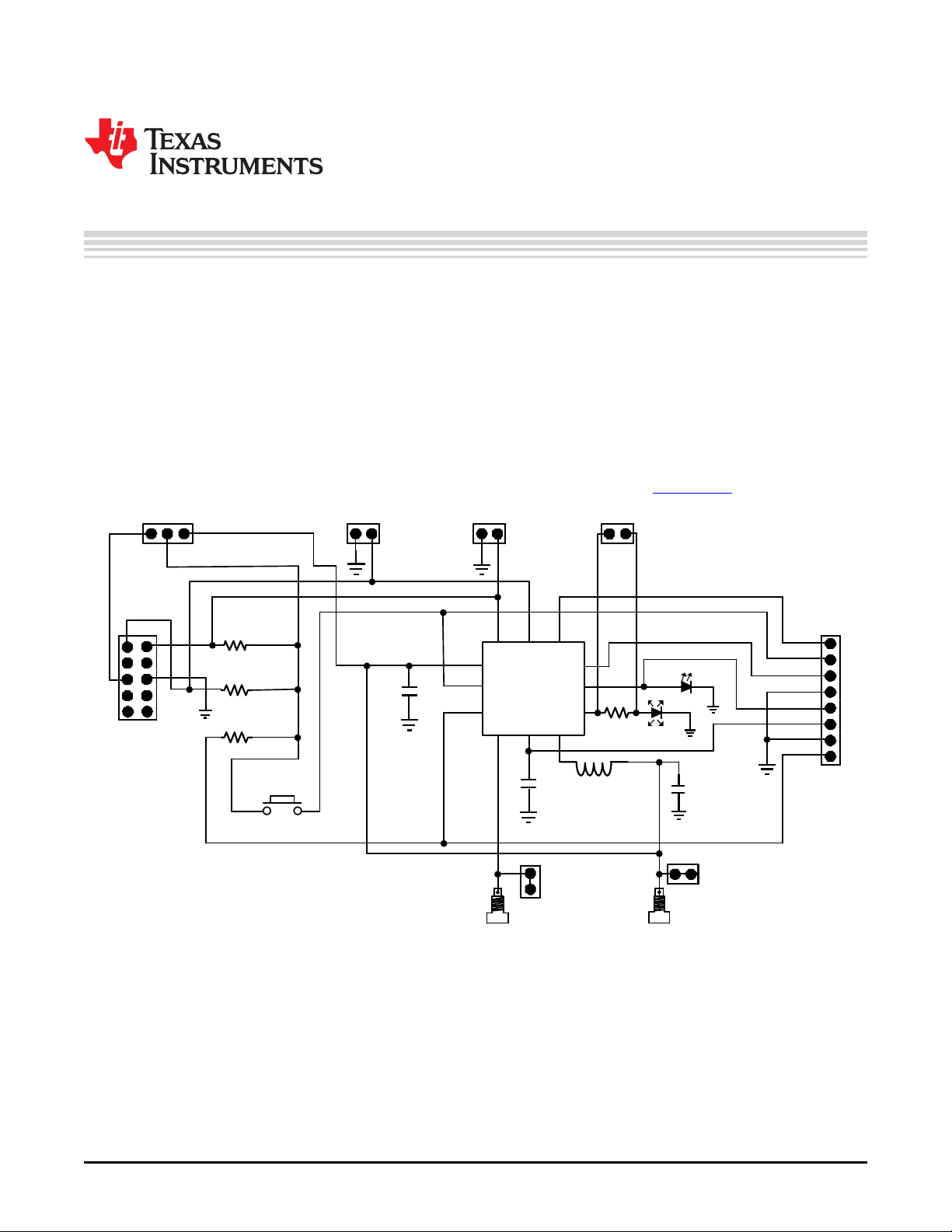

Figure 1. LM3561 Evaluation Board Schematic
All trademarks are the property of their respective owners.
