User's Guide
SNVA407B–August 2009–Revised May 2013
AN-1993 LM3406HV Evaluation Board with 2 Wire
Dimming
1 Introduction
The LM3406HV is a buck regulator controlled current source designed to drive a series string of high
power, high brightness LEDs (HBLEDs) such as the Luxeon™ K2 Emitter at forward currents of up to
1.5A. The converter's output voltage adjusts as needed to maintain a constant current through the LED
array.

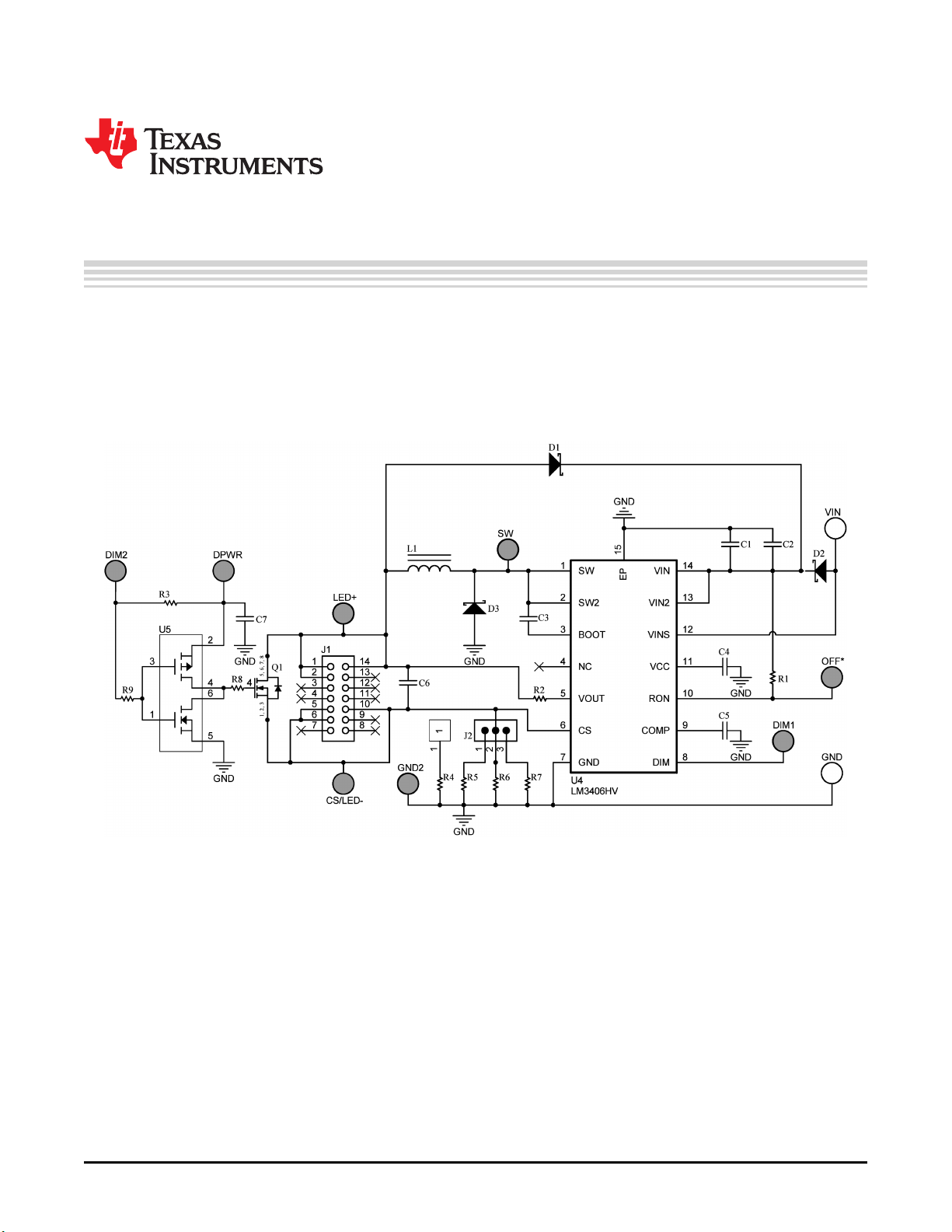

Figure 1. Complete Circuit Schematic
All trademarks are the property of their respective owners.
