LM136-2.5-N
www.ti.com
SNVS749F –MAY 1998–REVISED APRIL 2013
LM136-2.5-N, LM236-2.5-N, LM336-2.5-NV Reference Diode
Check for Samples: LM136-2.5-N
1
FEATURES
The LM136-2.5-N series is useful as a precision 2.5V
2
• Low Temperature Coefficient
low voltage reference for digital voltmeters, power
• Wide Operating Current of 400 μA to 10 mA
supplies or op amp circuitry. The 2.5V make it
• 0.2Ω Dynamic Impedance
convenient to obtain a stable reference from 5V logic
supplies. Further, since the LM136-2.5-N operates as
• ±1% Initial Tolerance Available
a shunt regulator, it can be used as either a positive
• Specified Temperature Stability
or negative voltage reference.
• Easily Trimmed for Minimum Temperature Drift
The LM136-2.5-N is rated for operation over −55°C to
• Fast Turn-On
+125°C while the LM236-2.5-N is rated over a −25°C
to +85°C temperature range.
DESCRIPTION
The LM336-2.5-N is rated for operation over a 0°C to
The LM136-2.5-N/LM236-2.5-N and LM336-2.5-N
+70°C temperature range. See the connection
integrated circuits are precision 2.5V shunt regulator
diagrams for available packages.
diodes. These monolithic IC voltage references
operate as a low-temperature-coefficient 2.5V zener
with 0.2Ω dynamic impedance. A third terminal on the
LM136-2.5-N allows the reference voltage and
temperature coefficient to be trimmed easily.

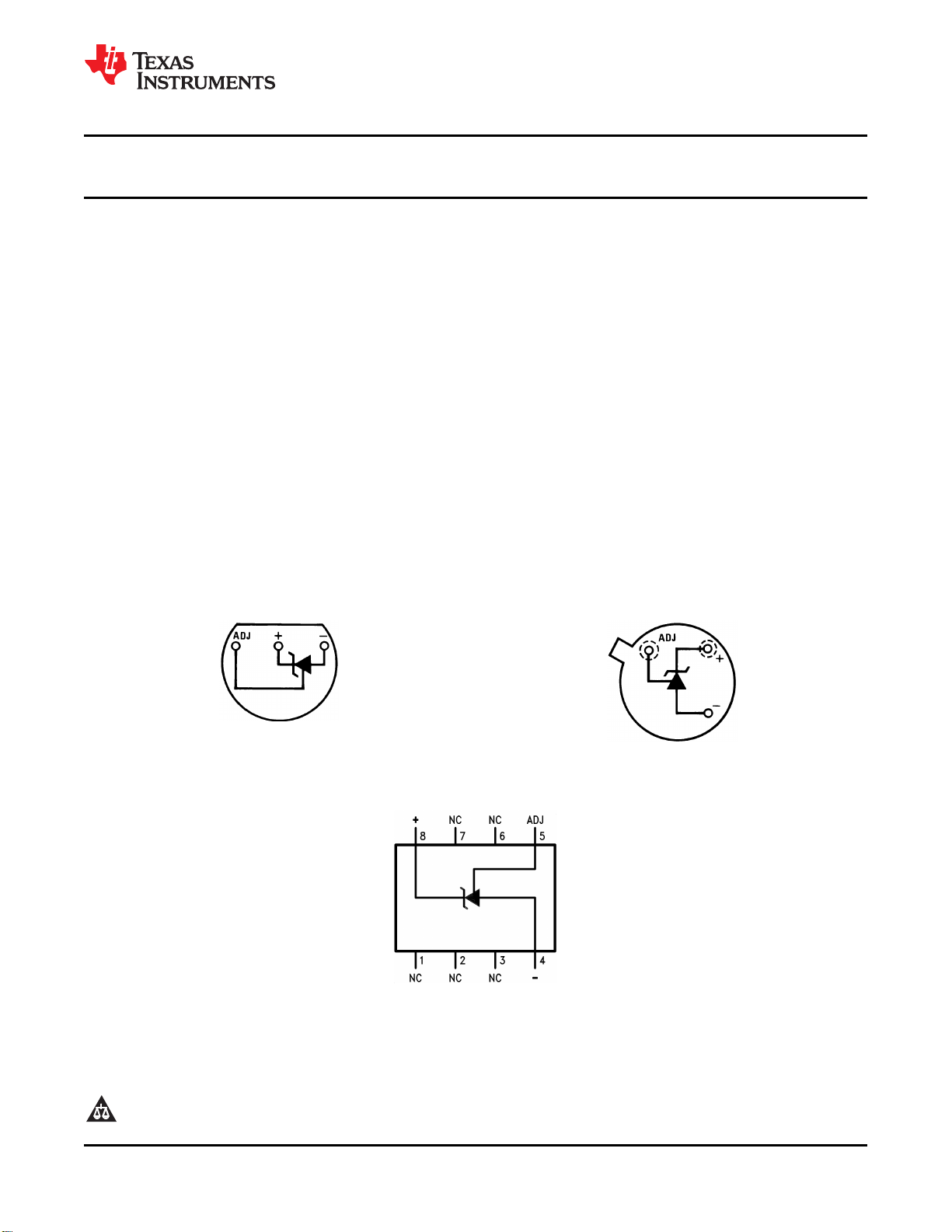

Connection Diagram
TO-92 Plastic Package TO Metal Can Package
Figure 1. Bottom View Figure 2. Bottom View
See Package Number LP See Package Number NDV
SOIC Package
Figure 3. Top View
See Package Number D
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2All trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date.
Copyright © 1998–2013, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
