SNVU450–July 2014
LM10692 Evaluation Module User's Guide
The LM10692 LLP36 Evaluation Board allows the user to test all the different features of the LM10692. It
is designed to interface with a Graphical User Interface (GUI) on a PC through a USB port. A
microcontroller is embedded on the board to provide the USB link to I2C communication to the LM10692
and to register the different flags and switches from/to the IC. It also provides input and output voltage
sensing for quick monitoring and diagnosis on the GUI.

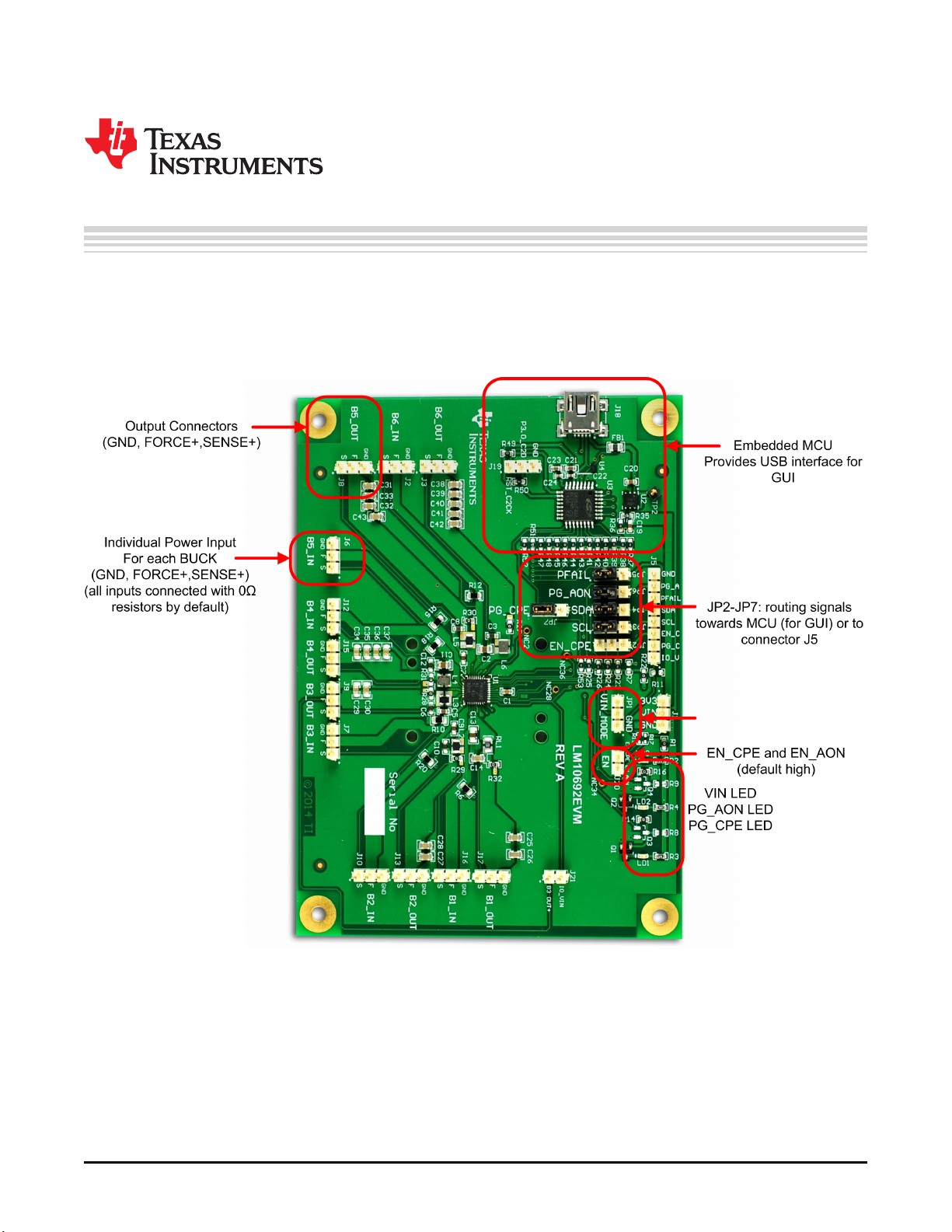

Figure 1. LM10692 Evaluation Board
