ISL62882EVAL2Z User Guide
Introduction
The ISL62882EVAL2Z evaluation board demonstrates the
performance of the ISL62882 multiphase synchronous-buck
PWM V
CORE
controller implementing Intel IMVP-6.5
protocol. The ISL62882 features Intersil's Robust Ripple
Regulator (R
3
) technology. An on-board dynamic-load
generator is included for evaluating the transient-load
response. It applies a 300µs pulse of approximately 25mΩ
load across V
O
and PGND.
Contents of this document include:
• Design Criteria
• Recommended Test Equipment
• Interface Connections
• Switch Descriptions
• DIP Switch Descriptions
• Jumper Descriptions
• Test Point Descriptions
• Evaluation Board Documentation
- Bill of materials
- Schematic
- Silk-screen plots
- Board layer plots
Recommended Equipment
• (QTY 1) Adjustable 25V, 10A Power Supply
• (QTY 1) Fixed 5V, 100mA Power Supply
• (QTY 1) Fixed 12V, 100mA Power Supply
• (QTY 1) Adjustable Constant Current Electronic Load
• (QTY 1) Digital Voltmeter
• (QTY 1) Four-Channel Oscilloscope
Interface Connections
•V
IN
: Input Voltage to the Power Stage
-J5: V
IN
Positive Power Input
-TP31: V
IN
Positive Voltage Sense
-J6: V
IN
Return Power Input
-TP32: V
IN
Return Voltage Sense
•V
O:
Regulated Output Voltage
- J11 and J12: V
O
Positive Power Output
- J13 and J14: V
O
Return Power Output
• +5V: +5V Input Voltage
- TP29: +5V Positive Input
- TP30: +5V Return Input
• +12V: Input Voltage for the Dynamic-load Generator
- TP3: 12V Positive Input
- TP2: 12V Return Input
Test Set-up

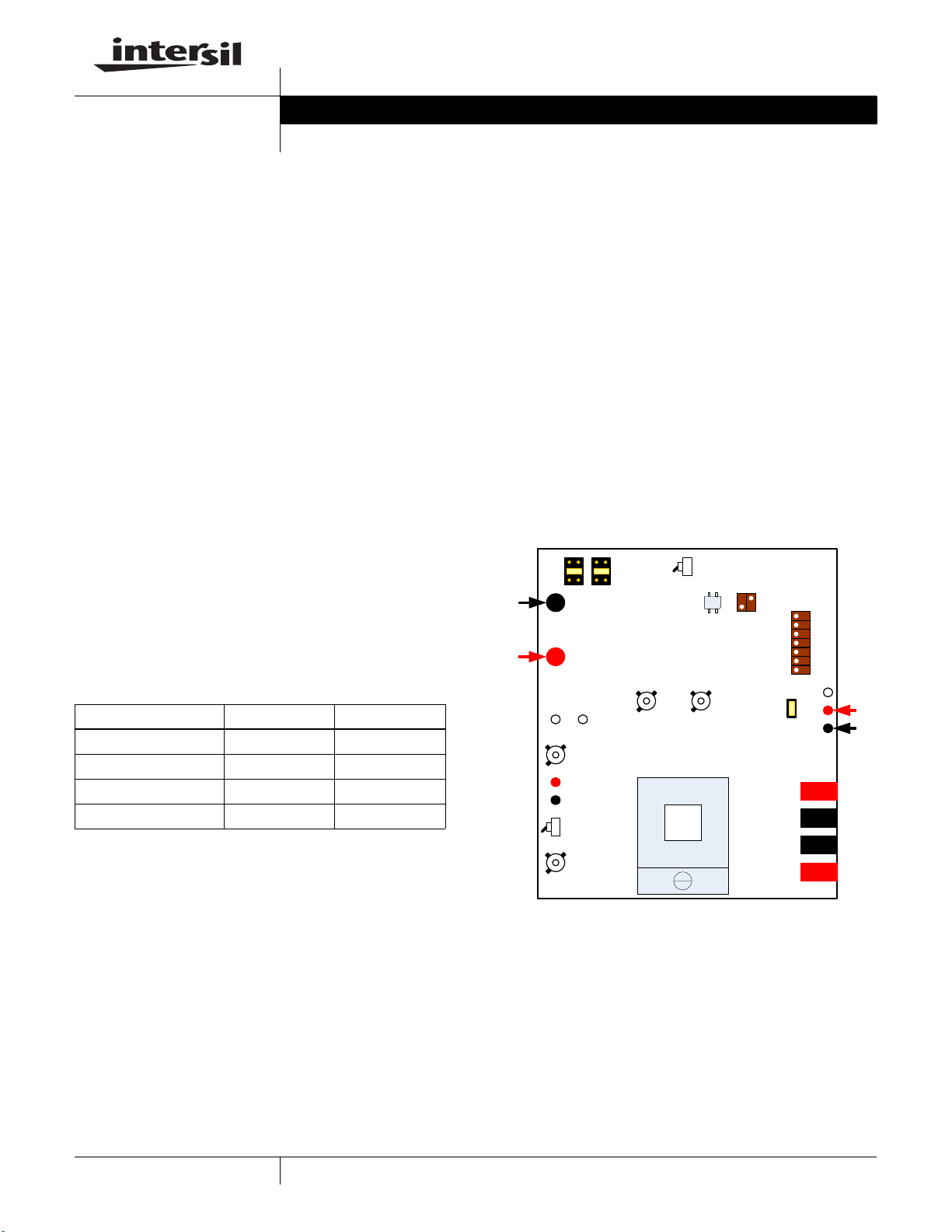

FIGURE 1. TEST SET-UP
Switch Descriptions
• S3: Enable
- OFF: Short the VR_ON pin to GND (disable PWM)
- ON: Allow the VR_ON pin to pull-up to +5V (enable
PWM)
• S5: Dynamic Load
- OFF: On-board dynamic load disabled
- ON: On-board dynamic load enabled
TABLE 1. DC/DC DESIGN CRITERIA
PARAMETER VALUE UNITS
V
IN
4.5 to 20 VDC
V
O
0 to 1.5 VDC
Full-load 60 ADC
PWM Frequency 300 kHz
10
U2
ISL62882 EVAL2Z
ON
OFF
0
1
TP37
TP29
TP30
J8J7
VID0
VID1
VID2
VID3
VID4
VID5
VID6
VIN
+
_
TP35 TP36
PHASE1 PHASE2VSSSENSEVCCSENSE
J10
VCORE
ON
OFF
S3
S2
TP3
TP2
5V
+
_
J12
VCORE
J11
VCORE
J14
PGND
J13
PGND
J1J2
S1
PSI#
DPRSLPVR
+3.3V
+5V
PGND
J6
PGND
J5
VIN
D1
J16
Application Note July 13, 2009
Author: Jia Wei
