ISL95820EVAL1Z Evaluation Board User Guide
Hardware Description
The ISL95820EVAL1Z evaluation board demonstrates the
performance of the ISL95820 4-phase voltage regulator for
Intel VR12.5 and VR12.6 CPUs. The ISL95820 features
Intersil's Robust Ripple Regulator R3 Technology™. An
on-board dynamic-load generator is included for evaluating the
transient-load response. It applies a 300µs pulse of
approximately 0.05/0.1load across V
CORE
and PGND.
Contents of this document include:
• Design criteria
• Recommended test equipment
• Interface connections
• Switch descriptions
• Photographs of the evaluation board and PMBus interface
module.
• Jumper and connector descriptions
• Test point descriptions
• Evaluation board documentation
- Bill of materials
-Schematic
- Silk-screen plots
- Board layer plots
Recommended Equipment
• (Qty. 1) Adjustable 20V, 15A power supply (for V
IN
)
• (Qty. 1) Fixed 5V, 100mA power supply (for VDD)
• (Qty. 1) Fixed 12V, 100mA power supply (for the
dynamic-load generator)
• (Qty. 1) Adjustable constant current electronic load
•(Qty. 1) Digital voltmeter
• (Qty. 1) Four-channel oscilloscope
Interface Connections
•V
IN
: Input voltage to the power stage
-J5: V
IN
positive power input
-TP18: V
IN
positive voltage sense
-J6: V
IN
return power input
- TP32: V
IN
return voltage sense
•CPU V
CORE
: CORE regulated output voltage
-J11 and J12: V
CORE
positive power output
- J13 and J14: V
CORE
return power output
• +5V: +5V input voltage
- TP29: +5V positive input
- TP16: +5V sense
- TP30: +5V return input
• +12V: Input voltage for the dynamic-load generator
- TP3: 12V positive input
-TP2: 12V return input
Switch Descriptions
•S3: Enable
- OFF: Short the VR_ON pin to GND (disable PWM)
- ON: Allow the VR_ON pin to pull-up to +5V (enable PWM)
• S2: Dynamic load for CPU
- OFF: On-board dynamic load disabled
-ON: On-board dynamic load enabled

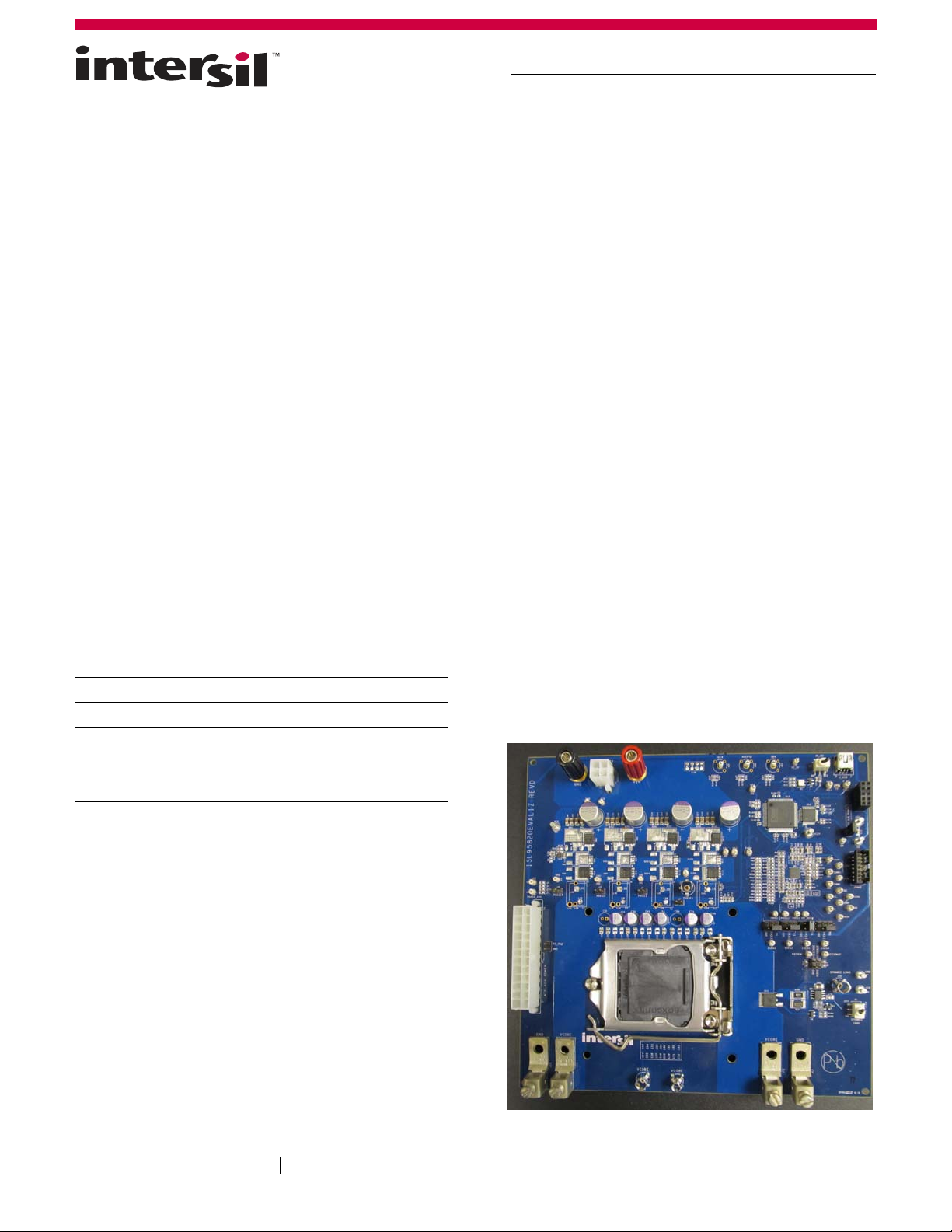

Evaluation Board Photograph
TABLE 1. DC/DC DESIGN CRITERIA
PARAMETER VALUE UNITS
V
IN
12 VDC
V
O
0 to 2.30 VDC
Full-load 100 ADC
PWM Frequency 300 kHz
