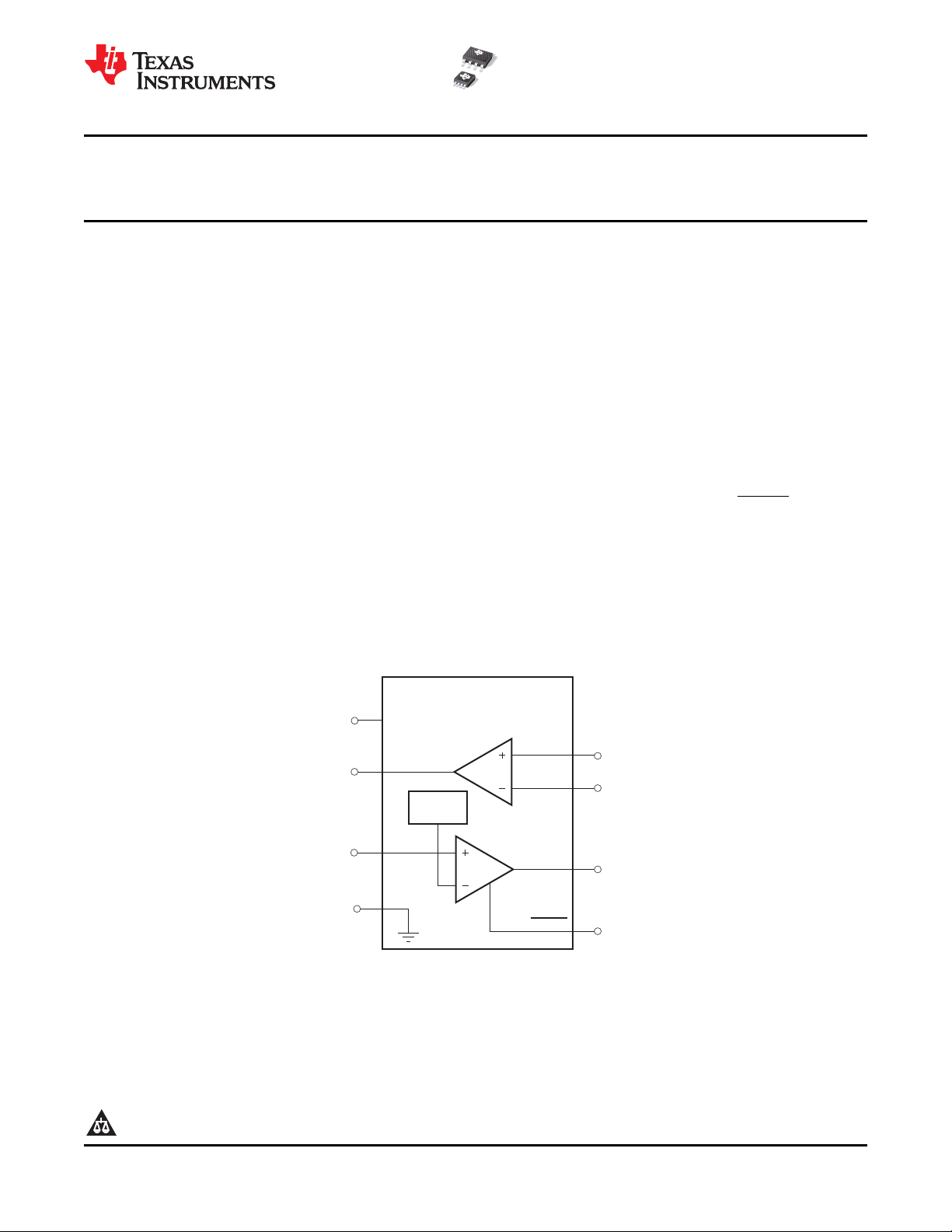

INA200
G
0.6V
Reference
Comparator
OUT
CMP
IN
CMP
OUT
V
IN-
V
IN+
INA200 (G = 20)
INA201 (G = 50)
INA202 (G = 100)
RESET
GND
V+
2
3
4
6
5
7
8
1
INA200
INA201
INA202
www.ti.com
SBOS374C –NOVEMBER 2006–REVISED OCTOBER 2010
High-Side Measurement Current-Shunt Monitor
with Open-Drain Comparator and Reference
Check for Samples: INA200, INA201, INA202
1
FEATURES
DESCRIPTION
• COMPLETE CURRENT SENSE SOLUTION
• 0.6V INTERNAL VOLTAGE REFERENCE
The INA200, INA201, and INA202 are high-side
current-shunt monitors with voltage output. The
• INTERNAL OPEN-DRAIN COMPARATOR
INA200–INA202 can sense drops across shunts at
• LATCHING CAPABILITY ON COMPARATOR
common-mode voltages from –16V to 80V. The
• COMMON-MODE RANGE: –16V to +80V
INA200–INA202 are available with three output
voltage scales: 20V/V, 50V/V, and 100V/V, with up to
• HIGH ACCURACY: 3.5% MAX ERROR OVER
500kHz bandwidth.
TEMPERATURE
The INA200, INA201, and INA202 also incorporate an
• BANDWIDTH: 500kHz (INA200)
open-drain comparator and internal reference
• QUIESCENT CURRENT: 1800mA (max)
providing a 0.6V threshold. External dividers are used
• PACKAGES: SO-8, MSOP-8
to set the current trip point. The comparator includes
a latching capability, which can be made transparent
APPLICATIONS
by grounding (or leaving open) the RESET pin.
• NOTEBOOK COMPUTERS
The INA200, INA201, and INA202 operate from a
• CELL PHONES
single +2.7V to +18V supply, drawing a maximum of
• TELECOM EQUIPMENT
1800mA of supply current. Package options include
the very small MSOP-8 and the SO-8. All versions
• AUTOMOTIVE
are specified over the extended operating
• POWER MANAGEMENT
temperature range of –40°C to +125°C.
• BATTERY CHARGERS
• WELDING EQUIPMENT
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Copyright © 2006–2010, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
