EVAL-ADPD103Z-GEN User Guide
UG-947
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the ADPD103 Photometric Front End
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 23
FEATURES
Supports the detection of UART
UDP transfer capability
ADPD103 full configuration
Register level
Parameter level
Graph view
Time graph
Frequency graph
EVALUATION KIT CONTENTS
EVAL-ADPD103Z-GEN evaluation board
Mini USB cable
ADDITIONAL EQUIPMENT NEEDED
PC running Windows 7 operating system
ADDITIONAL SOFTWARE NEEDED
.NetFramework 4.0
ONLINE RESOURCES
ADPD103 data sheet
GENERAL DESCRIPTION
The E VA L -ADPD103Z-GEN evaluation board provides the
user with a simple means of connecting their own optics to the
ADPD103 photometric front end to evaluate the ADPD103 in a
number of different applications, from vital signs monitoring to
industrial sensing. The evaluation board includes the OpenMarket
WaveTo ol graphical user interface (GUI) that provides the user
with low level and high level configurability, real-time frequency
and time domain analysis, and User Datagram Protocol (UDP)
transfer capability so that the evaluation board can easily interface
to the user’s development system.
The USB port powers the E VA L -ADPD103Z-GEN. On-board
voltage regulators provide voltage supplies for the ADPD103,
ADuCM360, and FTDI Chip FT232. There are on-board regulators
that provide 3.3 V and 4.3 V LED supplies, as well as a selectable
option to add an external LED supply. The evaluation board
provides an LED and photodiode (PD) for a finger photo-
plethysmography (PPG) measurement that is useful for a quick
functionality check of the evaluation system.
The schematic and board layout, as well as the board itself,
indicate signal names for easy identification. For additional
information on the functionality of the ADPD103, refer to the
ADPD103 datasheet.

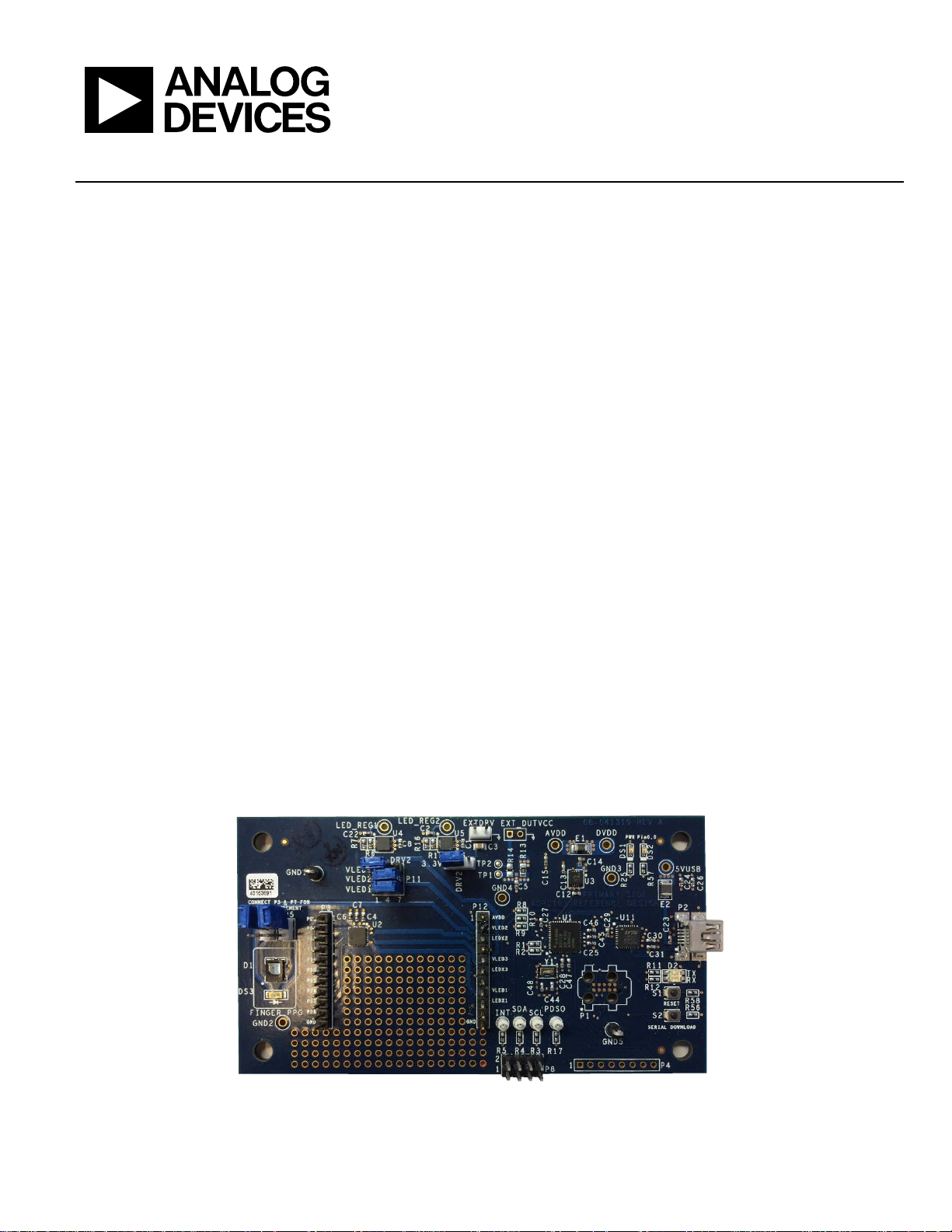

EVALUATION BOARD PHOTOGRAPH
14321-001
F
igure 1. EVAL-ADPD103Z-GEN Evaluation Board
