EVAL-ADG5243FEBZ User Guide
UG-894
One Technology Way • P. O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Te l: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for the ADG5243F, Overvoltage Protected Triple SPDT Switch
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Rev. 0 | Page 1 of 12
FEATURES
Supply voltages
Dual supply: ±5 V to ±22 V
Single supply: 8 V to 44 V
Protected against overvoltage on source pins
Signal voltages up to −55 V and +55 V
LED for visual overvoltage indication
Parallel interface compatible with 3 V logic
On-board LDO regulator for digital supply and control,
if required
EVALUATION KIT CONTENTS
EVAL-ADG5243FEBZ evaluation board
DOCUMENTS NEEDED
ADG5243F data sheet
EVAL-ADG5243FEBZ user guide
EQUIPMENT NEEDED
DC voltage source
±22 V for dual supply
44 V for single supply
Optional digital voltage source: 3 V to 5 V
Analog signal source
Method to measure voltage, such as a digital multimeter (DMM)
GENERAL DESCRIPTION
The EVAL-ADG5243FEBZ is the evaluation board for the
ADG5243F, which features three independently controlled
single-pole/double-throw (SPDT) switches. The ADG5243F has
overvoltage detection and protection circuitry on the source
pins and is protected against signals up to −55 V and +55 V in
both the powered and unpowered states.

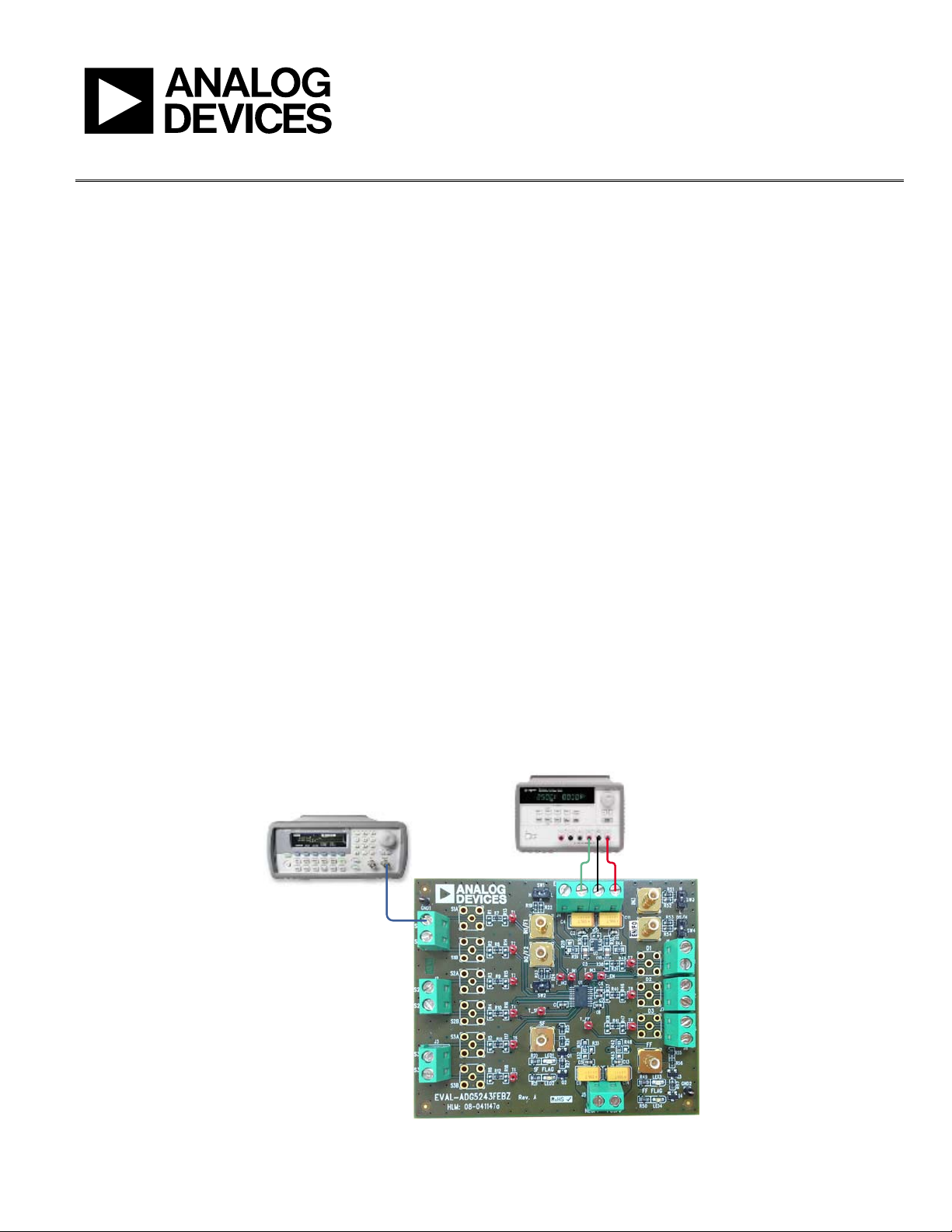

Figure 1 shows the EVAL-ADG5243FEBZ in a typical evaluation
setup. The ADG5243F is soldered to the center of the evaluation
board, and screw terminals are provided to connect to each of
the source and drain pins. Three screw terminals power the
device, and a fourth terminal provides a user defined digital
voltage, if required. Alternatively, a low dropout (LDO) regulator
is provided for 5 V digital voltage control and to supply the LED,
which is mounted to provide visual indication of the fault status
of the switch.
Full specifications on the ADG5243F are available in the
product data sheet, which should be consulted in conjunction
with this user guide when using the evaluation board.
EVALUATION BOARD CONNECTION DIAGRAM
13693-001
POWER SUPPLY
SIGNAL GENERATOR
Figure 1. EVAL-ADG5243FEBZ, Power Supply, and Signal Generator
