EL5126
8-Channel TFT-LCD Reference Voltage Generator
DATASHEET
The EL5126 is designed to produce the reference voltages
required in TFT-LCD applications. Each output is
programmed to the required voltage with 10 bits of
resolution. Reference pins determine the high and low
voltages of the output range, which are capable of swinging
to either supply rail. Programming of each output is
performed using the serial interface.
A number of the EL5126 can be stacked for applications
requiring more than 8 outputs. The reference inputs can be
tied to the rails, enabling each part to output the full voltage
range, or alternatively, they can be connected to external
resistors to split the output range and enable finer
resolutions of the outputs.
The EL5126 has 8 outputs and is available in a 32 Ld QFN
package. It is specified for operation over the full -40°C to
+85°C temperature range.
Features
• 8-channel reference outputs
• Accuracy of ±0.1%
• Supply voltage of 4.5V to 16.5V
• Digital supply 3.3V to 5V
• Low supply current of 10mA
• Rail-to-rail capability
•I
2
C control interface
Applications
• TFT-LCD drive circuits
• Reference voltage generators

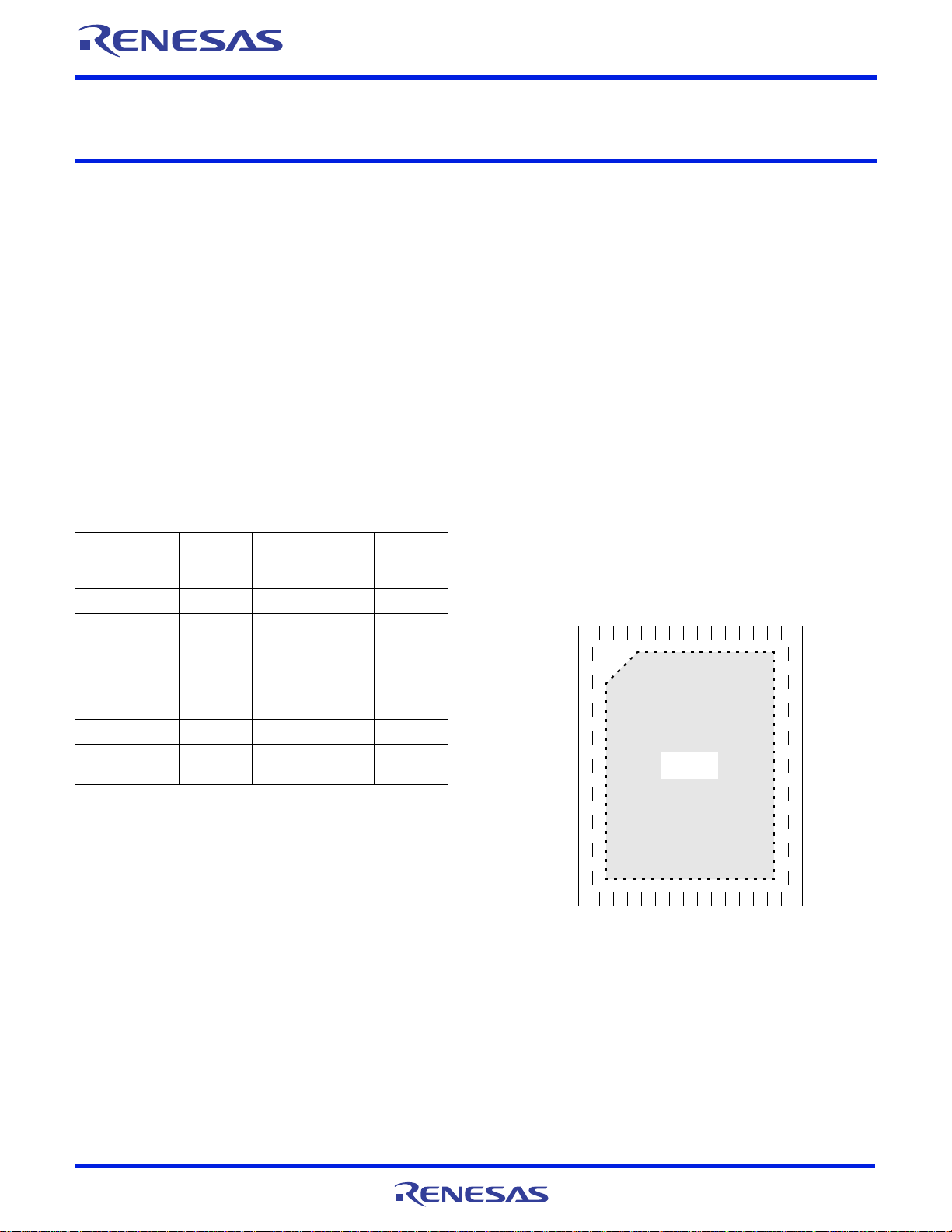

Pinout
EL5126
(32 LD 5X6 QFN)
TOP VIEW
Ordering Information
PART
NUMBER
PART
MARKING PACKAGE
TAPE
AND
REEL PKG. NO.
EL5126CL 5126CL 32 Ld QFN - MDP0046
EL5126CLZ
(Note)
5126CLZ 32 Ld QFN
(Pb-free)
- MDP0046
EL5126CL-T7 5126CL 32 Ld QFN 7” MDP0046
EL5126CLZ-T7
(Note)
5126CLZ 32 Ld QFN
(Pb-free)
7” MDP0046
EL5126CL-T13 5126CL 32 Ld QFN 13” MDP0046
EL5126CLZ-T13
(Note)
5126CLZ 32 Ld QFN
(Pb-free)
13” MDP0046
NOTE: Intersil Pb-free plus anneal products employ special Pb-free
material sets; molding compounds/die attach materials and 100%
matte tin plate termination finish, which are RoHS compliant and
compatible with both SnPb and Pb-free soldering operations. Intersil
Pb-free products are MSL classified at Pb-free peak reflow
temperatures that meet or exceed the Pb-free requirements of
IPC/JEDEC J STD-020.
25
24
23
22
21
20
19
32
31
30
29
28
10
11
12
13
14
1
2
3
4
5
6
7
THERMAL
PAD
VS
VSD
VS
REFH
REFL
AGND
CAP
OUTA
OUTB
OUTC
OUTD
DGND
OUTE
OUTF
OSC_SEL
OSC
SDA
SCL
STD/REG
A0
DGND
NC
DGND
NC
8
9
18
17
15 27
16 26
OUTG
OUTH
NC
NC
NC
VS
FILTER
NC
THERMAL
PAD
