DRV830x Rev D. Hardware Quick Start Guide
Version 1.0.5 Motor Solutions

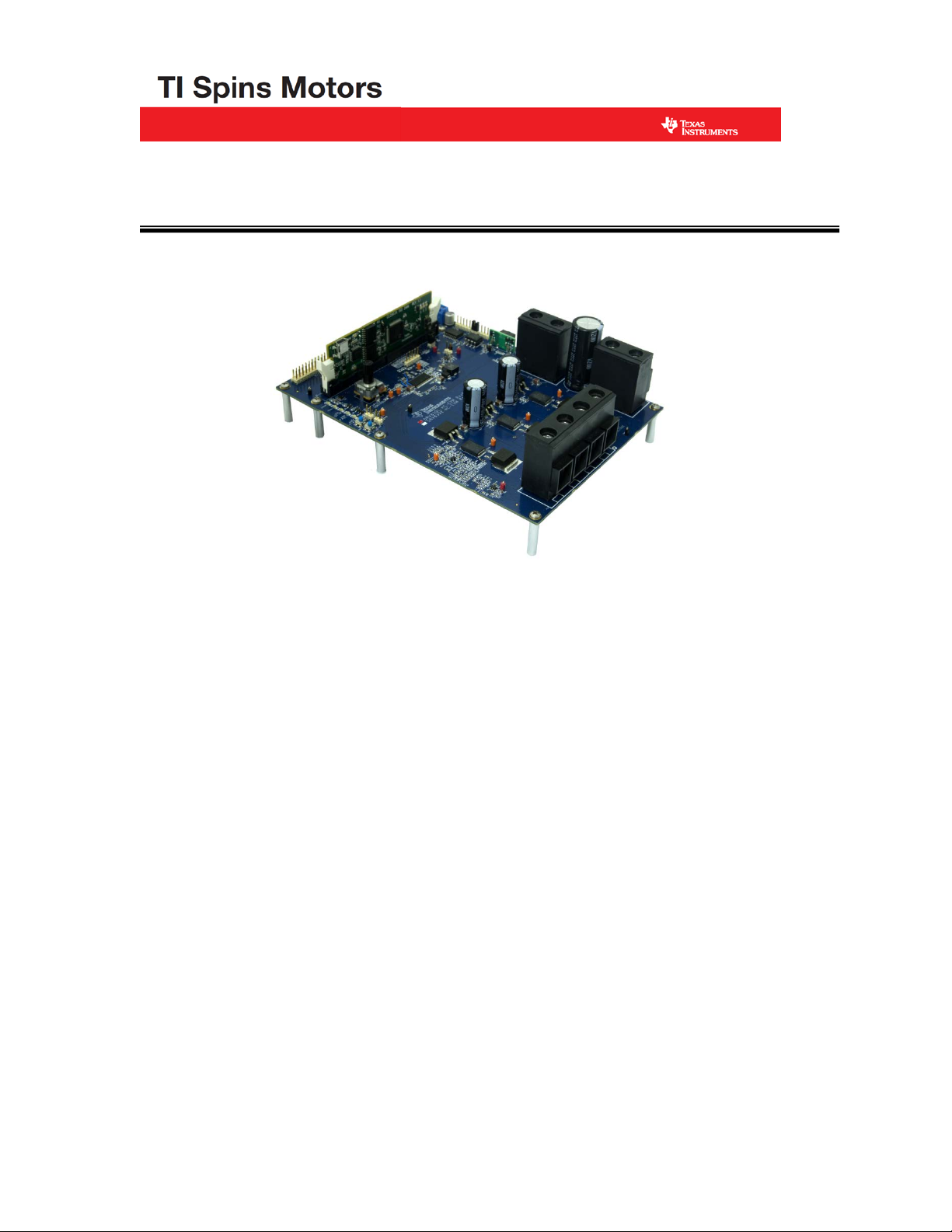

Fig 1: DRV830x EVM with controlCARD
Abstract
The Low Voltage, High Current Motor Drive EVM (DRV8301, Figure 1), provides a great way to
learn and experiment with digital control of sub 60 volt three-phase motors to increase efficiency
of operation. The board is available in two configurations, the DRV8301 or the DRV8302. This
document goes over the typical kit contents and hardware details, and explains the functions and
locations of jumpers and connectors present on the board. This document supersedes all the
documents available for the kit.
